Features and Benefits.

• Application-neutral due to using all four pairs of RJ45 connectors
• IP68 rated ruggedized design
• Additional latch protection
• Category 6
• Certified by a vendor-independent and impartial test lab (GHMT AG)
• Supports Power over Ethernet (PoE / PoE+/ PoE++) IEEE 802.3bt-2018 performance (4PPoE) Ready for new applications powered on 4 pairs up to 90W

General Specifications.

• Area/range of application 10Base-T; 100Base-TX; 1000Base-T/ATMLAN1.2Gbit/s
• Category 6
• Cable type U/UTP
• Halogen-free No
• Legacy Part Number VOL-6UP
• Brand Everon®
• Third Party Certificate Yes (www.corning.com/emea/en/certificates)

Standards.

• Flame retardance Flame retardant according to IEC 60332-1-2 (single cable)
• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Design And Test Criteria Compliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at and
  IEEE 802.3bt
• Halogen content test Low Smoke to IEC 61034
• Level of corrosion Non-corrosive according to IEC 60754-2

Environmental Conditions.

• Temperature range, installation 0°C to 50°C
• Temperature range, operation-20°C to 60°C
• Transport and indoor storage Dry environment, no direct sunlight, room temperature ≤ 40 °C

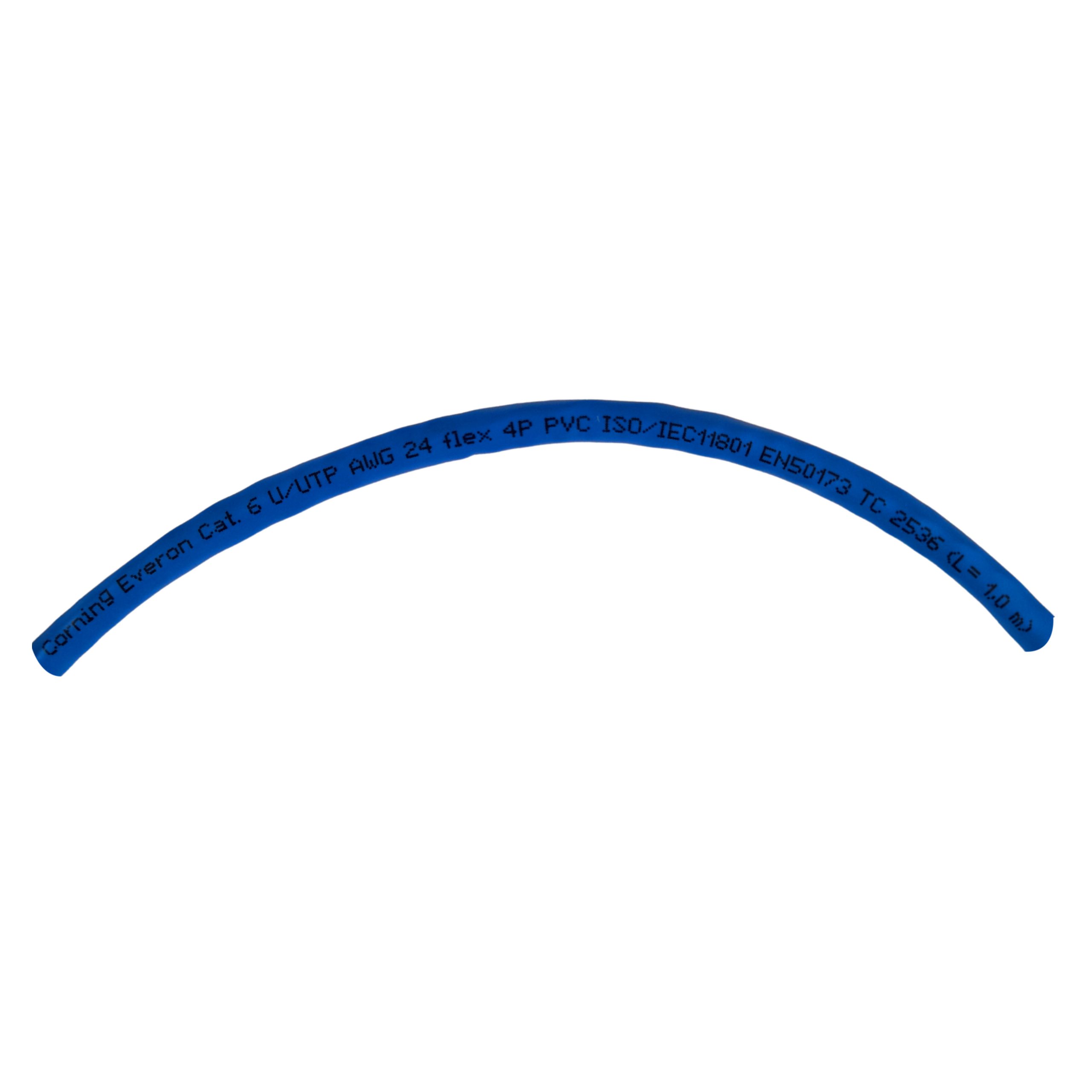

Cable Design.

• Twisting 2 cores to a pair
• Outer jacket material Polyvinyl Chloride (PVC)
• Outer jacket colour Blue

Mechanical Specifications.

• Fire load 0.35MJ/m
• Min. bend radius installation 43mm

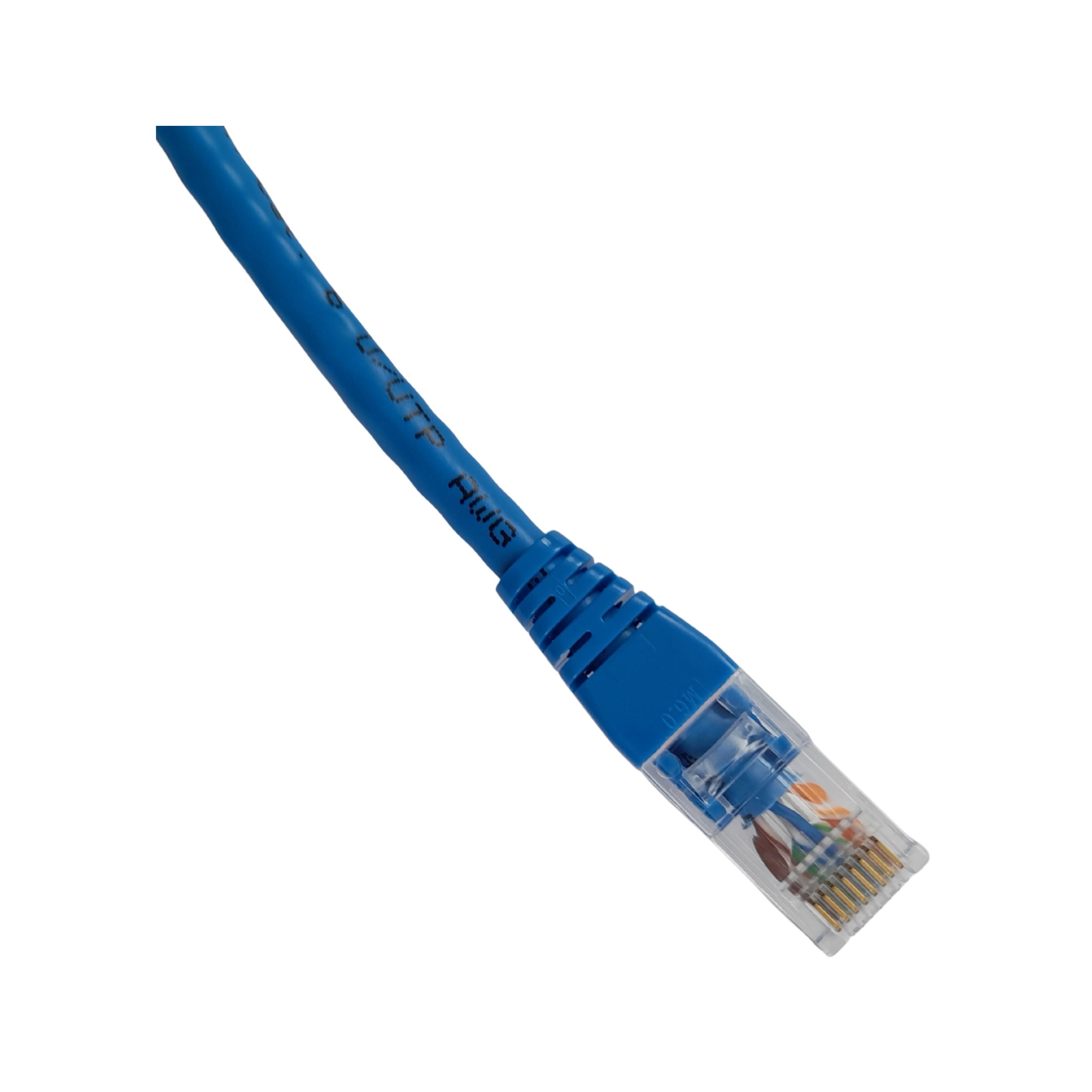

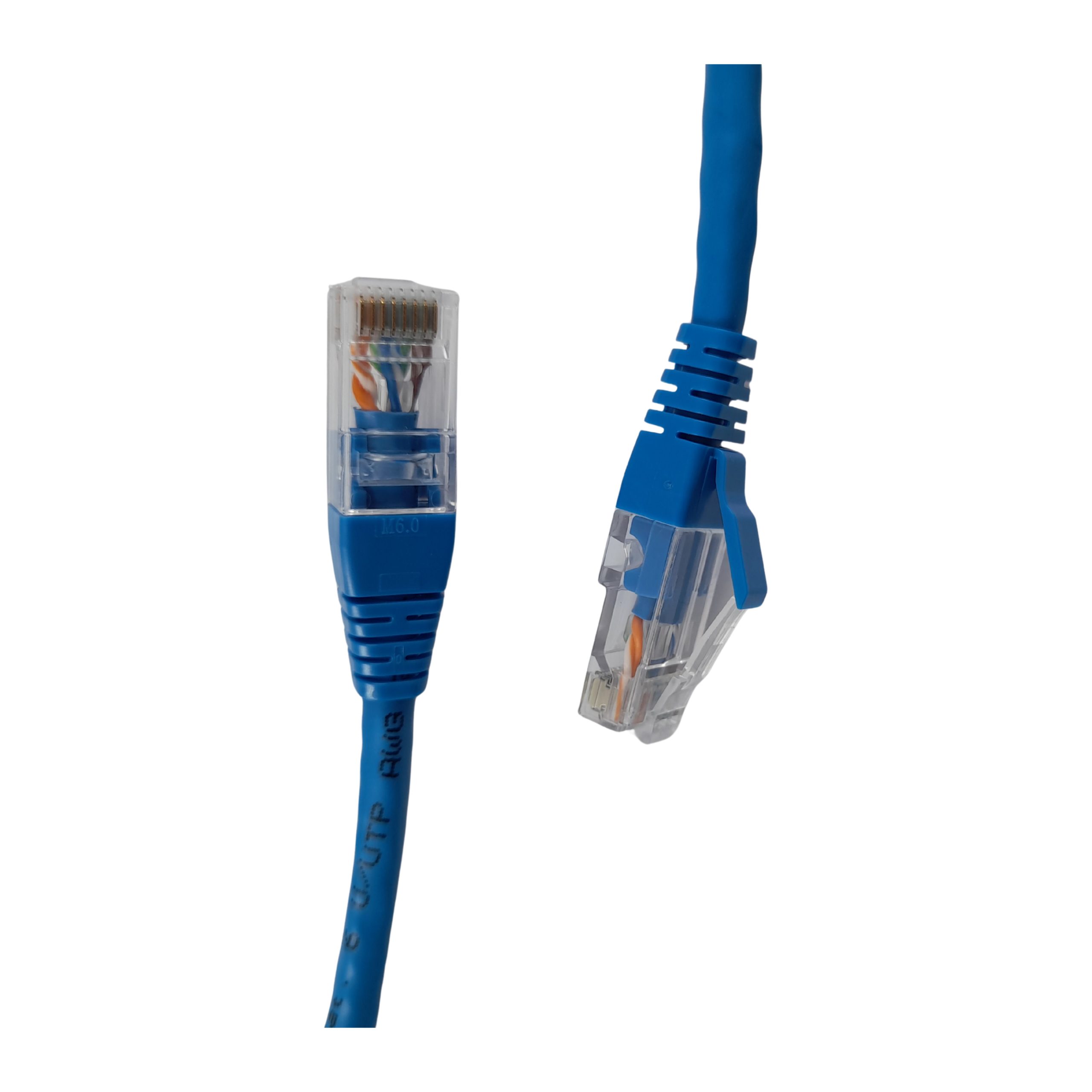

Specifications – Connector A.

• Connector type RJ45 – 8/8
• Durability Cycles 750N/A
• Connector Material Pin gold plated 50µ inch

Specifications – Connector B.

• Connector type RJ45 – 8/8
• Durability Cycles 750N/A
• Connector Material Pin gold plated 50µ inch

Electrical Specifications.

• Mutual capacity 1600pF/km
• Max. loop resistance 94.2Ω/km
• DC resistance unbalance 5%
• Insulation resistance 500MΩ*km
• Impedance Zo at 1-100 MHz 100 Ω ± 5% at 100 MHz
• Surface transfer impedance 100N/A
• Part Number
  CCAVME-D2002-A010-C0
