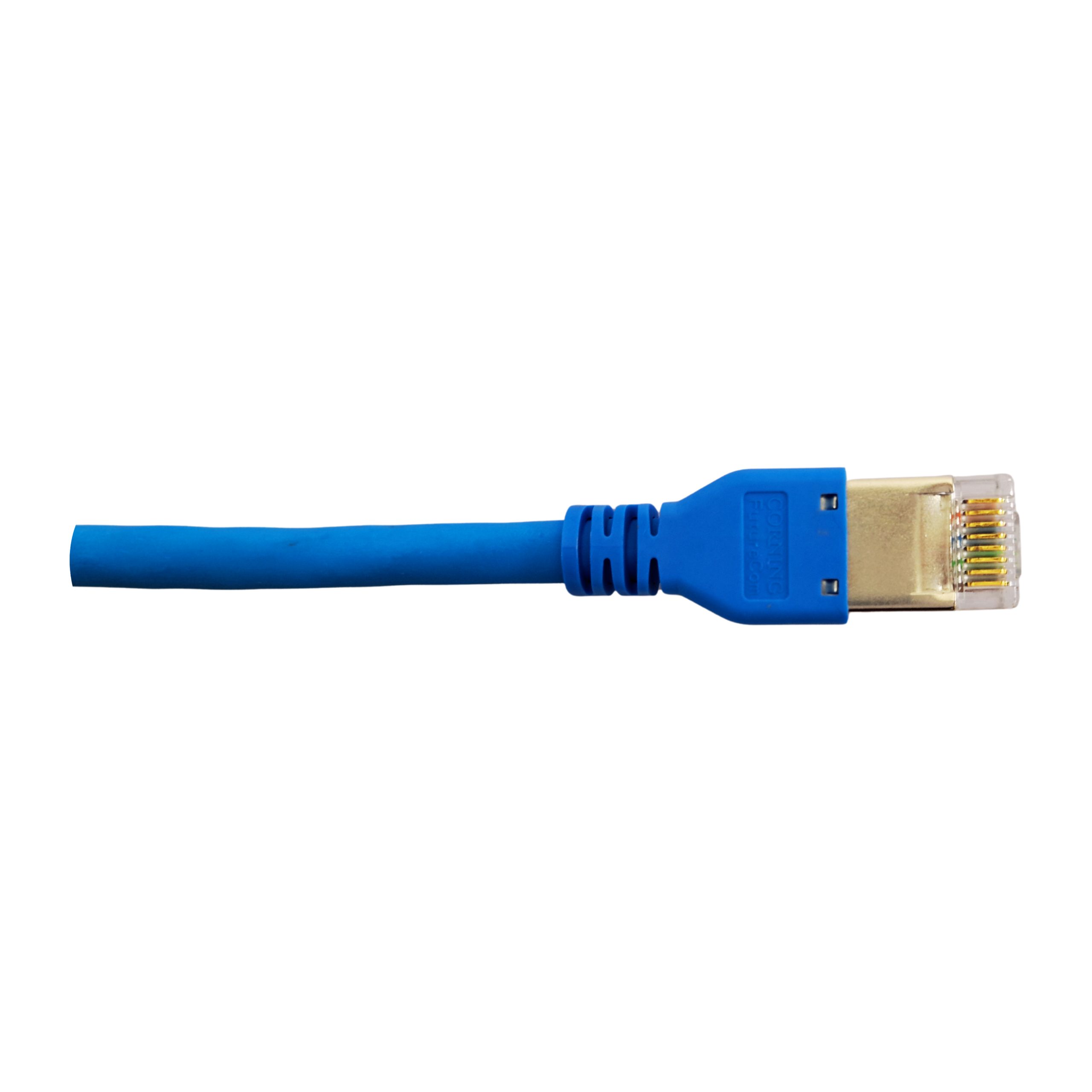

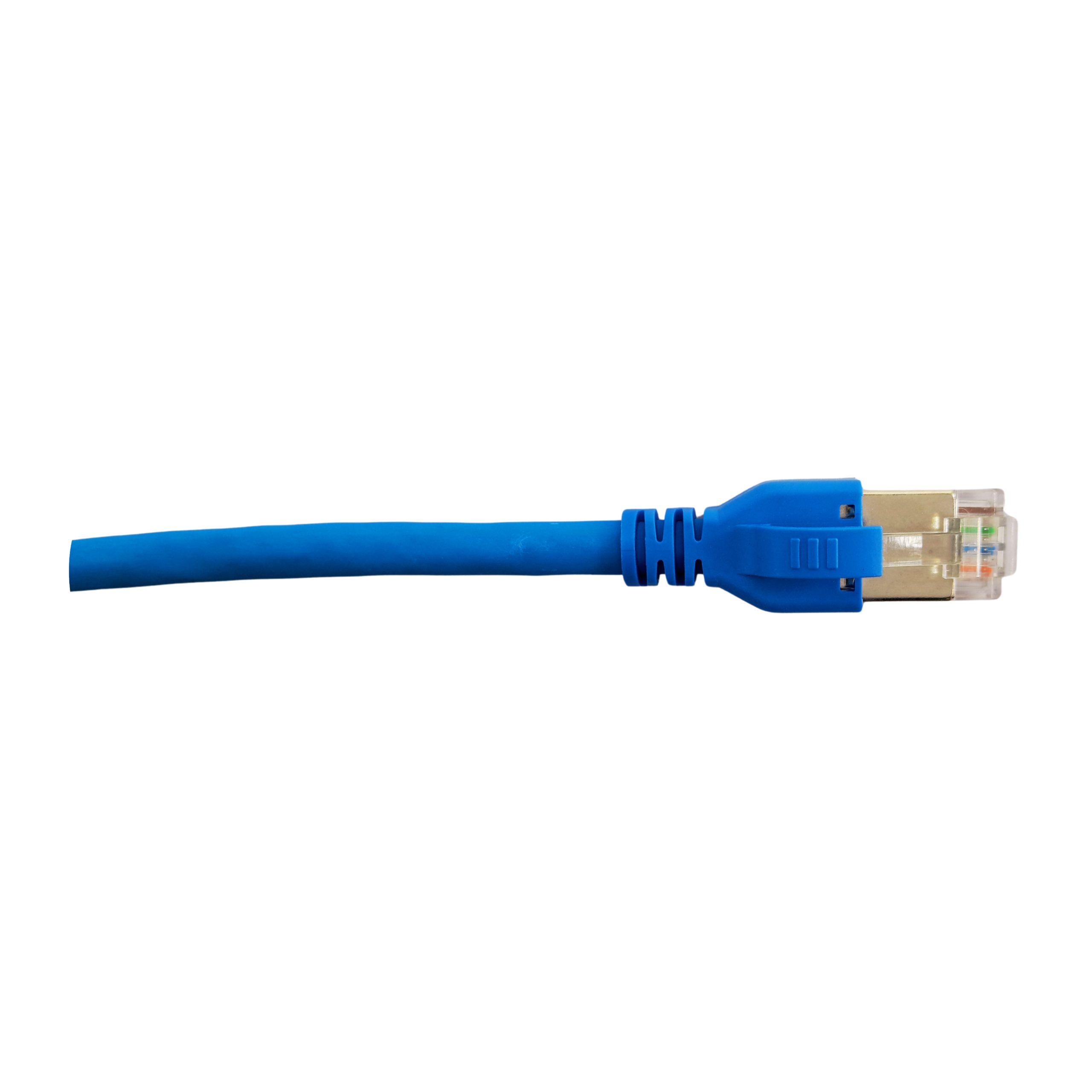

Everon® Copper Datacom Class EA Patch Cord, 2xRJ45, Cat.6A, S/FTP LSZH AWG 26 blue, 3 m
Everon® Copper Datacom Class EA Patch Cord, 2xRJ45, Cat.6A, S/FTP LSZH AWG 26 blue, 3 m - Image 2
Everon® Copper Datacom Class EA Patch Cord, 2xRJ45, Cat.6A, S/FTP LSZH AWG 26 blue, 3 m - Image 3
Everon® Copper Datacom Class EA Patch Cord, 2xRJ45, Cat.6A, S/FTP LSZH AWG 26 blue, 3 m - Image 4

Rating & Reviews

Overall Product Rating

0.0/5
★ 5
★ 4
★ 3
★ 2
★ 1
★ ★ ★ ★ ★ Tap to rate

Everon® Copper Datacom Class EA Patch Cord, 2xRJ45, Cat.6A, S/FTP LSZH AWG 26 blue, 3 m

SKU: CCAAGB-G2002-A030-C0

₨4,448

General Specifications
  • Area/Range of Application 1000Base-T; 2,5GBase-T; 5GBase-T; 10GBase–T/FDDI; ATM
  • Category 6A
  • Cable Type S/FTP
  • Halogen-free Yes
  • Brand Everon®
  • Third Party Certificate Yes (www.corning.com/emea/en/certificates)
Standards
  • Flame Retardance Flame retardant according to IEC 60332-1-2 (single cable)
  • RoHS Free of hazardous substances according to RoHS 2011/65/EU
  • Design and Test Criteria Compliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at and
    IEEE 802.3b
  • Halogen content test Low smoke according to IEC 61034
  • Level of corrosion Non-corrosive according to IEC 60754-2
Environmental Conditions
  • Temperature Range, Installation 0°C to 50°C
  • Temperature Range, Operation-20°C to 60°C
  • Transport and Indoor Storage Dry environment, no direct sunlight, room temperature ≤ 40 °C

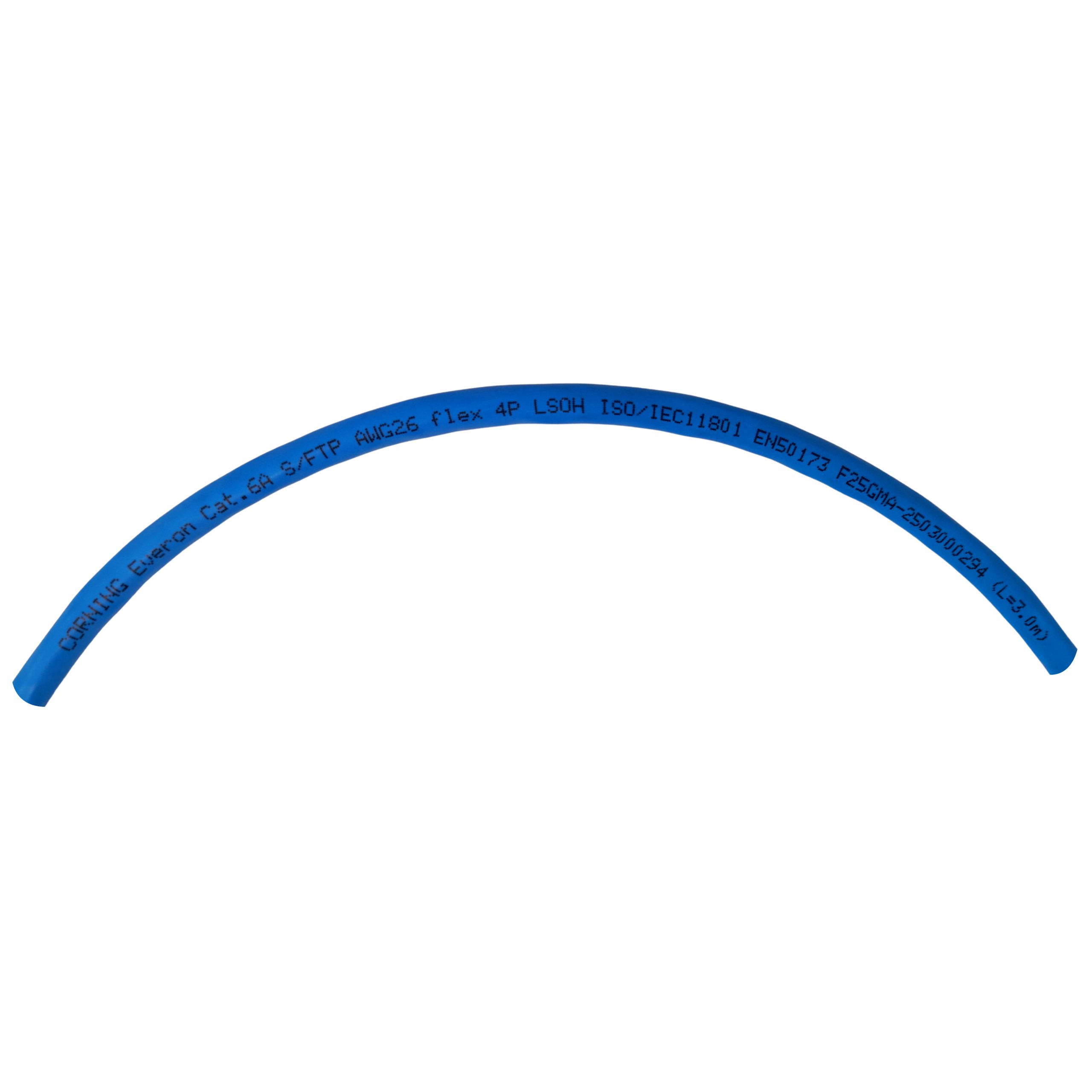

Cable Design
  • Conductor Insulation Halogen-free foam-skin material
  • Twisting 2 cores to a pair
  • Pair screen Al-laminated foil around each pair
  • Overall screen Copper braid, tinned
  • Outer Jacket Material LSZH/FRNC
  • Outer Jacket Color Blue
  • Outer Diameter 5.9mm
Specifications – Connector A
  • Connector Type RJ45 – 8/8
  • Durability Cycles 750N/A
  • Connector Material Pin gold plated 50µ inch
Specifications – Connector B
  • Connector Type RJ45 – 8/8
  • Durability Cycles 750N/A
  • Connector Material Pin gold plated 50µ inch





Product Description

DESCRIPTION

The application-neutral Everon® Copper Datacom category 6A patch cords have four individual foil-shielded pairs (PiMF) and an additional braid shield (S/FTP). They are assembled with a shielded RJ45 connectors on each end. The zero halogen patch cords (LSZH) are non-corrosive according to IEC 60754-2 (FRNC), low smoke according to IEC 61034 and flame retardant according to IEC 60332-1. Everon Copper Datacom CCAAGB patch cords provide additional latch protection. They are available in various lengths and colours.

Features and Benefits
  • Application-neutral due to using all four pairs of RJ45
    connectors
  • Minimum surface transfer impedance of cable (<10 mΩ/m
    at 10 MHz)
  • Outstanding transmission characteristics according to
    10GBase-T
  • Additional latch protection
  • Category 6A
  • PVP Certificate
  • Supports Power over Ethernet (PoE / PoE+/ PoE++). IEEE
    802.3bt-2018 performance (4PPoE) Ready for new
    applications powered on 4 pairs up to 90W
