General Specifications
- Area/range of application 1000Base-T; 2,5GBase-T; 5GBase-T; 10GBase–T/FDDI; ATM
- Category 6A
- Cable type U/UTP
- Halogen-free Yes
- Legacy Part Number VOL-6AUL
- Brand Everon®
- Third Party Certificate Yes (www.corning.com/emea/en/certificates)
Standards
- Flame retardance Flame retardant according to IEC 60332-1-2 (single cable)
- RoHS Free of hazardous substances according to RoHS 2011/65/EU
- Design And Test Criteria Compliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at and
IEEE 802.3bt
- Halogen content test Low Smoke to IEC 61034
- Level of corrosion Non-corrosive according to IEC 60754-2
Environmental Conditions
- Temperature range, installation 0°C to 50°C
- Temperature range, operation-20°C to 60°C
- Transport and indoor storage Dry environment, no direct sunlight, room temperature ≤ 40 °C

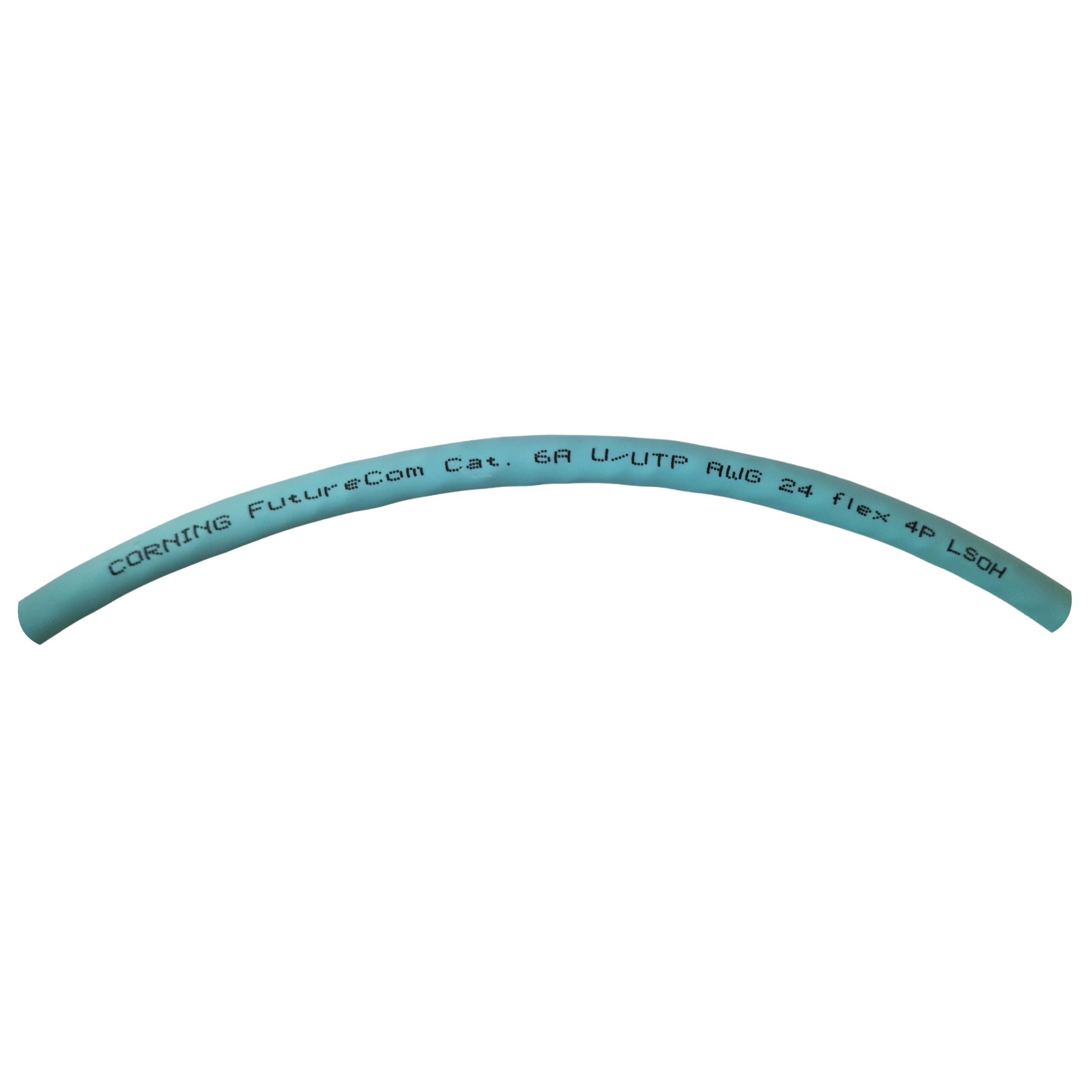

Cable Design
Conductor insulation Halogen-free foam-skin material
Twisting 2 cores to a pair
Outer jacket material LSZH/FRNC
Outer jacket colour Turquoise

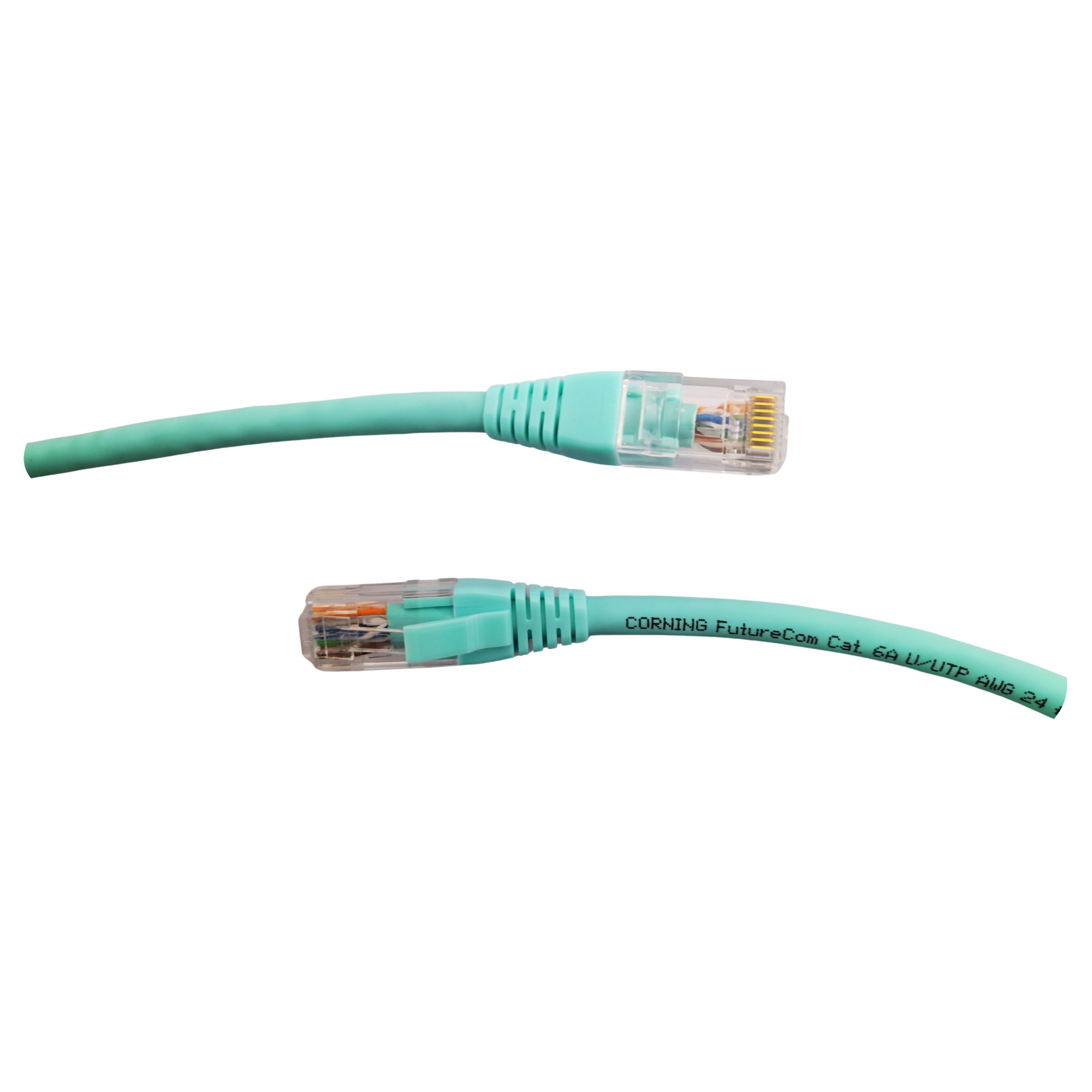

Specifications – Connector A
- Connector type RJ45 – 8/8
- Durability Cycles 750N/A
- Connector Material Pin gold plated 50µ inch
Specifications – Connector B
- Connector type RJ45 – 8/8
- Durability Cycles 750N/A
- Connector Material Pin gold plated 50µ inch
