Everon® Copper Datacom F/FTP 550/23, Category 6A, LSZH™/FRNC, Dca 4P, Blue

SKU: CCXEDA-DD047-C001-L6

₨321,984

General Specifications.
  • Category 6A
  • Cable type F/FTP
  • Halogen-free Yes
  • Construction Simplex, 4P
  • Reaction to Fire Dca-s1, d1, a1
  • Brand Everon®
Standards.
  • RoHS Free of hazardous substances according to RoHS 2011/65/EU.
  • Approvals and Listings IEC 61156-5, EN 50288-10-1, ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-C.2, IEC 60304.
  • Design And Test Criteria Tested and approved for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W.
  • Flame propagation test IEC 60332-1; IEC 60332-3-24.
  • Smoke density IEC 61034-2.
  • Halogen content test Zero Halogen to IEC 60754-1.
  • Level of corrosion Non-corrosive according to IEC 60754-.
Environmental Conditions.
  • Temperature range, installation 0°C to 50°C.
  • Temperature range, operation-20°C to 60°C.
Cable Design.
  • Conductor Copper Wire, AWG 23/1.
  • Conductor insulation Halogen-free foam-skin material.
  • Twisting 2 cores to a pair.
  • Outer jacket material LSZH/FRNC.
  • Outer jacket colour Blue.
Mechanical Characteristics.
  • Fire load 667MJ/km.
  • Nominal outer diameter 6.4mm.
  • Min. bend radius installation 8x Cable-Ø.
  • Maximum tensile strength 145N.
Electrical Characteristics.
  • Conductor resistance unbalance 1%.
  • Delay skew 9ns/100 m.
  • Max. loop resistance 190Ω/km.
  • Propagation delay 420ns/100 m.
  • Voltage rating Less than 75 V DC max and less than 50 V ACC max.
  • Propagation velocity at >10 MHz (NVP*c) 78%.
  • Coupling attenuation 70dB.
  • Segregation Class c.
  • Insulation Resistance > 5000 MΩ*km.



Product Description

DESCRIPTION.

The Everon® Copper Datacom F/FTP 550/23 cable is designed up to 550MHz and its transmission characteristics exceed Category 6A specifications according to EN50288-10-1 IEC 61156-5.
High system margins for the complete link according to the last version of ISO/IEC 11801 and EN 50173 (Series) will be achieved by using corresponding hardware together with this highend copper cable. Due to the very low delay skew between the pairs these FutureCom cables are especially suitable for Gigabit Ethernet and also for transmission of digital data for future applications up to 10 Gigabit Ethernet according to IEEE 802.3an. The cable has a streamlined construction and low weight. Overall shielding with with a Allaminated foil and each twisted pair is individually shielded with a Allaminated foil (F/FTP). The cable satisfies Class B interference radiation standards according to EN 55022, as well as immunity according to EN 55024, which enables the realization of CE-compatible networks.

Features and Benefits.
  • F/FTP 550/23 cable specified up to 550 MHz.
  • Fullfill the requirements of the standarts IEC 61156-5; EN 50288-10-1.
  • Suitable for Classe D to E according to ISO/IEC 11801. EN50173 and 10 Gigabit Ethernet according to IEEE 802.3an.
  • Tested and approved for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W.
  • Low smoke and halogen-free (LSZH).

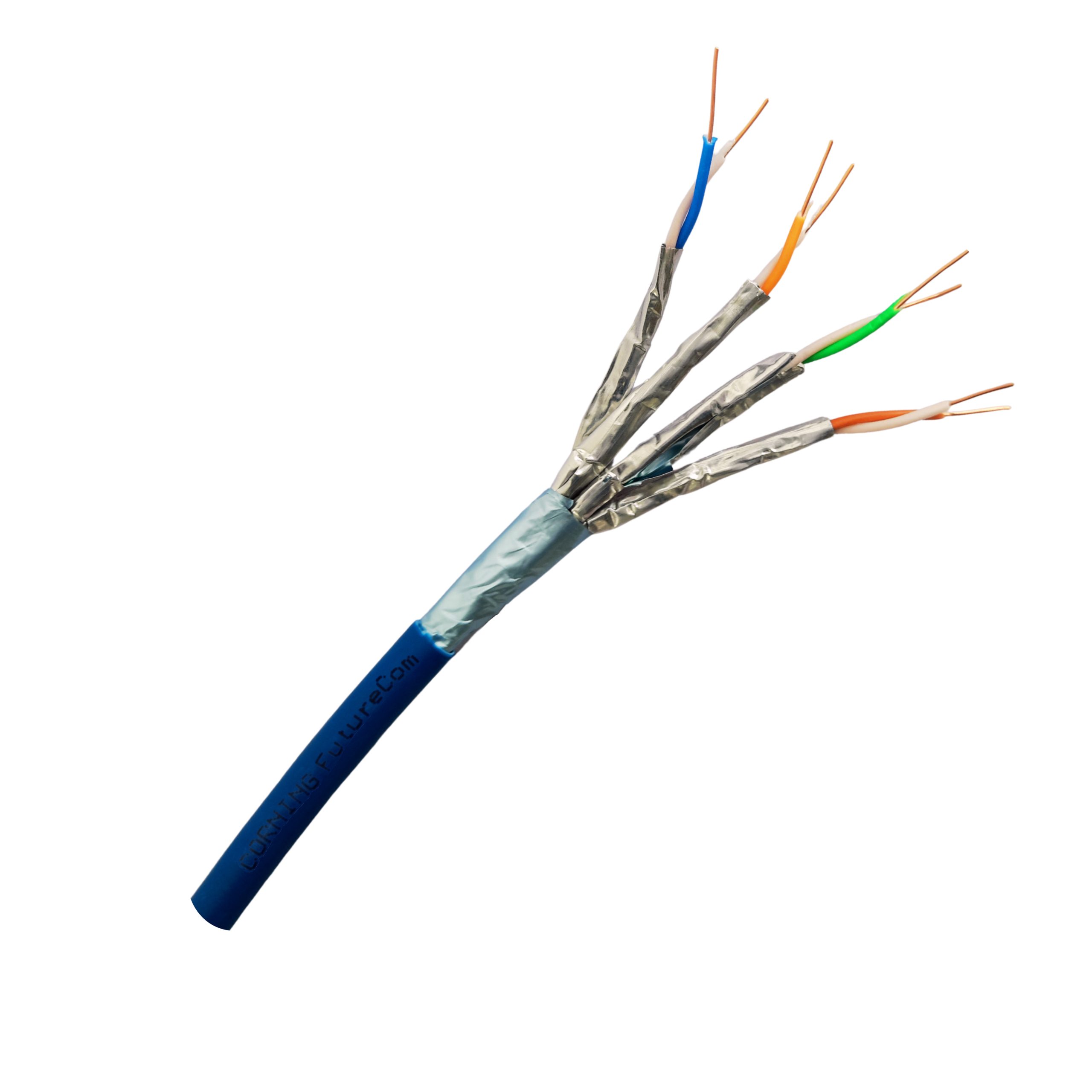

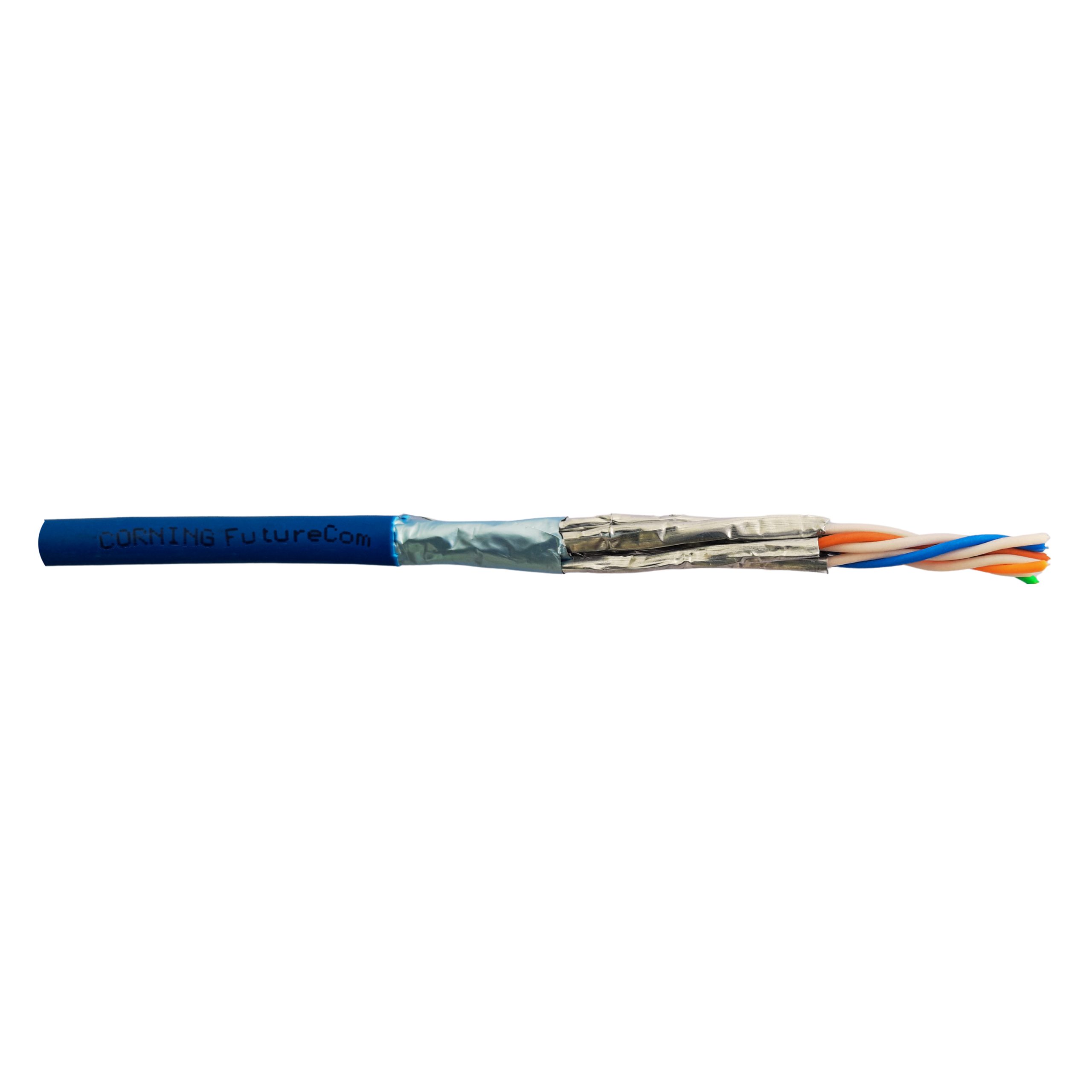

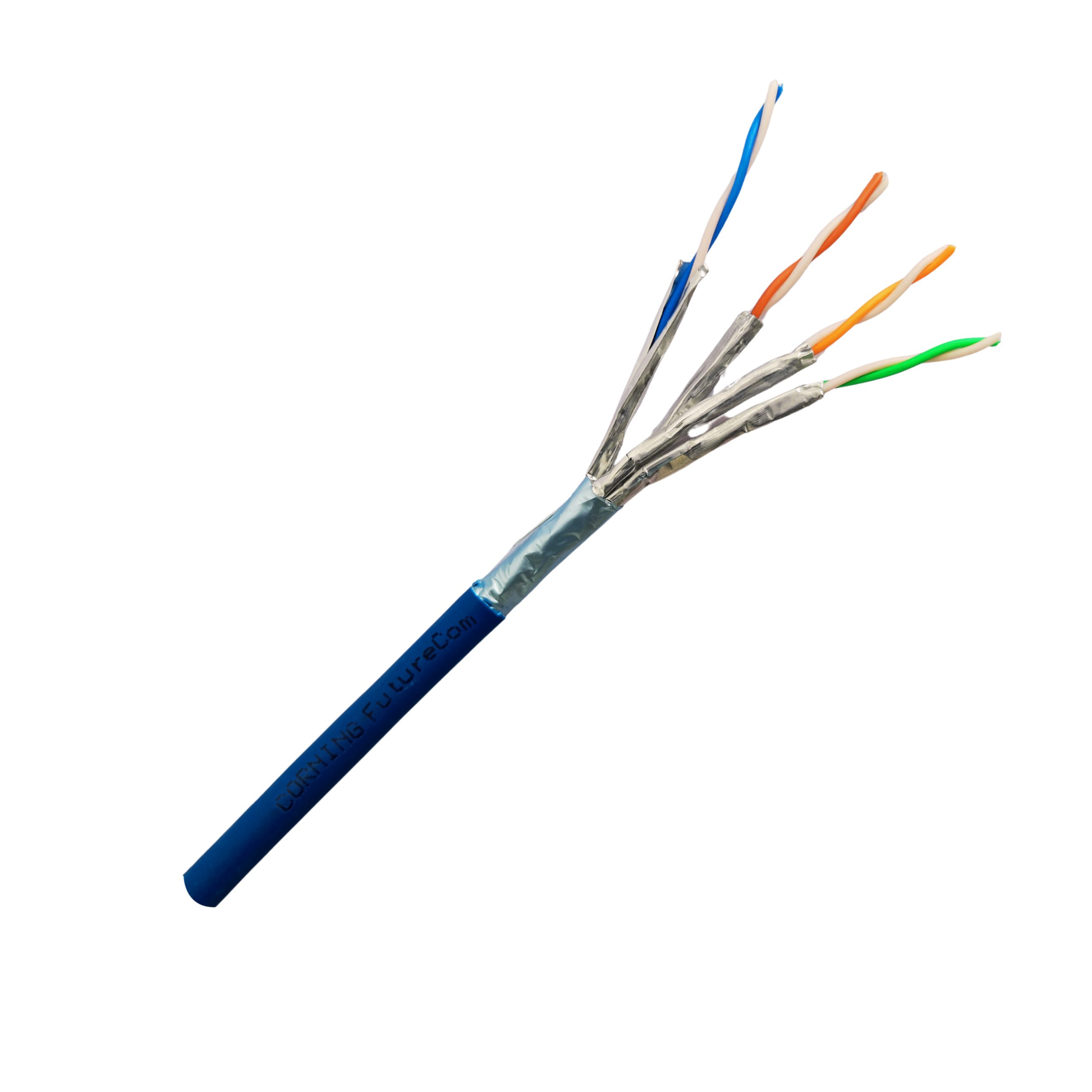

  • Overall shielding with with a Allaminated foil and each twisted pair is individually shielded with a Allaminated foil (F/FTP).

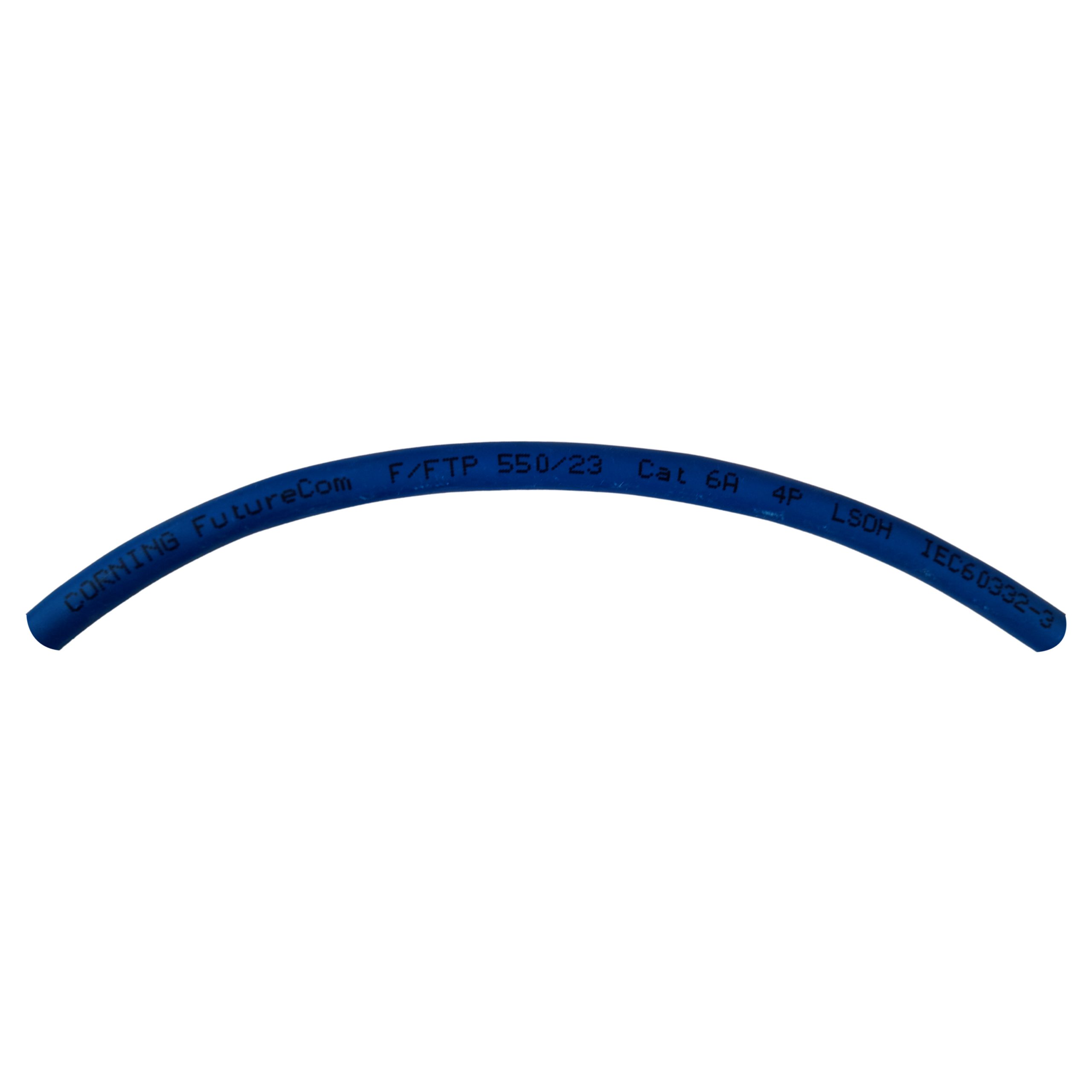

  • Length marking on jacket.
  • Dca.
