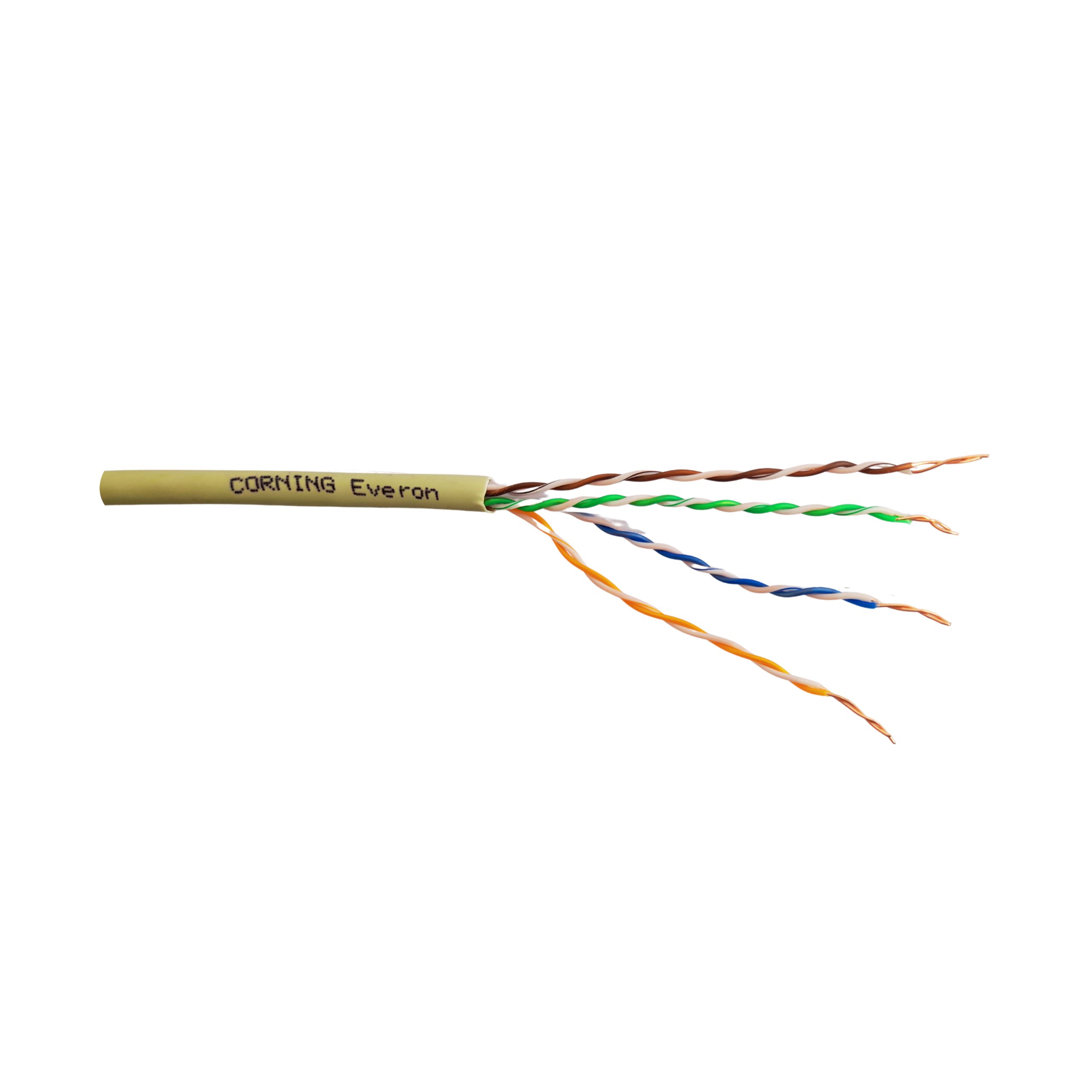

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, Grey

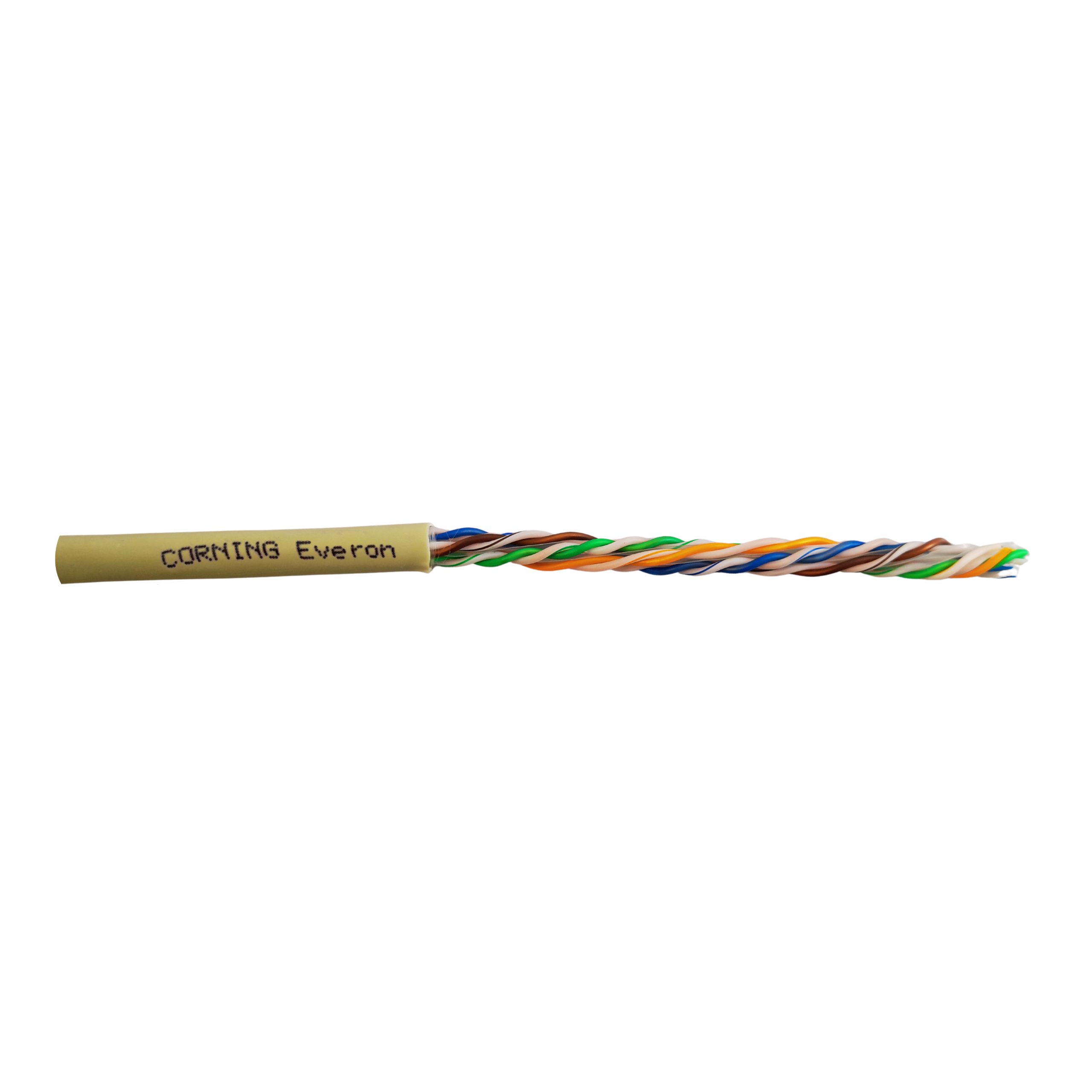

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, Grey - Image 2
Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, Grey - Image 3
Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, Grey - Image 4

Rating & Reviews

Overall Product Rating

0.0/5
★ 5
★ 4
★ 3
★ 2
★ 1
★ ★ ★ ★ ★ Tap to rate

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, Grey

SKU: XE004239879

₨71,346

General Specifications
  • Category 6
  • Cable type U/UTP
  • Halogen-free Yes
  • Construction Simplex, 4P
  • Reaction to Fire Dca-s2, d2, a1
  • Legacy Part Number VOL6UL4305
  • Brand Everon®
Standards
  • RoHS Free of hazardous substances according to RoHS 2011/65/EU
  • Approvals and Listings IEC 61156-5, EN 50288-6-1, ISO/IEC 11801 Ed. 2.2, EN
    50173-1, ANSI/TIA-568-C.2, IEC 60304
  • Design And Test Criteria
    Tested and approved for Power over Ethernet applications
    (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at
    and IEEE 802.3bt up to 90W
  • Flame propagation test IEC 60332-1
  • Smoke density IEC 61034-2
  • Halogen content test Zero Halogen to IEC 60754-1
  • Level of corrosion Non-corrosive according to IEC 60754-2
Environmental Conditions
  • Temperature range, installation 0°C to 50°C
  • Temperature range, operation-20°C to 60°C
Cable Design
  • Conductor Copper Wire, AWG 23/1
  • Conductor insulation Solid PE
Cable Design
  • Twisting 2 cores to a pair
  • Outer jacket material LSZH/FRNC
  • Outer jacket colour Grey



Product Description

DESCRIPTION

The Everon® Copper Datacom U/UTP 450/23 cable is designed up to 450MHz and its transmission characteristics exceed Category 6 specifications according to EN50288-6-1 IEC 61156-5. High system margins for the complete link according to the last version of ISO/IEC 11801 and EN 50173 (Series) will be achieved by using corresponding hardware together with this highend copper cable. The cable has a streamlined construction and low weight. Unshielded cable (U/UTP). (Features and Benefits) U/UTP 450/23 cable designed up to 450 MHz. Fulfils all requirements of category 6 EN50288-6-1 and IEC 61156-5. Suitable for Classe D to E according to ISO/IEC 11801. EN50173 and 10 Gigabit Ethernet according to IEEE 802.3an. Tested and approved for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W. Certified by a vendor-independent and impartial test lab. Low smoke and halogen-free (LSZH). Unshielded cable (U/UTP). Length marking on jacket. Dca -s2, d2, a1.

Features and Benefits
  • U/UTP 450/23 cable designed up to 450 MHz
  • Fulfils all requirements of category 6 EN50288-6-1 and
    IEC 61156-5
  • Suitable for Classe D to E according to ISO/IEC 11801.
    EN50173 and 10 Gigabit Ethernet according to IEEE
    802.3an
  • Tested and approved for Power over Ethernet applications
    (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE
    802.3at and IEEE 802.3bt up to 90W
  • Certified by a vendor-independent and impartial test lab
  • Low smoke and halogen-free (LSZH)
  • Unshielded cable (U/UTP)

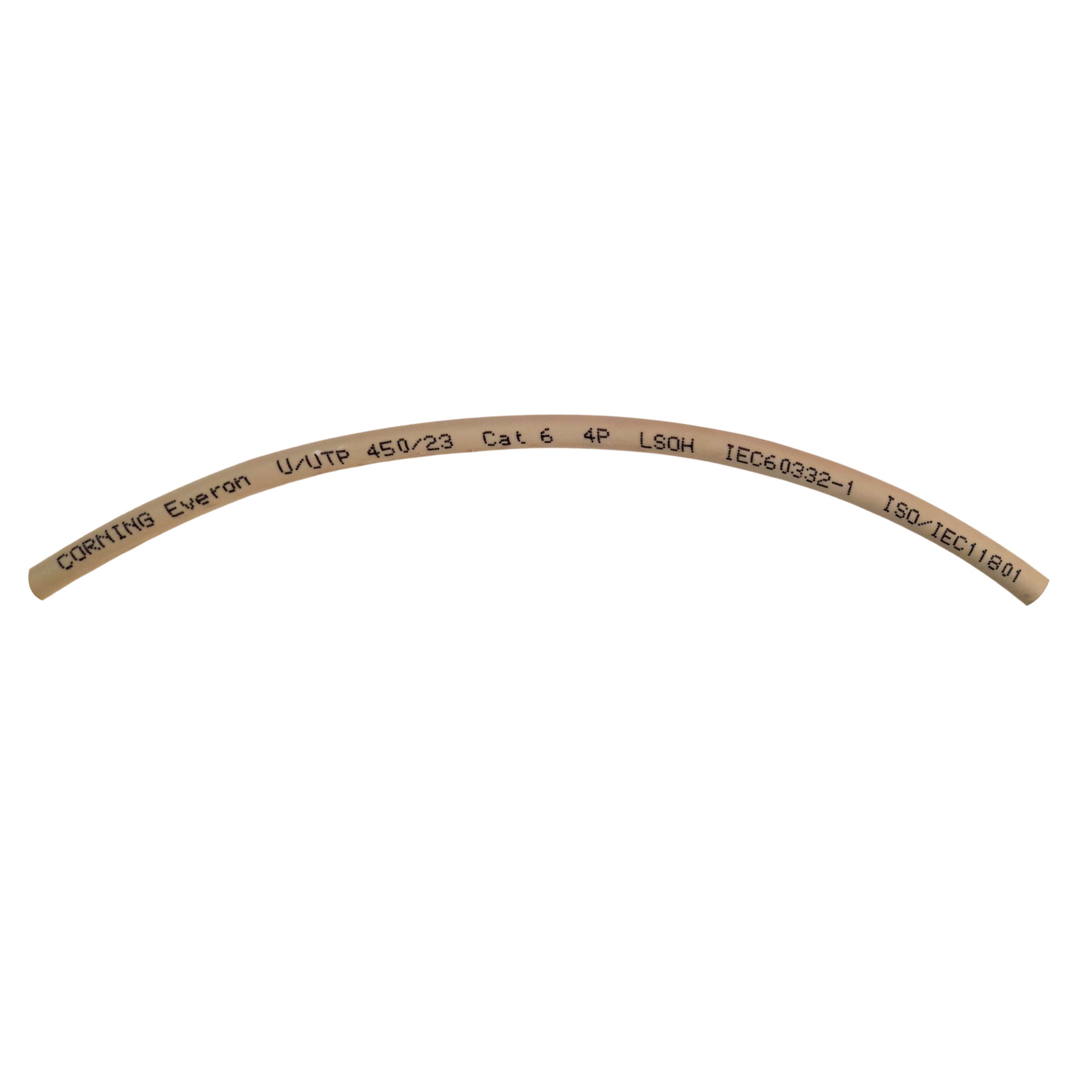

  • Length marking on jacket
  • Dca -s2, d2, a1
