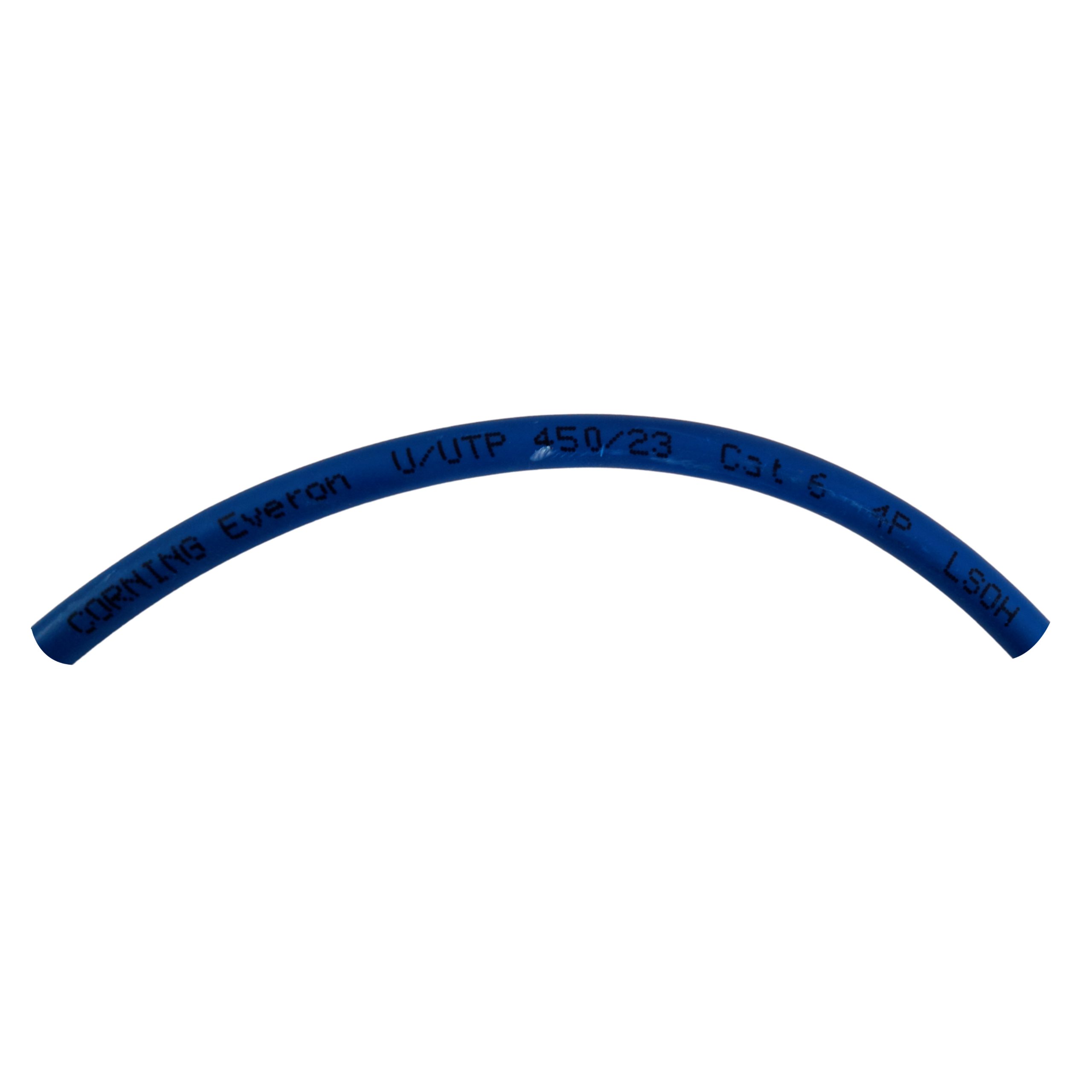

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, light Blue

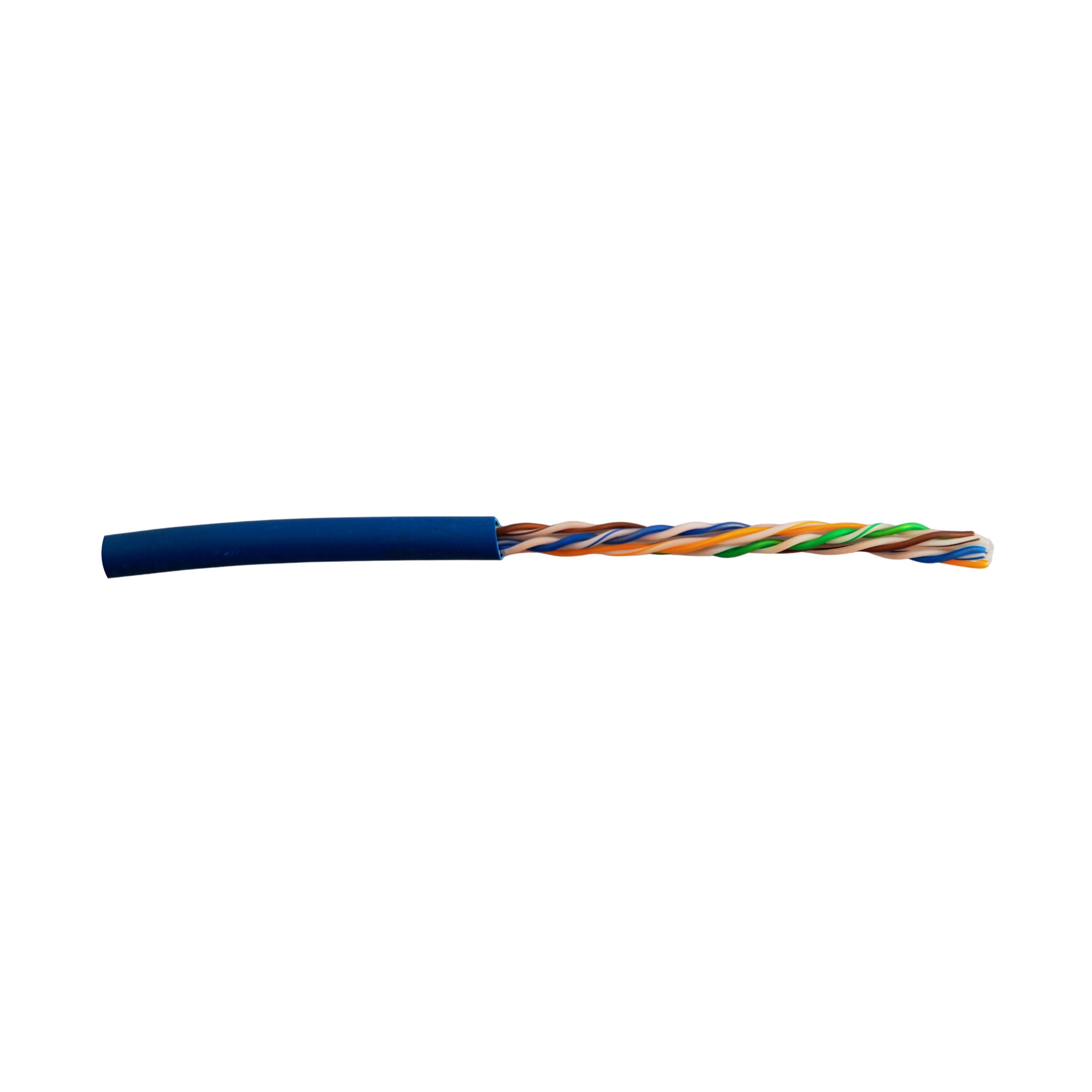

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, light Blue - Image 2

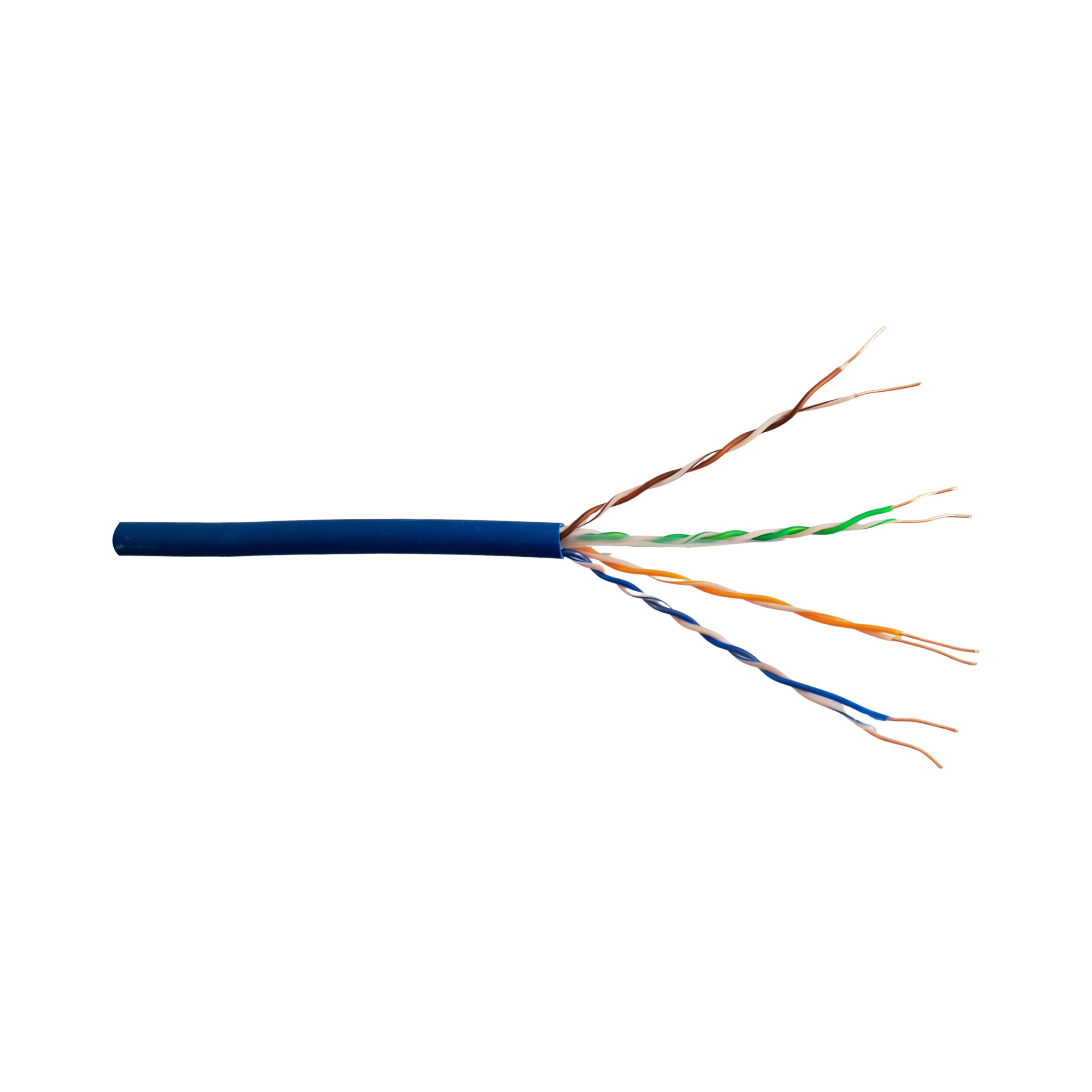

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, light Blue - Image 3
Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, light Blue - Image 4

Rating & Reviews

Overall Product Rating

0.0/5
★ 5
★ 4
★ 3
★ 2
★ 1
★ ★ ★ ★ ★ Tap to rate

Everon® Copper Datacom U/UTP 450/23, Category 6, LSZH™/FRNC, Dca 4P, light Blue

SKU: XE004239861

₨77,581

General Specifications
  • Environment Indoor
  • Category 6
  • Cable type U/UTP
  • Halogen-free Yes
  • Construction Simplex, 4P
  • Reaction to Fire Dca, s2, d2, a1
  • Legacy Part Number VOL6UL4305
  • Brand Everon®
Standards
  • RoHS Free of hazardous substances according to RoHS 2011/65/EU
  • Approvals and Listings IEC 61156-5; EN 50288-6-1, ISO/IEC 11801 Ed. 2.2; EN
    50173-1, ANSI/TIA-568-C-2; IEC 60304
  • Design And Test Criteria
    Tested and approved for Power over Ethernet applications
    (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at
    and IEEE 802.3bt up to 90W
  • Flame propagation test IEC 60332-1
  • Smoke density IEC 61034-2
  • Halogen content test Zero Halogen to IEC 60754-1
Environmental Conditions
  • Halogen-free Yes
  • Temperature range, installation 0°C to 50°C
  • Temperature range, operation-20°C to 60°C
Cable Design
  • Conductor Copper Wire, AWG 23/1
Cable Design
  • Conductor insulation Solid PE
  • Twisting 2 cores to a pair
  • Outer jacket material LSZH/FRNC
  • Outer jacket colour Light blue



Product Description

DESCRIPTION

The Everon® Copper Datacom U/UTP 450/23 cable is designed up to 450MHz and its transmission characteristics exceed Category 6 specifications according to EN50288-6-1 IEC 61156-5. High system margins for the complete link according to the last version of ISO/IEC 11801 and EN 50173 (Series) will be achieved by using corresponding hardware together with this highend copper cable. The cable has a streamlined construction and low weight. Unshielded cable (U/UTP)

Features and Benefits
  • U/UTP 450/23 cable designed up to 450 MHz
  • Fulfils all requirements of category 6 EN50288-6-1 and
    IEC 61156-5
  • Suitable for Classe D to E according to ISO/IEC 11801.
    EN50173 and 10 Gigabit Ethernet according to IEEE
    802.3an
  • Tested and approved for Power over Ethernet applications
    (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE
    802.3at and IEEE 802.3bt up to 90W
  • Low smoke and halogen-free (LSZH)
  • Unshielded cable (U/UTP)
  • Length marking on jacket
  • Dca, s2, d2, a1
