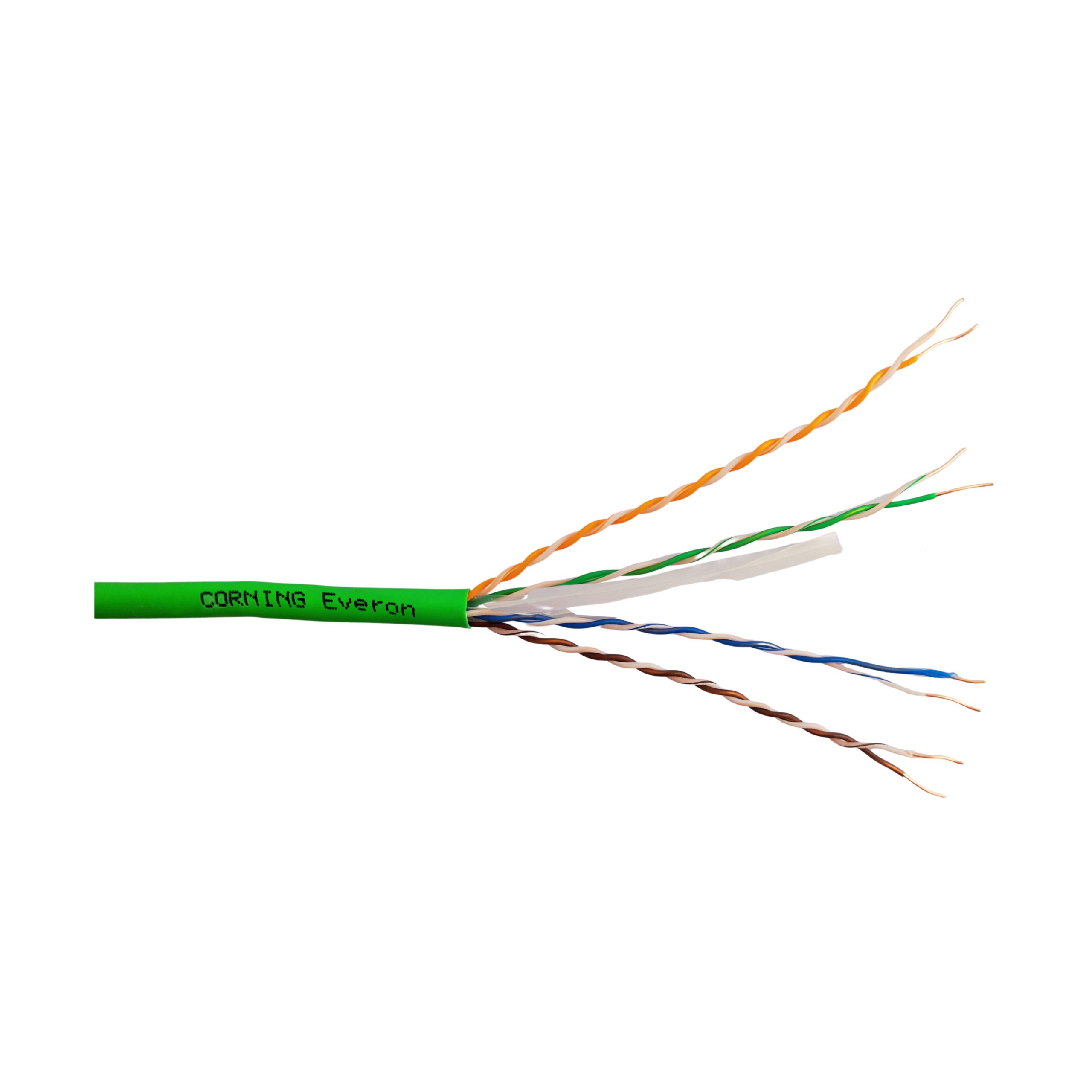

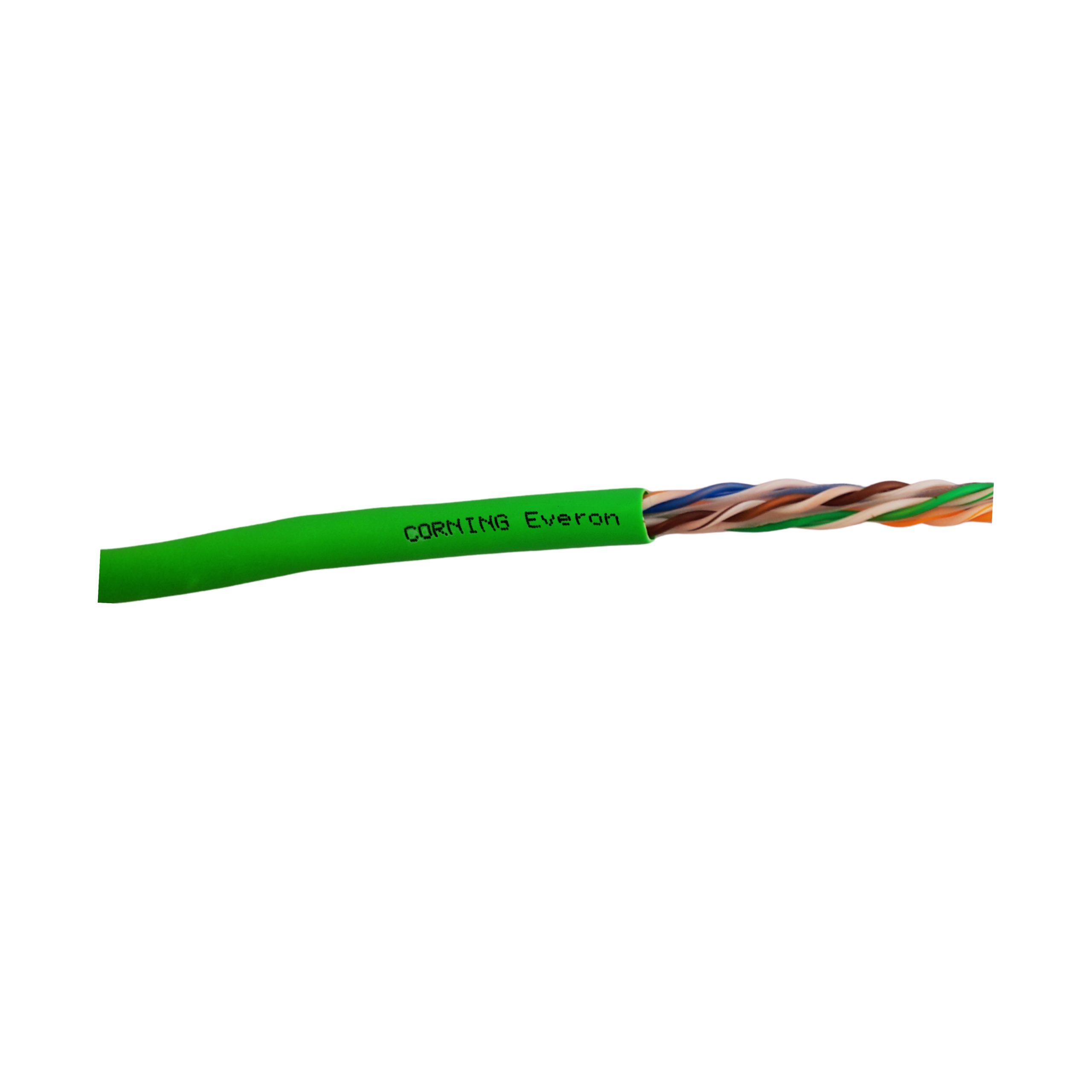

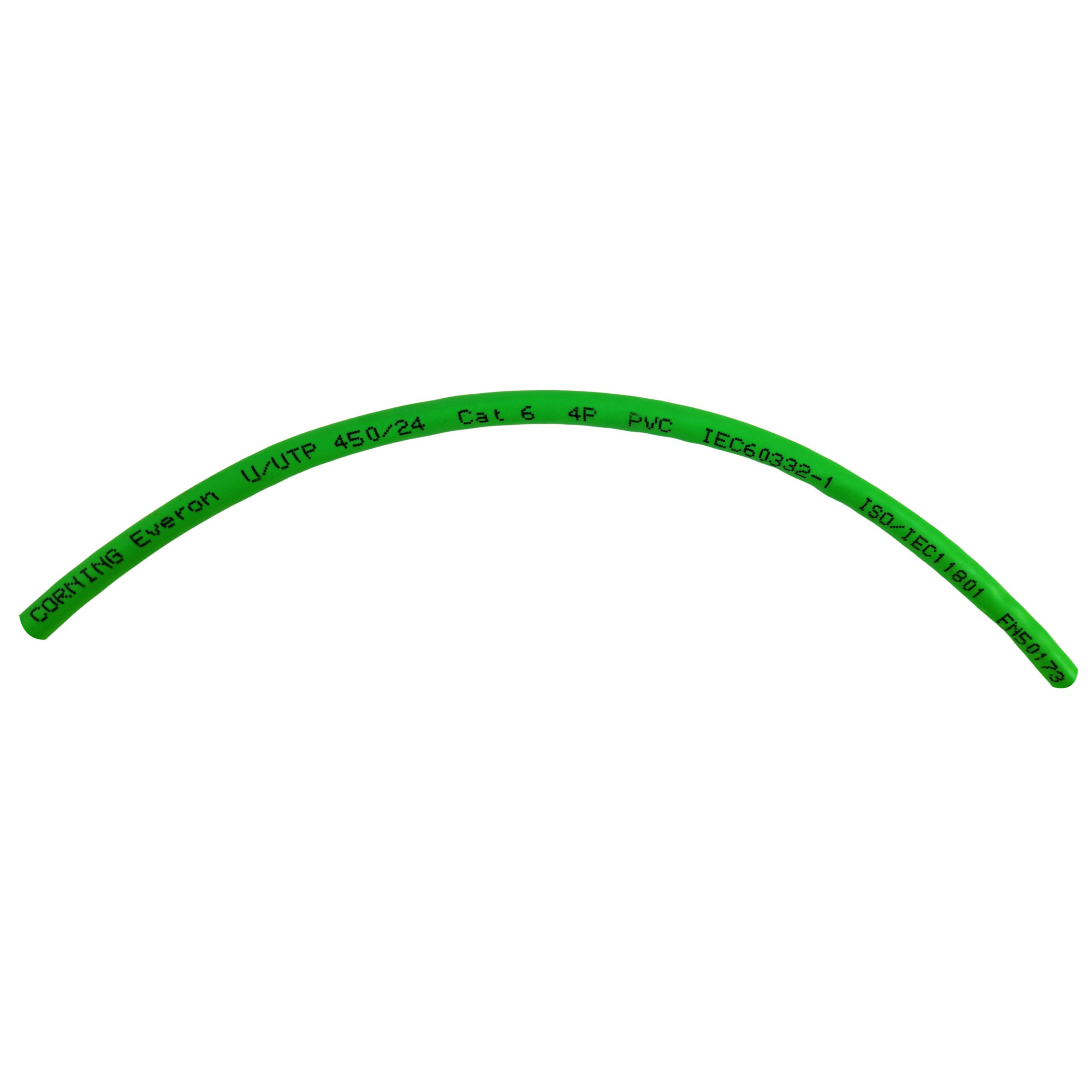

Everon® Copper Datacom U/UTP 450/24, Category 6, PVC, Eca 4P, Green
Everon® Copper Datacom U/UTP 450/24, Category 6, PVC, Eca 4P, Green - Image 2
Everon® Copper Datacom U/UTP 450/24, Category 6, PVC, Eca 4P, Green - Image 3
Everon® Copper Datacom U/UTP 450/24, Category 6, PVC, Eca 4P, Green - Image 4

Rating & Reviews

Overall Product Rating

0.0/5
★ 5
★ 4
★ 3
★ 2
★ 1
★ ★ ★ ★ ★ Tap to rate

Everon® Copper Datacom U/UTP 450/24, Category 6, PVC, Eca 4P, Green

SKU: DE010024334

₨69,292

General Specifications
  • Category 6
  • Cable type U/UTP
  • Halogen-free No
  • Construction Simplex, 4P
  • Reaction to Fire Eca
  • Legacy Part Number VOL6UP4305
  • Brand Everon®
Standards
  • RoHS Free of hazardous substances according to RoHS 2011/65/EU
  • Approvals and Listings IEC 61156-5, EN 50288-6-1, ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-C.2, IEC 60304
  • Design And Test Criteria Compliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at, IEEE 802.3 an 1000 Base-T
  • Flame propagation test Flame retardant according to IEC 60332-1-2 (single cable)
Environmental Conditions
  • Temperature range, installation 0°C to 50°C
  • Temperature range, operation-20°C to 60°C
Cable Design
  • Conductor Copper Wire, AWG 24/1
  • Conductor insulation Solid PE
  • Twisting 2 cores to a pair
  • Outer jacket material PVC
  • Outer jacket colour Green
Mechanical Characteristics
  • Fire load 374MJ/km
  • Nominal outer diameter 5.4mm
  • Min. bend radius installation 8x Cable-Ø
  • Maximum tensile strength 100

Product Description

DESCRIPTION

The Everon® Copper Datacom U/UTP 450/24 cable is designed up to 450MHz and its transmission characteristics exceed Category 6 specifications according to EN50288-6-1 IEC 61156-5. High system margins for the complete link according to the last version of ISO/IEC 11801 and EN 50173 (Series) will be achieved by using corresponding hardware together with this highend copper cable. The cable has a streamlined construction and low weight. Unshielded cable (U/UTP).

Features and Benefits
  • U/UTP 450/24 cable designed up to 450 MHz
  • Fulfils all requirements of category 6 EN50288-6-1 and IEC 61156-5
  • Suitable for Classe D to E according to ISO/IEC 11801.
    EN50173 and 10 Gigabit Ethernet according to IEEE
    802.3an
  • Tested and approved for Power over Ethernet applications
    (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE
    802.3at and IEEE 802.3bt up to 90W
  • PVC Indoor jacket
  • Unshielded cable (U/UTP)
  • Length marking on jacket
  • Eca



Download PDF
