₨186,592
Category 6A
Cable Type U/UTP
Halogen-free Yes
Construction Simplex, 4P
Reaction to Fire Eca
Brand Everon®
RoHS Free of hazardous substances according to RoHS 2011/65/EU
Approvals and Listings IEC 61156-5, EN 50288-11-1, ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-C.2, IEC 60304
Design and Test Criteria 1000 Base-T IEEE 802.3 an; PoE / PoE++ IEEE 802.3af, IEEE 802.3at
Flame propagation test IEC 60332-1
Smoke density IEC 61034-2
Halogen content test Zero Halogen to IEC 60754-1
Level of corrosion Non-corrosive according to IEC 60754-2
Temperature Range, Installation 0°C to 50°C
Temperature Range, Operation-20°C to 60°C
Conductor Copper Wire, AWG 24/1
Conductor Insulation Halogen-free foam-skin material
Twisting 2 cores to a pair
Outer Jacket Material LSZH/FRNC
Outer Jacket Color Green
Fire Load 1260MJ/km
Nominal Outer Diameter 7.3mm
Min. Bend Radius Installation 8x Cable-Ø
Maximum Tensile Strength 160N
Conductor resistance unbalance 2%
Delay skew 45ns/100 m
Max. loop resistance 190Ω/km
Propagation delay 545ns/100 m
Voltage rating Less than 75 V DC max and less than 50 V AC max
Propagation Velocity at >10 MHz (NVP*c) 69%
Coupling Attenuation 40dB
Insulation Resistance > 5000 MΩ*km

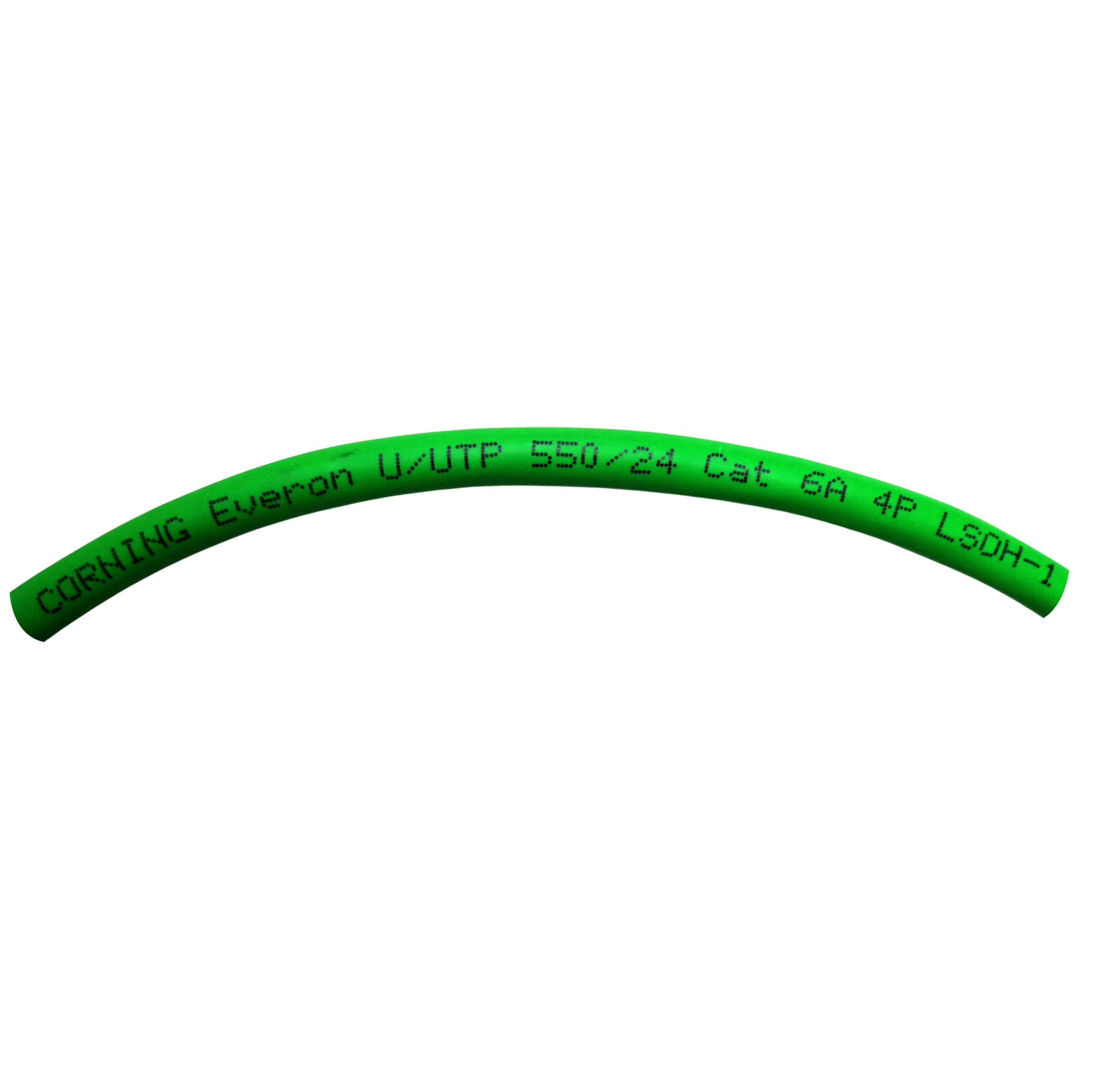

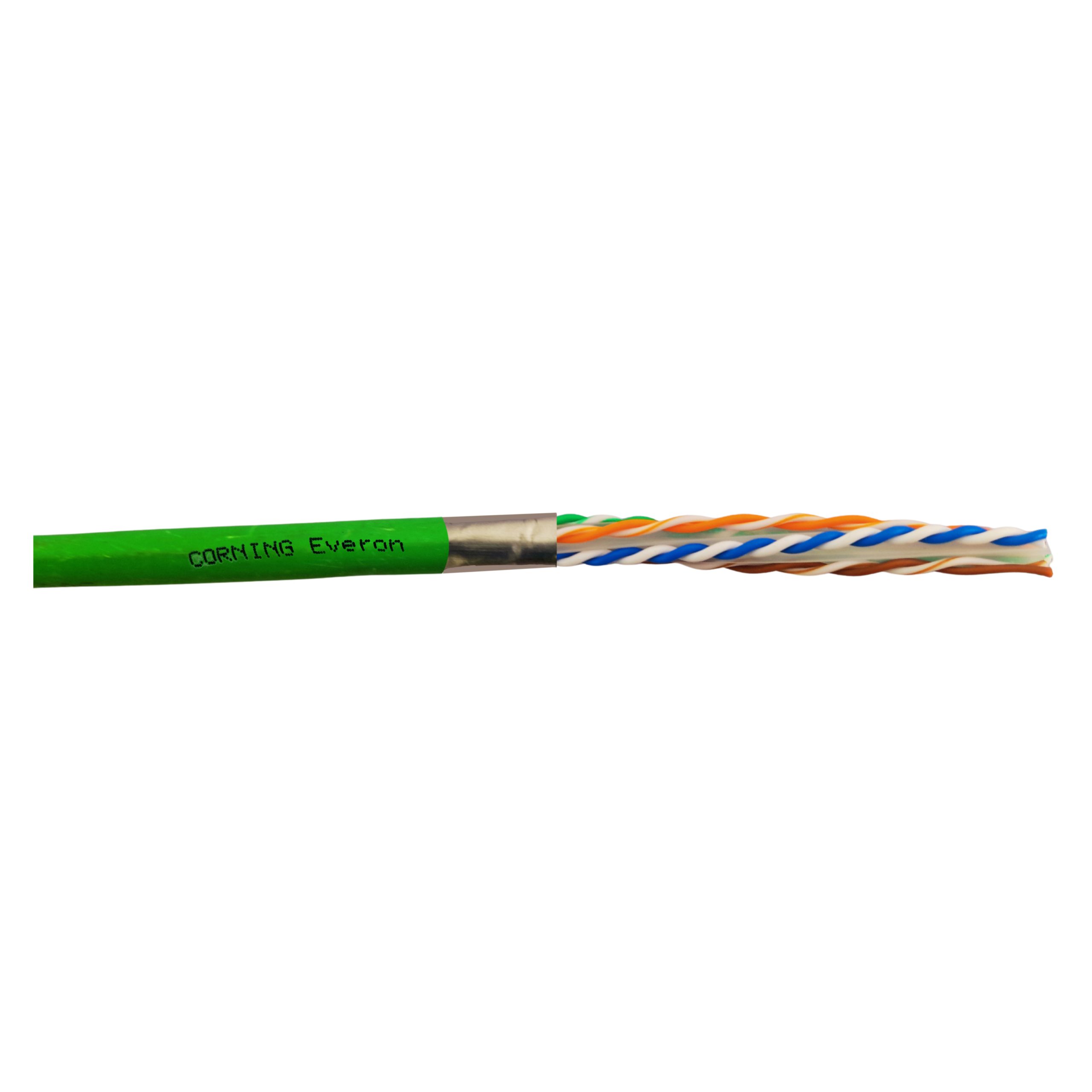

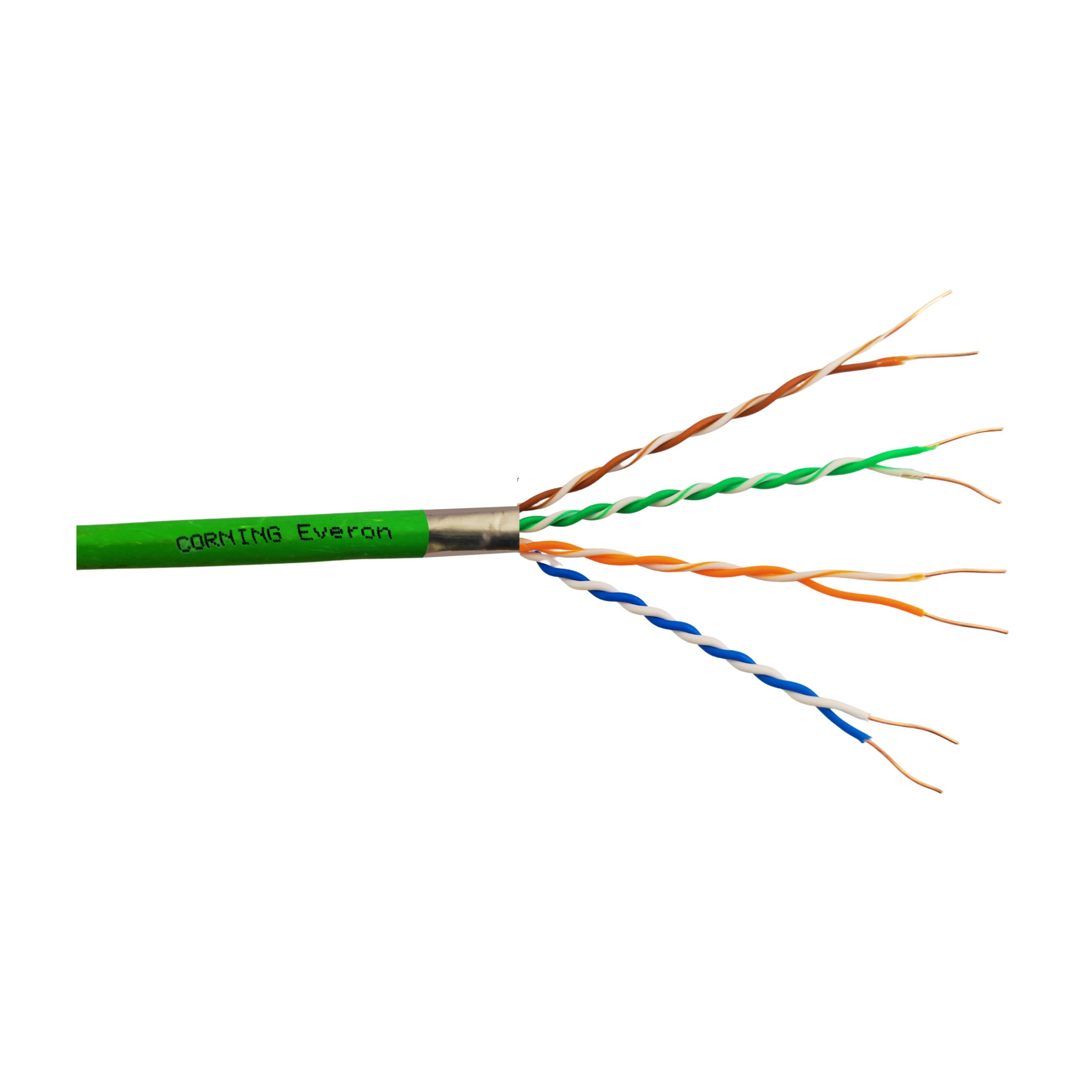

The Everon® Copper Datacom U/UTP 550/24 cable is designed up to 550MHz and its transmission characteristics exceed Category 6A specifications according to EN50288-11-1 IEC 61156-5. High system margins for the complete link according to the last version of ISO/IEC 11801 and EN 50173 (Series) will be achieved by using corresponding hardware together with this highend copper cable. Due to the very low delay skew between the pairs these Everon® cables are especially suitable for Gigabit Ethernet and also for transmission of digital data for future applications up to 10 Gigabit Ethernet according to IEEE 802.3an. The cable has a streamlined construction and low weight. Unshielded cable (U/UTP).
