Features and benefits

• Rich port types
  All series support “Ethernet port + optical port” combination, adapting to various scenarios of
  networking needs, convenient and flexible networking;
  All ports are equipped with line speed forwarding capability to meet the needs of different users.
• Reliable Security Policy
  Supports broadcast storm suppression to prevent excessive broadcast packets from being sent from
  other ports of the switch, which in turn affects the network.
  Supports black hole MAC address configuration to filter out illegal users and safeguard network
  security.
• Easy-to-use network management
  Cloudnet and intelligent Web management functions fit smart and easy managing demand , the page is
  simple and easy to operate, reducing operation and maintenance costs.
• Fast network for quick project creation
  Supports automatically obtaining IP address from gateway and connecting to external network
  without configuration.

Hardware Specifications

• Switching capacity
  12Gbps
• Forwarding capacity
  8.93Mpps
• Dimensions (W × D × H)
  130×124×27 mm
• Weight
  ≤0.5 kg

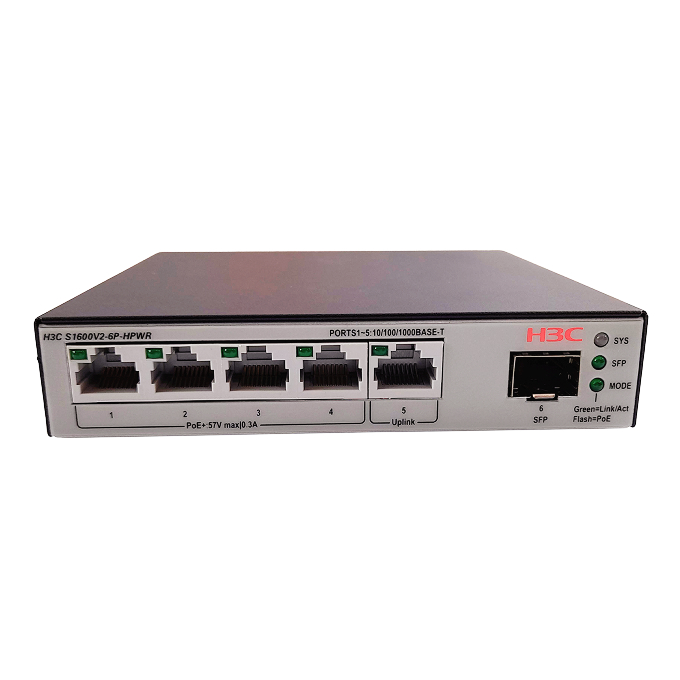

• Networking interface
  4*GE(poe+)+1GE+1*SFP
• Port Surge
  6KV
• Input voltage
  AC: The rated voltage range is 100V to 240V, 50/60Hz.
• Total power consumption
  MIN:
  AC: 3W
  MAX:
  AC single 86W (PoE 73W)
• Fan number
  Fan-less
• MTBF(Year)
  88.60
• MTTR(Hour)
  1
• Part Number
  LS-1600V2-6P-HPWR-GL
