Features and benefits

• Stable PoE output
  The switch supports PoE+ and can provide 57 W PoE output in total, with up to 30 W PoE output per port.
  With an advanced PoE chip, the switch can provide highly reliable and compatible PoE service.

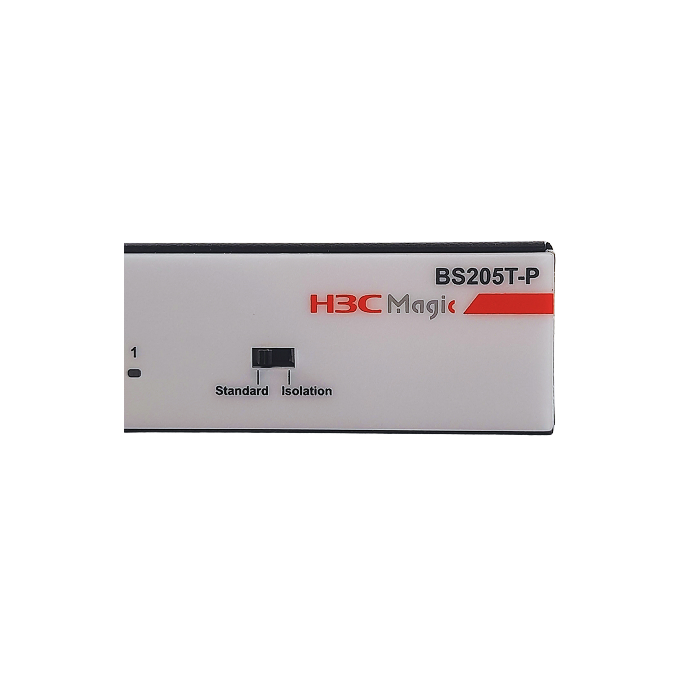

• Multiple working modes
  The switch can operate in standard and isolation working modes and supports one-key switching of the working mode.
• High performance
  With a buffer sharing architecture, the switch multiplies the available buffering space for each port, greatly enhancing the
  forwarding performance in the event of unexpected and sudden traffic bursts.
• High reliability
  Integrating enterprise-level lightning protection circuit into the switch protects the switch from lightning strikes and ensures
  reliable operation of the switch.

Technical specifications

• Dimensions (H × W × D)
  27 × 155 × 58 mm (1.06 × 6.10 × 2.28 in)

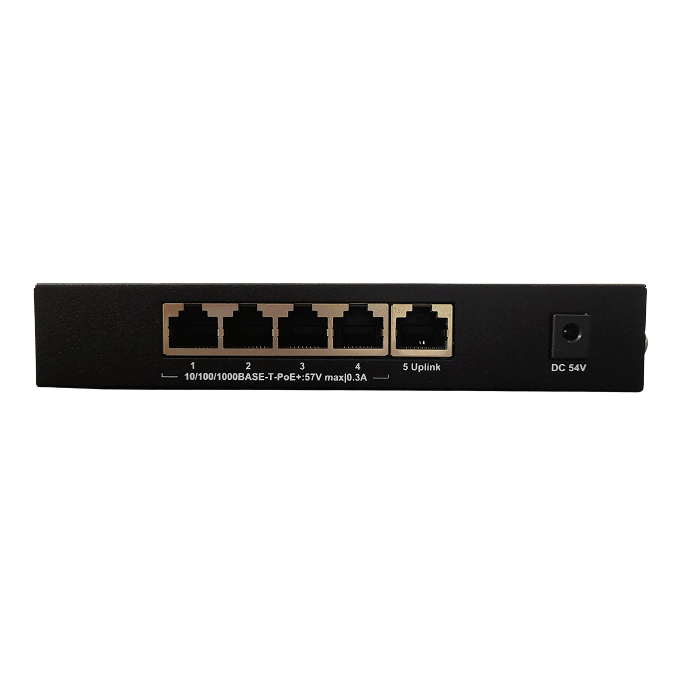

• Ports
  5 × 10/100/1000BASE-T copper ports
• Operating mode
  Standard
  Isolation
• MAC address entries
  2K
• Switching capacity
  10 Gbps
• Forwarding capacity
  7.4 Mpps
• Packet buffering
  1 Mbit
• Switching mode
  Store-and-forward switching
• PoE+
  PoE+ supported
  Supports PoE Power up to 57 W for all PoE ports (4 PoE ports)
  Supports PoE Power up to 30 W for each PoE port
• Power
  54 V DC, 1.17 A
• Auto-MDI/MDIX
  Ye
• Certifications
  CE,RoHS
• Part Number
  H3C Magic BS205T-P-UK
