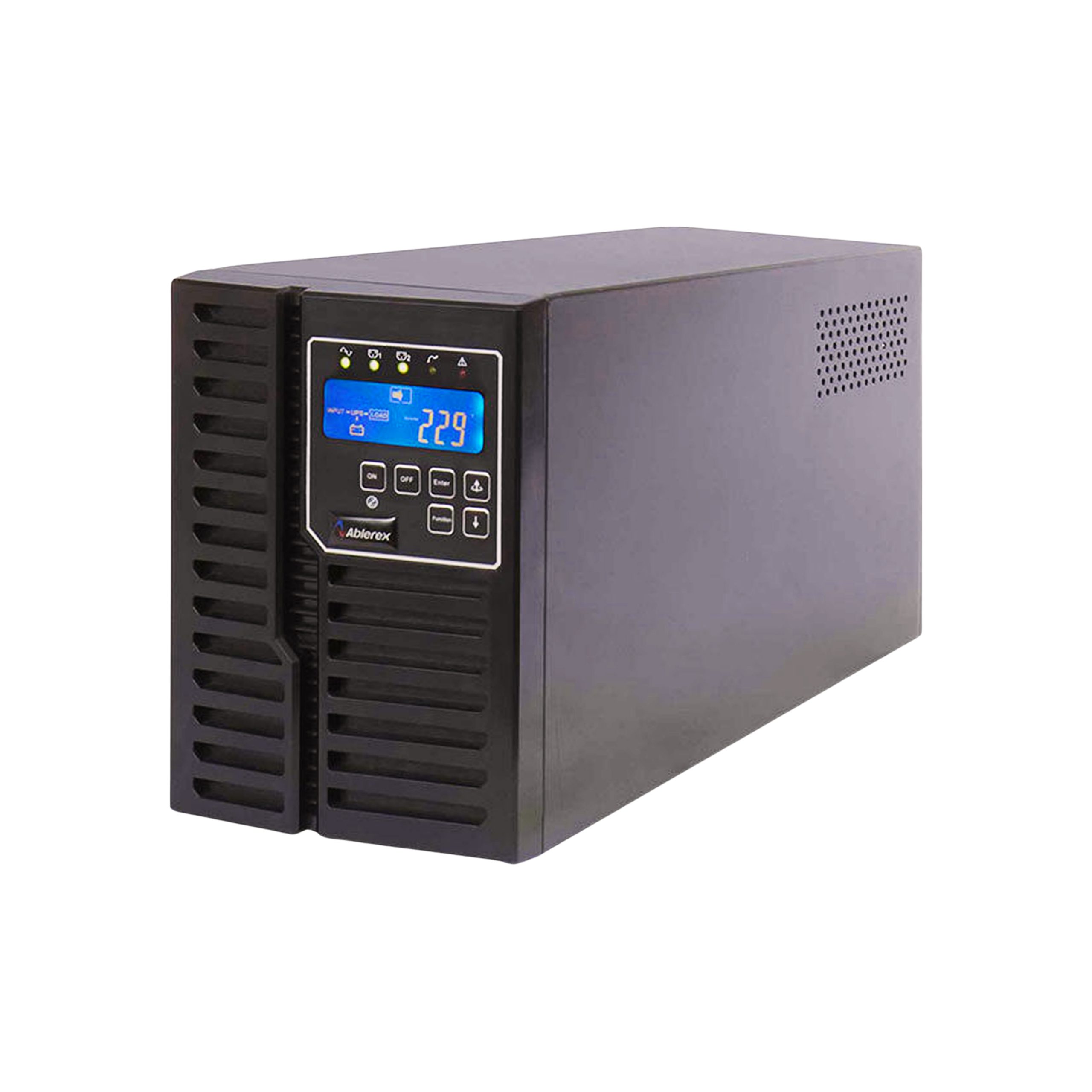

EssentialPower™ is the online, true double-conversion, single-phase UPS (uninterruptible power supply).
From 1 to 10kVA, EssentialPower™ provides reliable power for small network devices, servers, point-of-sale, workstation
clusters and light-industrial installations.
Product Description
Power
VA
1000
W
900
Input
Rated voltage*
110–300 Vac
Frequency
44–66 Hz
Power factor
>0.98
Output
Rated voltage
200/208/220/230/240 Vac
Voltage distortion
<3% with linear load I, <7% with distorting load
Voltage stability
±1%
Frequency
50/60 Hz (selectable)
Frequency stability
±1 Hz or ±3 Hz (selectable)
Power factor
0.9
Crest factor
3:1
Waveform
Pure sine wave
Output sockets
2xIEC-C13 / 2 Schuko
Efficiency
VFI mode
Up to 92%
ECO mode
Up to 96.5%
General
Dimensions (WxDxH) mm
154 x 382 x 211
Weight (kg)
11.6
Alarms
Audible and visual alarm alerts for: power failure, low battery, bypass transfer, and UPS fault.
Protection
Overload, overheating, short circuit, deep discharge, battery overcharging.
Operating mode
Multi-mode: VFl, ECO, Constant voltage constant frequency (CVCF) output.
Cold start from the battery without mains power
Included
Battery
Battery type
12V VRLA, AGM (maintenance-free lead acid battery)
Uptime with internal battery (in min)
50% load / 14
100% load / 5
