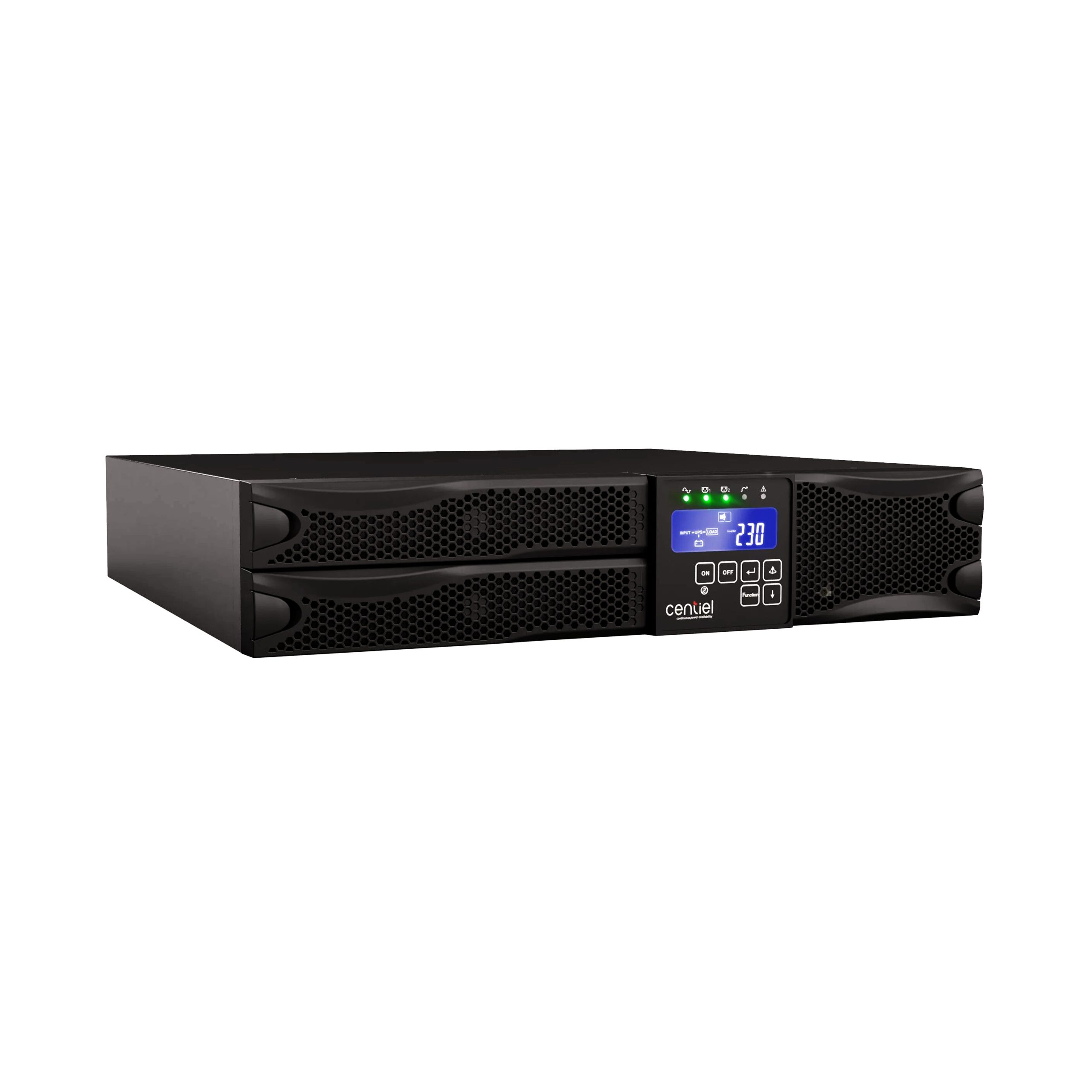

ssentialPower™ is the online, true double-conversion, single-phase UPS (uninterruptible power supply).
From 1 to 10kVA, EssentialPower™ provides reliable power for small network devices, servers, point-of-sale, workstation
clusters and light-industrial installations.
Product Description
GENERAL DATA
Output rated power 2000VA /1800W
Output power factor 0,9
Topology Online double conversion
Internal Batteries YES
Parallel Configuration N.A.
INPUT
Voltage range 110~300 Vac (Single + G)
Frequency range 45-65Hz (auto sensing)
Input power factor ≥ 0.99 @ 100% linear load
Input Current Distorsion ≤ 6% (full load)
OUTPUT
Output voltage 220/230/240 Vac (Single + G)
Output voltage distortion <3%@100% Linear Load; <5% @100% Non-Linear Load
Output voltage regulation ±1%
Frequency range ±1Hz or ±3Hz (selectable)
Crest factor ‘3:1
Output waveform Pure sine wave
Overload Capacity Inverter
<105%continuous
106-120% for 30 seconds transfer to bypass.
121-150% for 10 seconds transfer to bypass.
