Description

Features and Benefits

• U/UTP 450/23 cable designed up to 450 MHz
• Fulfils all requirements of category 6 EN50288-6-1 and
  IEC 61156-5
• Suitable for Classe D to E according to ISO/IEC 11801.
  EN50173 and 10 Gigabit Ethernet according to IEEE
  802.3an
• Tested and approved for Power over Ethernet applications
  (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE
  802.3at and IEEE 802.3bt up to 90W
• Low smoke and halogen-free (LSZH)
• Unshielded cable (U/UTP)

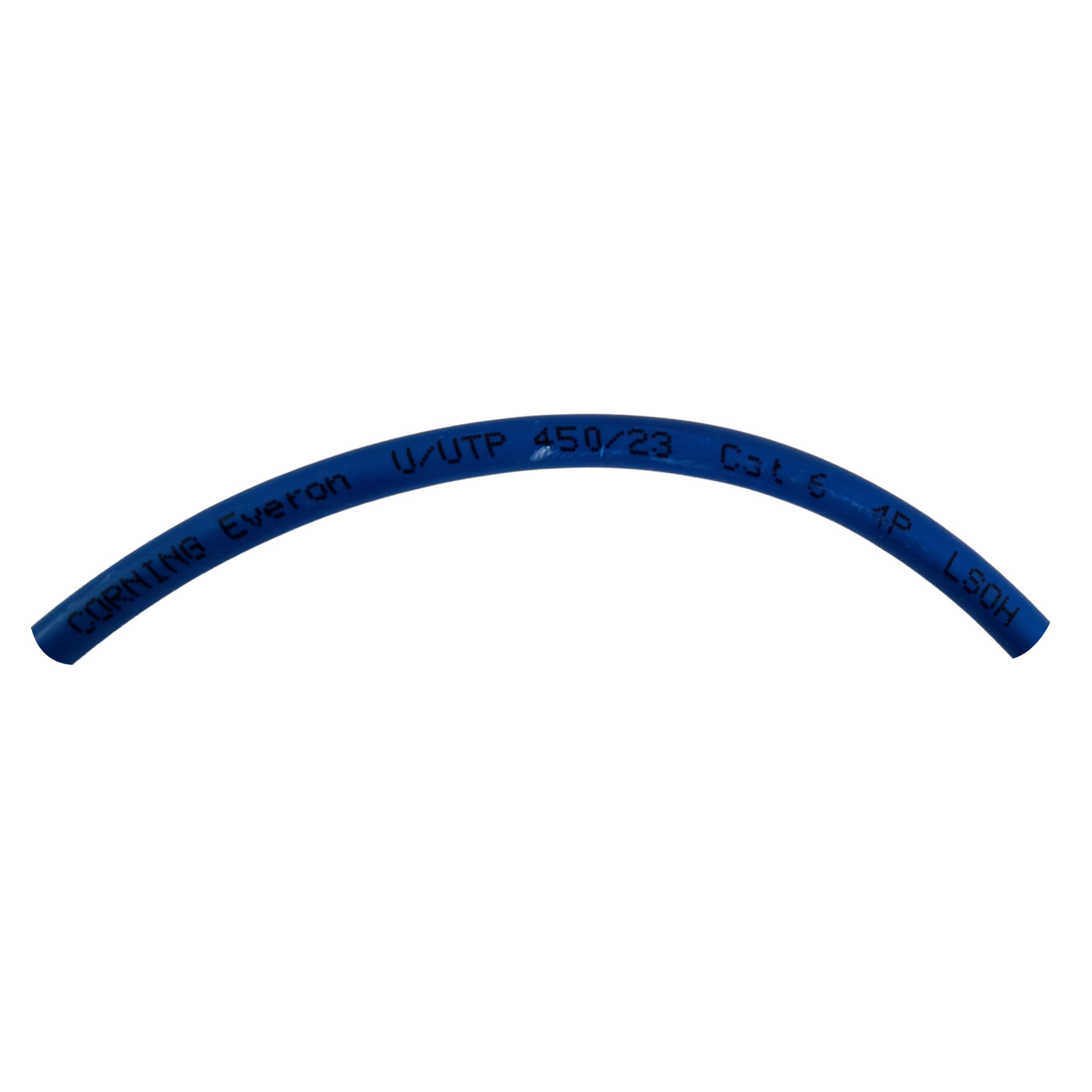

• Length marking on jacket
• Dca, s2, d2, a1

General Specifications

• Environment Indoor
• Category 6
• Cable type U/UTP
• Halogen-free Yes
• Construction Simplex, 4P
• Reaction to Fire Dca, s2, d2, a1
• Legacy Part Number VOL6UL4305
• Brand Everon®

Standards

• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings IEC 61156-5; EN 50288-6-1, ISO/IEC 11801 Ed. 2.2; EN
  50173-1, ANSI/TIA-568-C-2; IEC 60304
• Design And Test Criteria
  Tested and approved for Power over Ethernet applications
  (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at
  and IEEE 802.3bt up to 90W
• Flame propagation test IEC 60332-1
• Smoke density IEC 61034-2
• Halogen content test Zero Halogen to IEC 60754-1

Environmental Conditions

• Halogen-free Yes
• Temperature range, installation 0°C to 50°C
• Temperature range, operation-20°C to 60°C

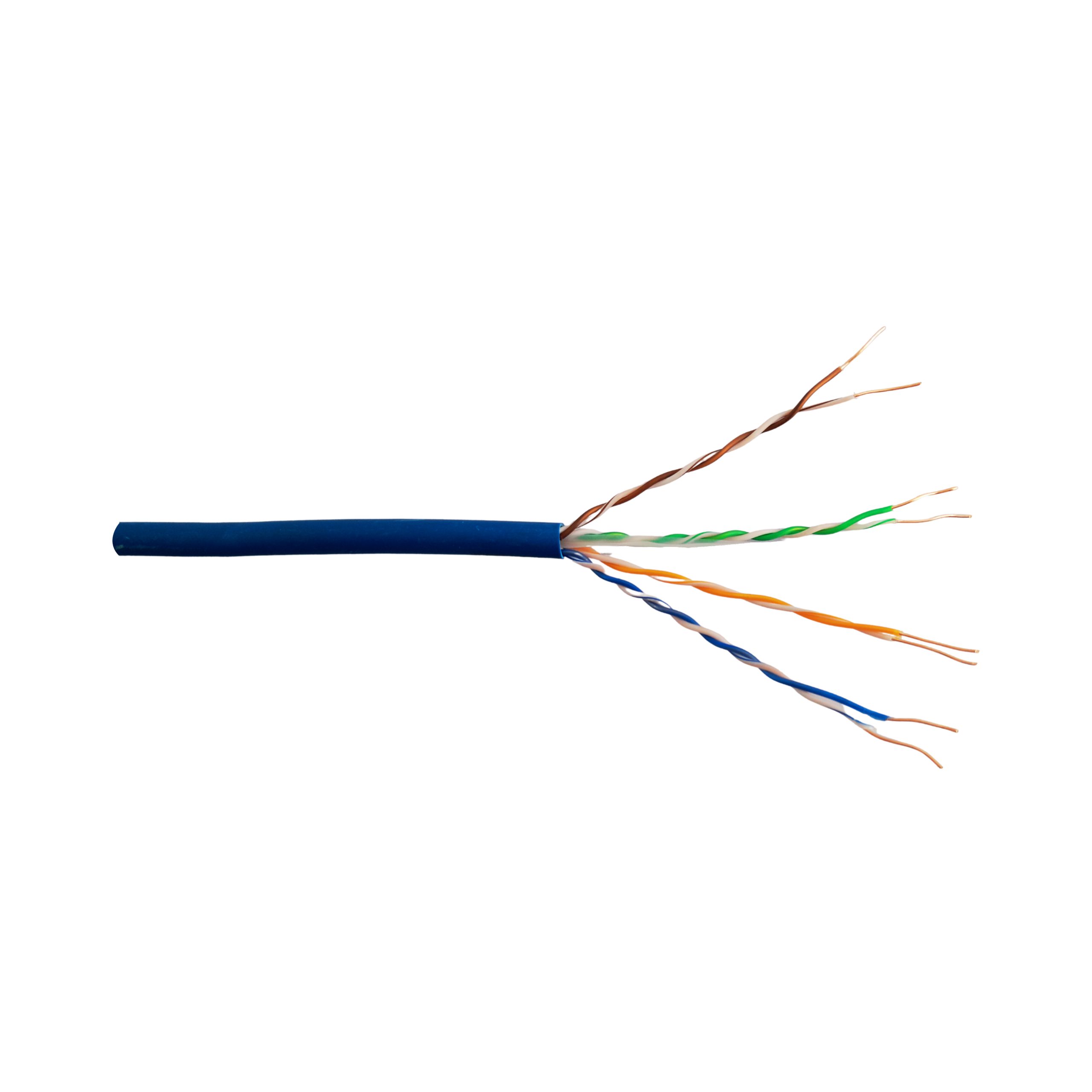

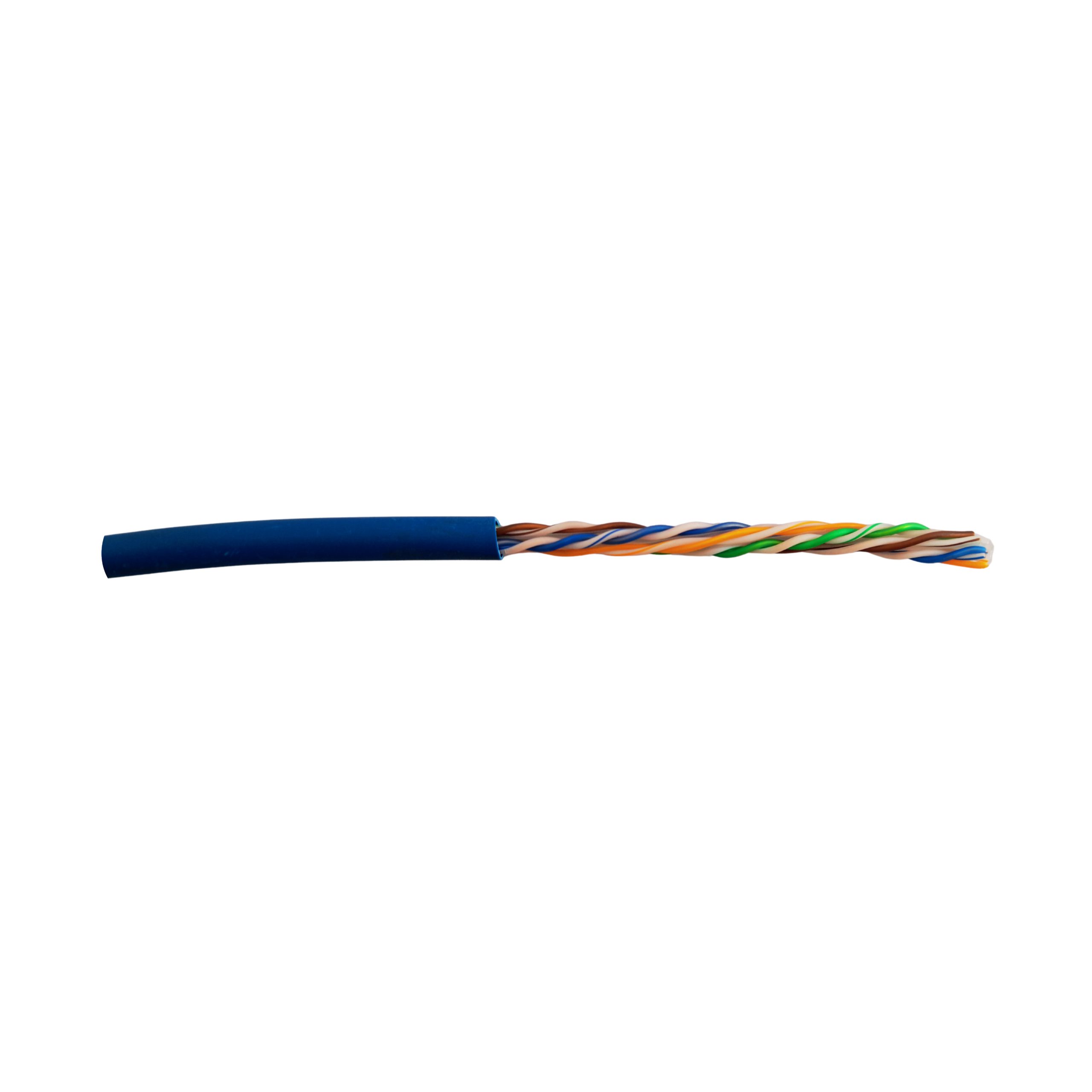

Cable Design

• Conductor Copper Wire, AWG 23/1

Cable Design

• Conductor insulation Solid PE
• Twisting 2 cores to a pair
• Outer jacket material LSZH/FRNC
• Outer jacket colour Light blue
• Part Number
  XE004239861
