Description

Features and Benefits.

• U/UTP 550/24 cable designed up to 550 MHz.
• Fulfils all requirements of category 6A EN50288-11-1 and IEC 61156-5.
• Suitable for Classe D to EA according to ISO/IEC 11801. EN50173 and 10 Gigabit Ethernet according to IEEE 802.3an.
• Tested and approved for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W.
• Low smoke and halogen-free (LSZH).
• Unshielded cable (U/UTP).

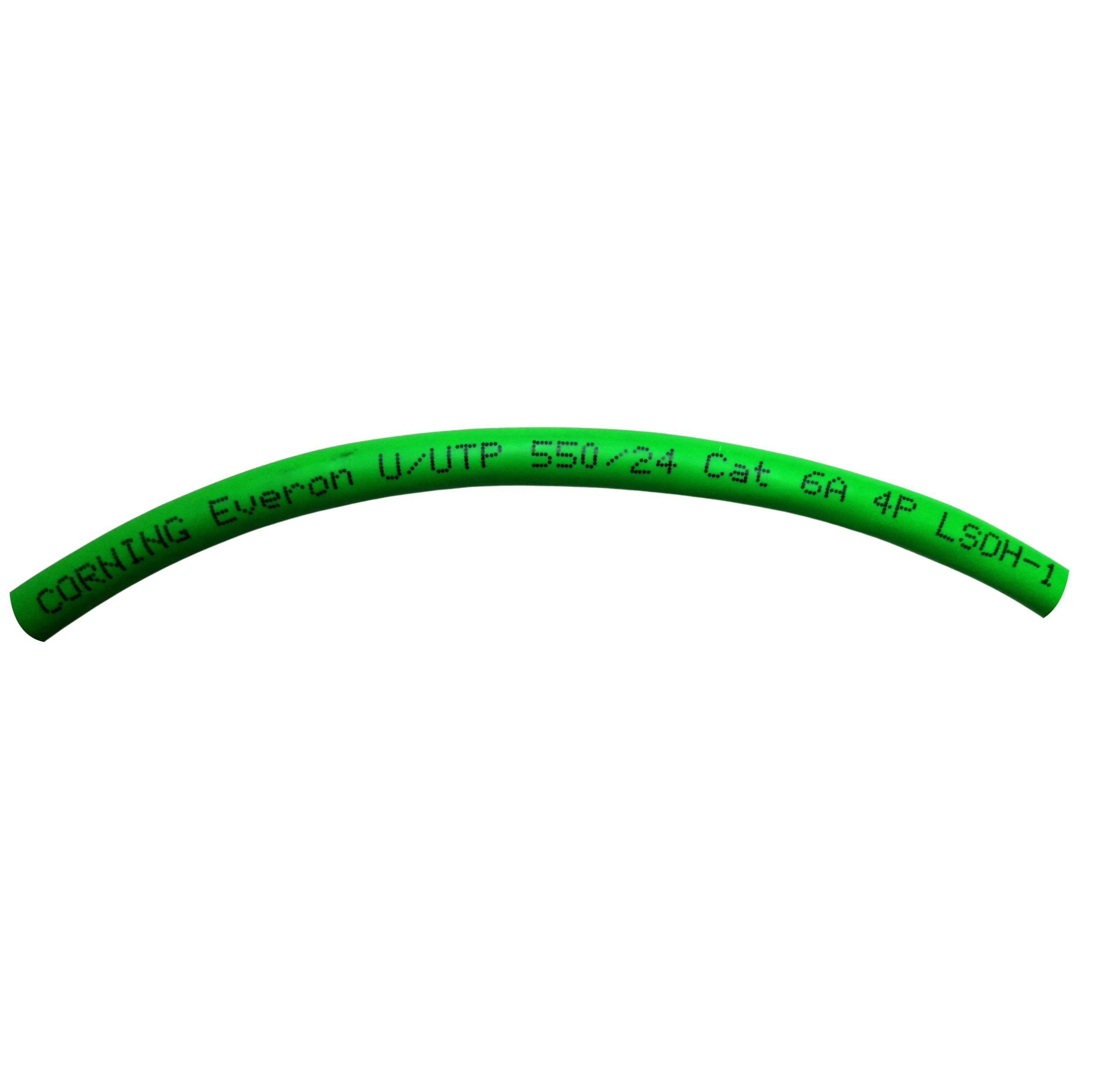

• Length marking on jacket.
• Eca.

General Specifications.

• Category 6A
• Cable Type U/UTP
• Halogen-free Yes
• Construction Simplex, 4P
• Reaction to Fire Eca
• Brand Everon®


Standards.

• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings IEC 61156-5, EN 50288-11-1, ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-C.2, IEC 60304
• Design and Test Criteria 1000 Base-T IEEE 802.3 an; PoE / PoE++ IEEE 802.3af, IEEE 802.3at
• Flame propagation test IEC 60332-1
• Smoke density IEC 61034-2
• Halogen content test Zero Halogen to IEC 60754-1
• Level of corrosion Non-corrosive according to IEC 60754-2

Environmental Conditions.

• Temperature Range, Installation 0°C to 50°C
• Temperature Range, Operation-20°C to 60°C

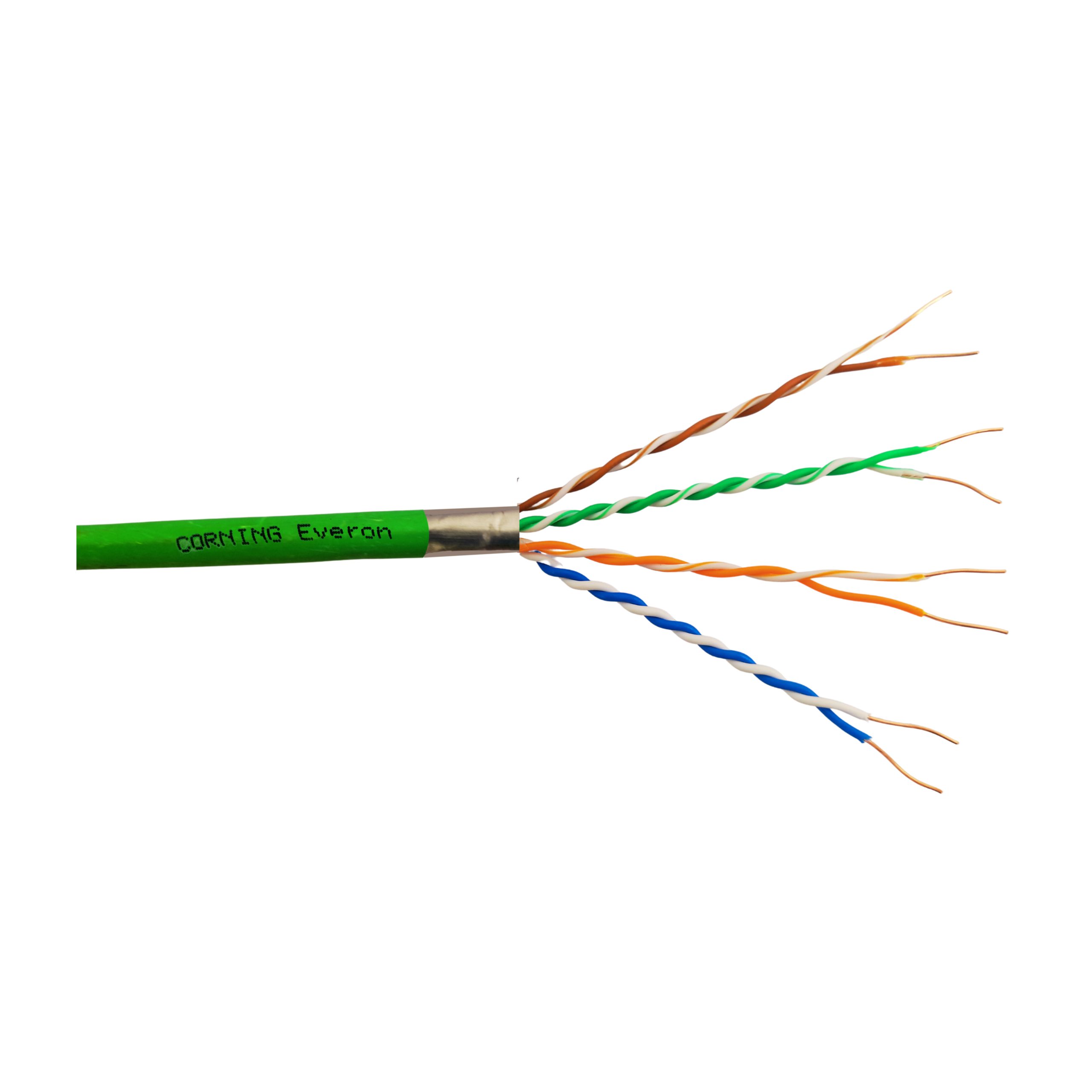

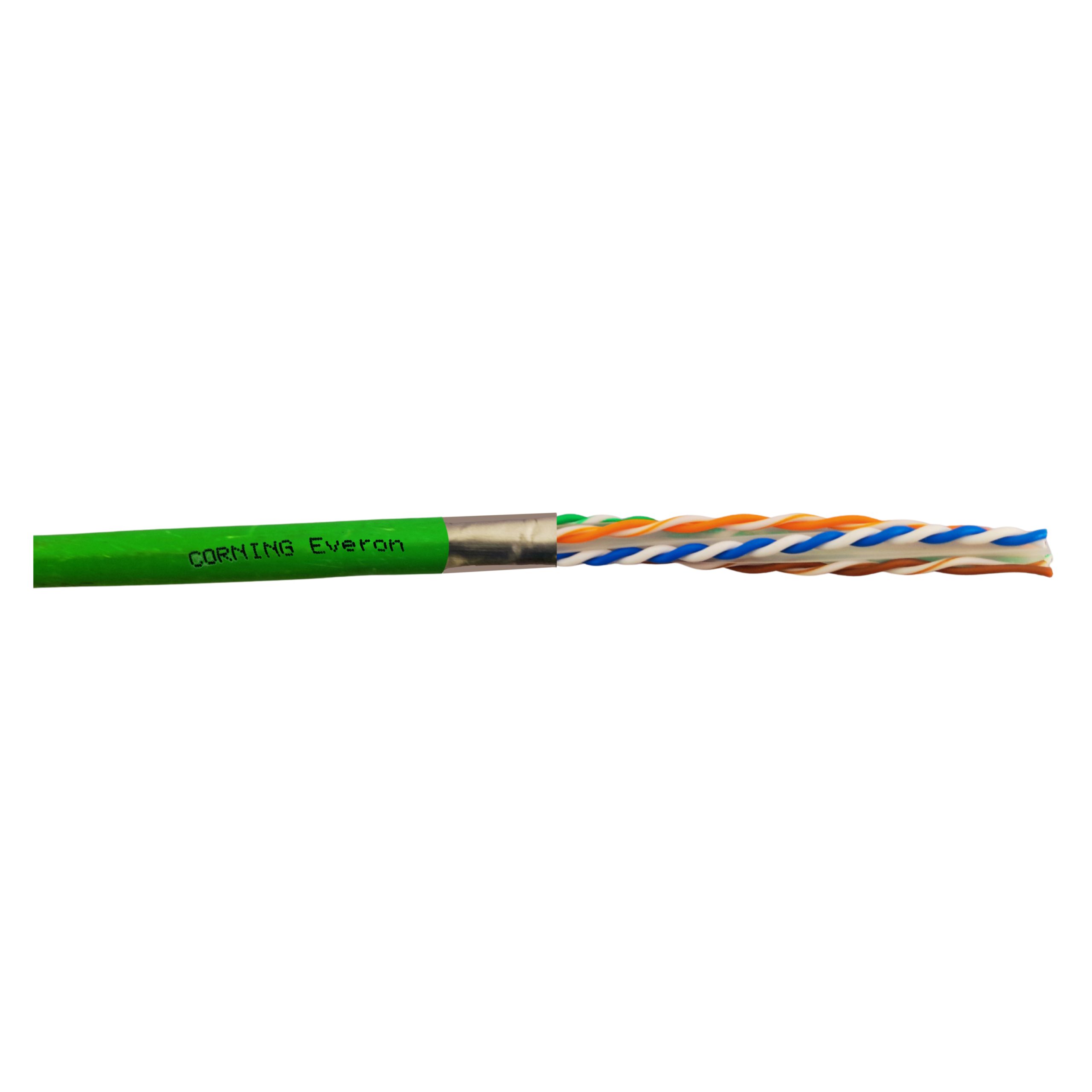

Cable Design.

• Conductor Copper Wire, AWG 24/1
• Conductor Insulation Halogen-free foam-skin material
• Twisting 2 cores to a pair
• Outer Jacket Material LSZH/FRNC

Cable Design.

• Outer Jacket Color Green
• Mechanical Specifications.
• Fire Load 1260MJ/km
• Nominal Outer Diameter 7.3mm
• Min. Bend Radius Installation 8x Cable-Ø
• Maximum Tensile Strength 160N

Electrical Characteristics.

• Conductor resistance unbalance 2%
• Delay skew 45ns/100 m
• Max. loop resistance 190Ω/km
• Propagation delay 545ns/100 m
• Voltage rating Less than 75 V DC max and less than 50 V AC max
• Propagation Velocity at >10 MHz (NVP*c) 69%
• Coupling Attenuation 40dB
• Insulation Resistance > 5000 MΩ*km
• Part Number
  UU004891568
