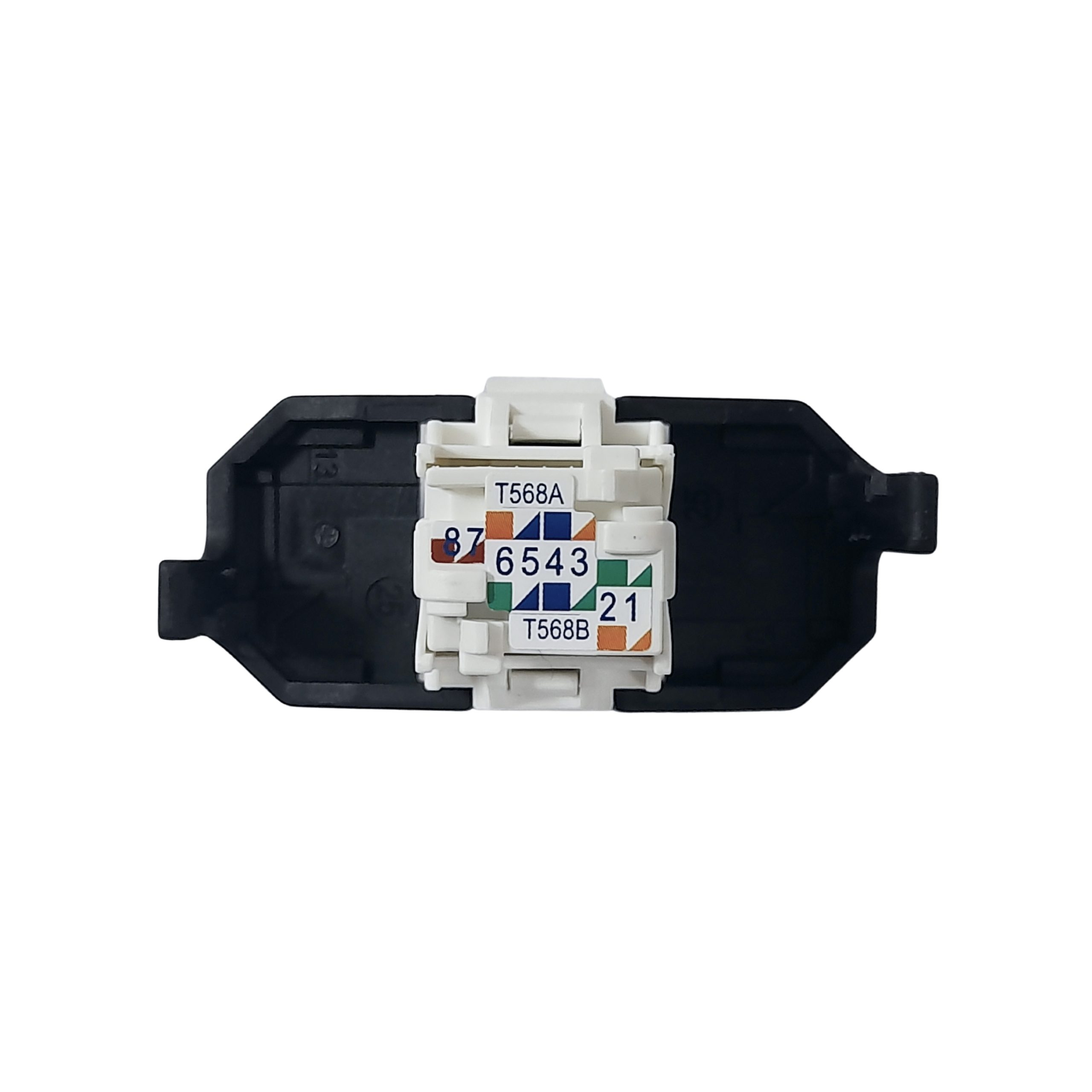

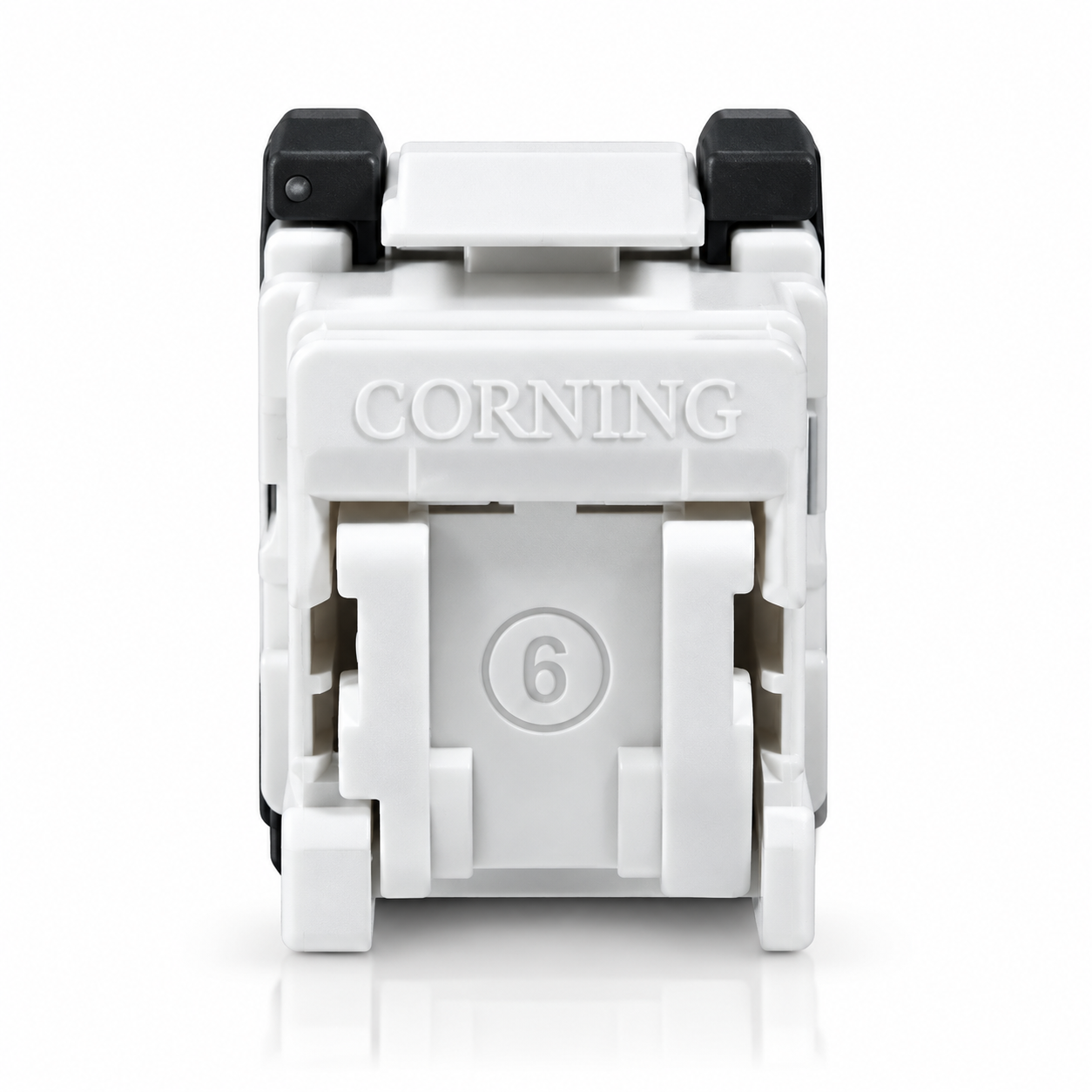

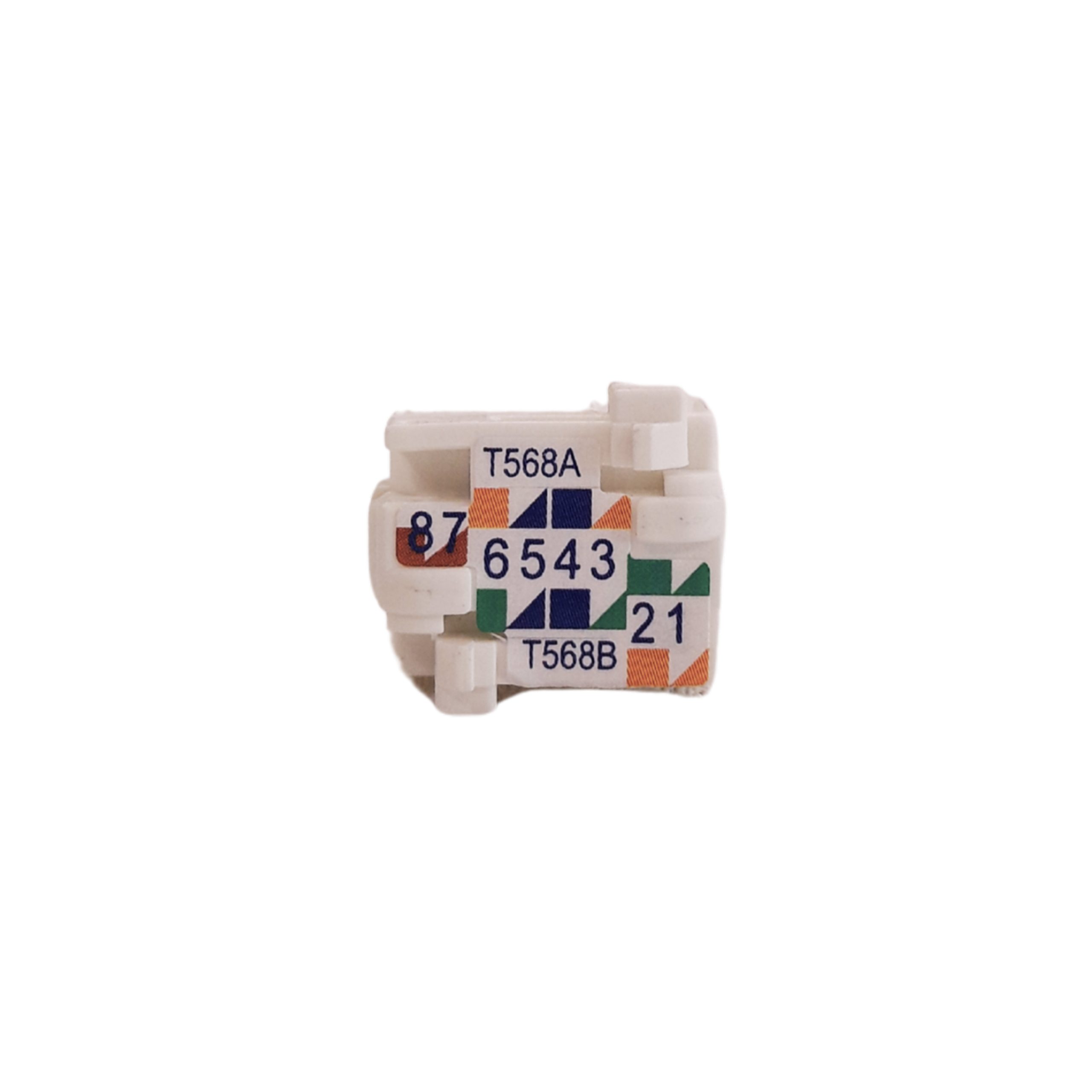

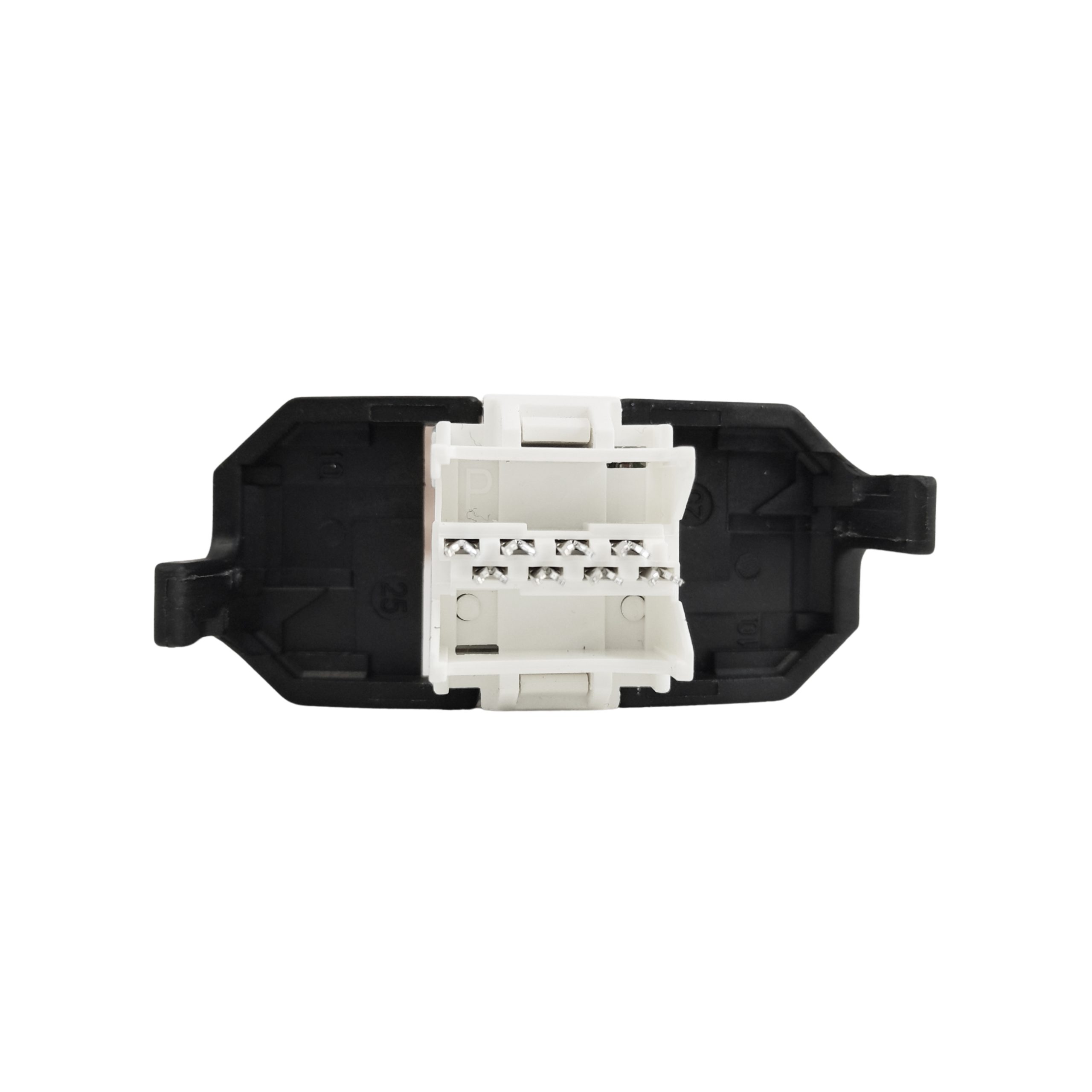

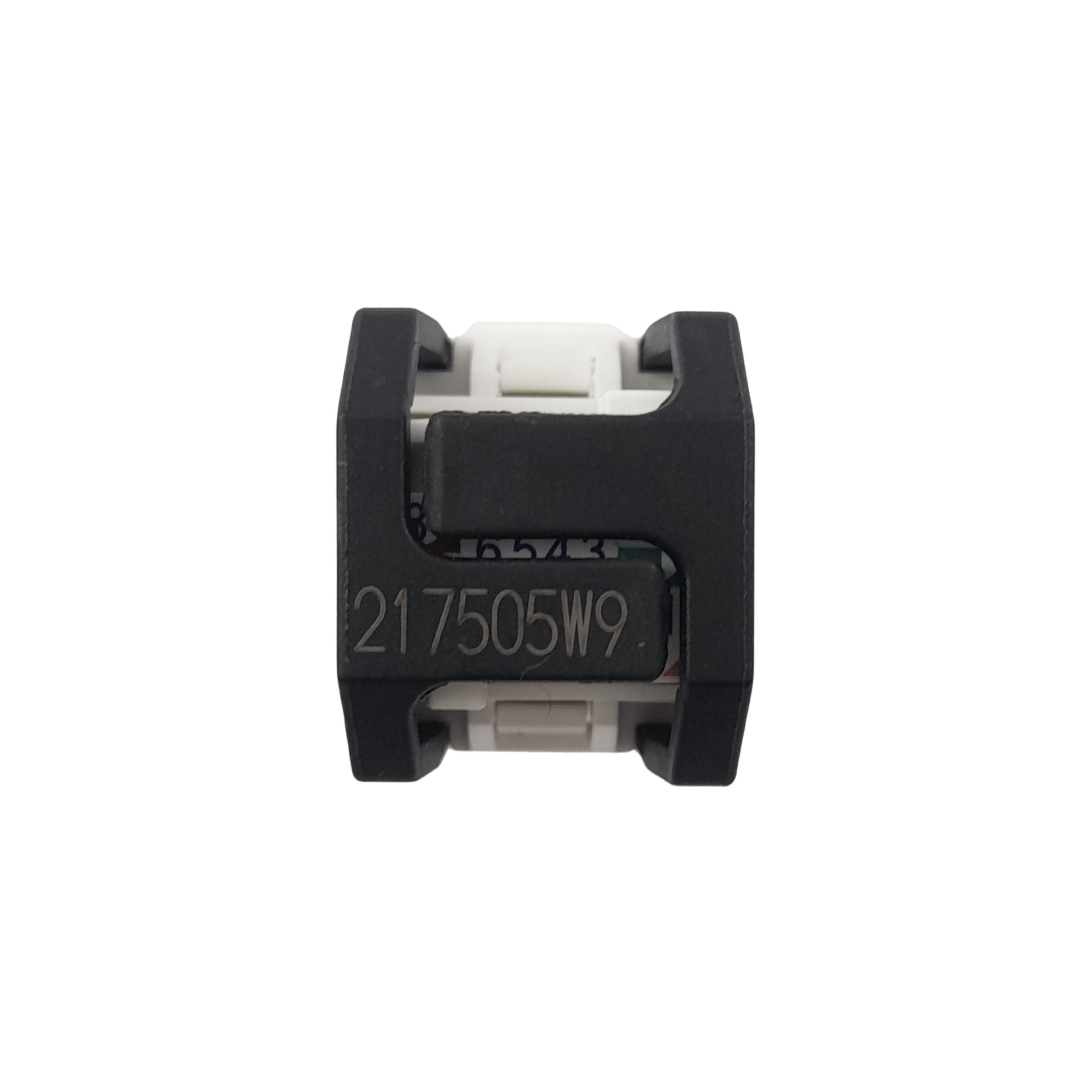

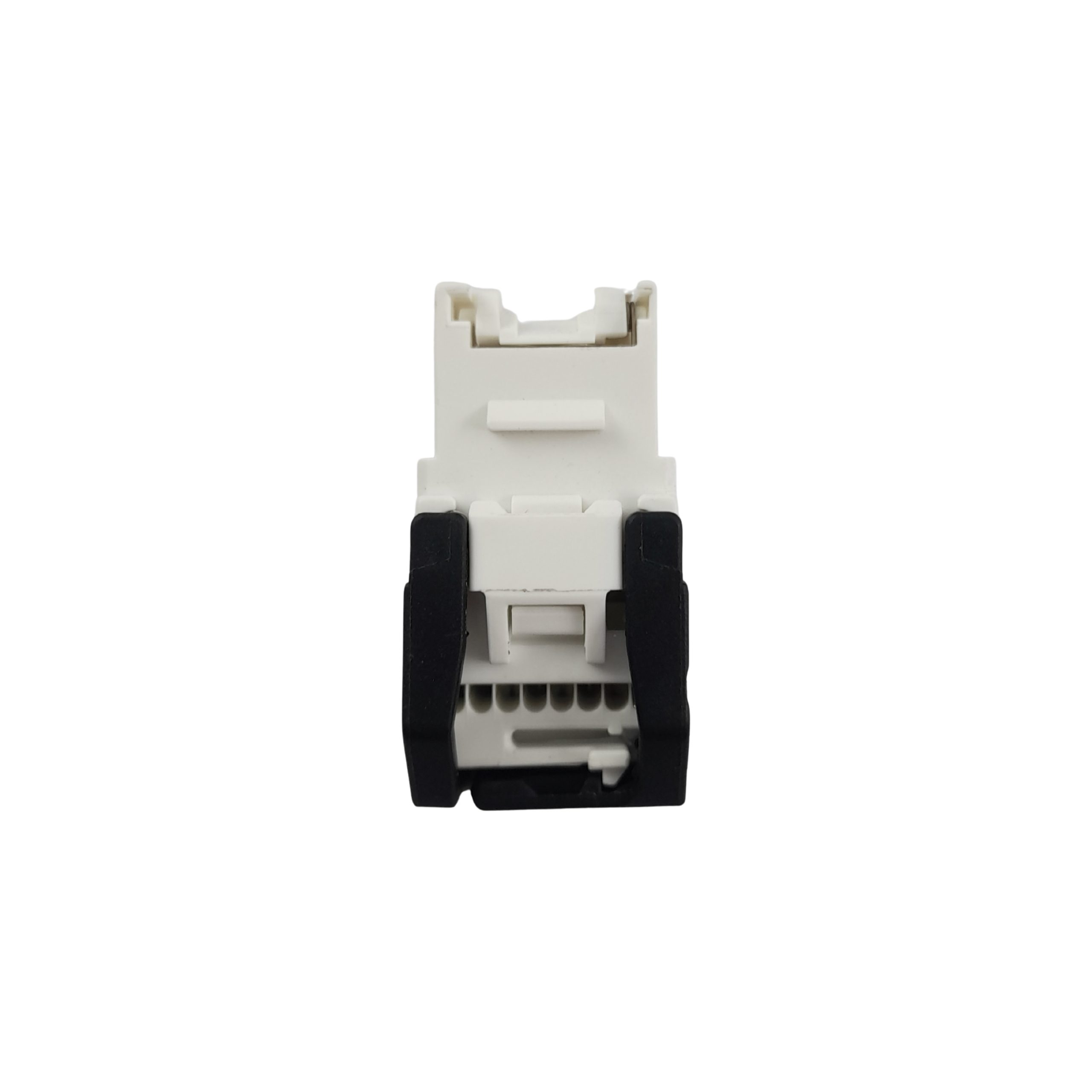

Description

Features and Benefits

• Tool-less jack
  Easy and quick to install – reliable connection The conductors are wired in a single operation

• Two cable entry points
  Less cable bending required – better compliance with minimum bend radius Enables a wide range of cable routing options Easy to use in tight spaces

• Reusable
  Jack can be reused even after wiring mistake
• No untwisting of pairs before termination
  Minimized stripping length – limited pair untwist – pairs kept together, no wire guide required

• Clip-in mounting
  Designed to fit many other accessories

• Accepts solid and stranded conductors
  Enables “jack-to-plug” cables to be manufactured using stranded conductors
• Integral shutter
  No additional shuttering required on faceplates

General Specifications

• Category 6

Standards

• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings ISO/ IEC 11801 Edition 2. Arm 1-2,EN 50173-1 : 2011,ANSI/ TIA/ EIA-568-C.2-2009,ISO 60512-99-01
• Design And Test Criteria IEEE 802.3 1GBASE-T, IEEE 802.3at

Design

• Jack Type RJ45 – 8/8
• Housing material Plastic
• Colour White
• Insulation diameter max. 1.6mm
• Conductor AWG 26 – 22
• Number of Stranded Wires 7

Mechanical Specifications

• Contact surface Gold, 1.6 µm
• Reproducibility Several times reusable
• Solid Wire Diameter 5mm to 65mm

Electrical Specifications

• Lead Through Resistance < 200 mΩ
• Insulation resistance > 500 MΩ
• Voltage Rating (Maximum) <75
• Part Number
  FQ100031241
