Description

Features and benefits

PoE capable
The switch is PoE+ capable, delivering a total PoE output of 225 W and a maximum PoE output of 30 W on a single port.
It uses an advanced PoE chip, ensuring high availability and compatibility.

Multiple working modes
The switch can operate in standard, isolation, aggregation, or clone mode and supports one-key switching of the working mode.

High performance
With a cache sharing architecture, the switch multiplies the available cashing space for each port, greatly enhancing the
forwarding performance especially in the event of unexpected and sudden traffic bursts.

High reliability
Integrated with enterprise-level lightning protection circuit.
Built with a high-voltage power supply.

Technical specifications

• Dimensions (H × W × D)
  44 × 440 × 210mm (1.73 × 17.32 × 8.27 in)

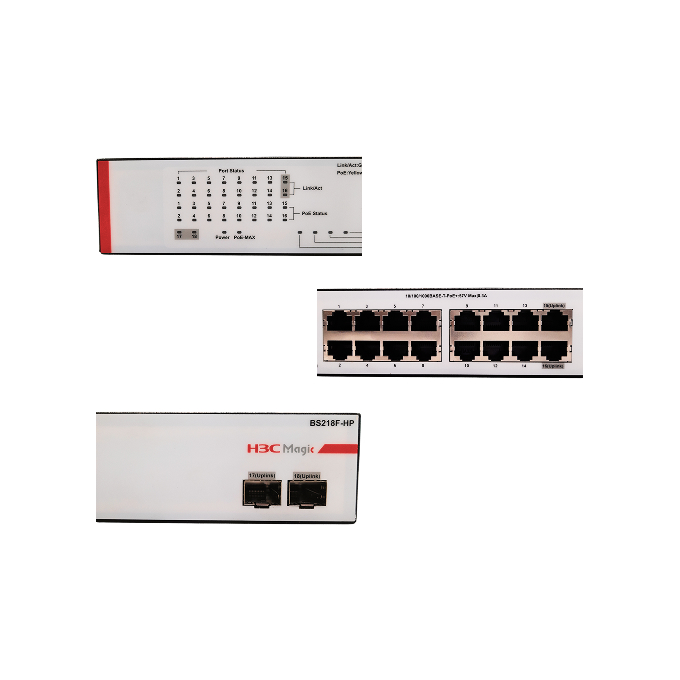

• Ports
  16 × 10/100/1000BASE-T copper ports (2 uplink ports)
  2 × 1000BASE-X SFP ports (uplink ports)
• Operating mode
  Standard
  Isolation
  Aggregation
  Clone
• MAC address entries
  8K
• Switching capacity
  36 Gbps
• Forwarding capacity
  26.8 Mpps
• Packet caching
  4 Mb
• Switching mode
  Store-and-forward switching
• PoE+
  PoE+ supported
  Supports PoE Power up to 225 W for all PoE ports(16 PoE ports)
  Supports PoE Power up to 30 W for each PoE port
• Power
  100 to 240V AC
• Part Number
  H3C Magic BS218F-HP-UK
