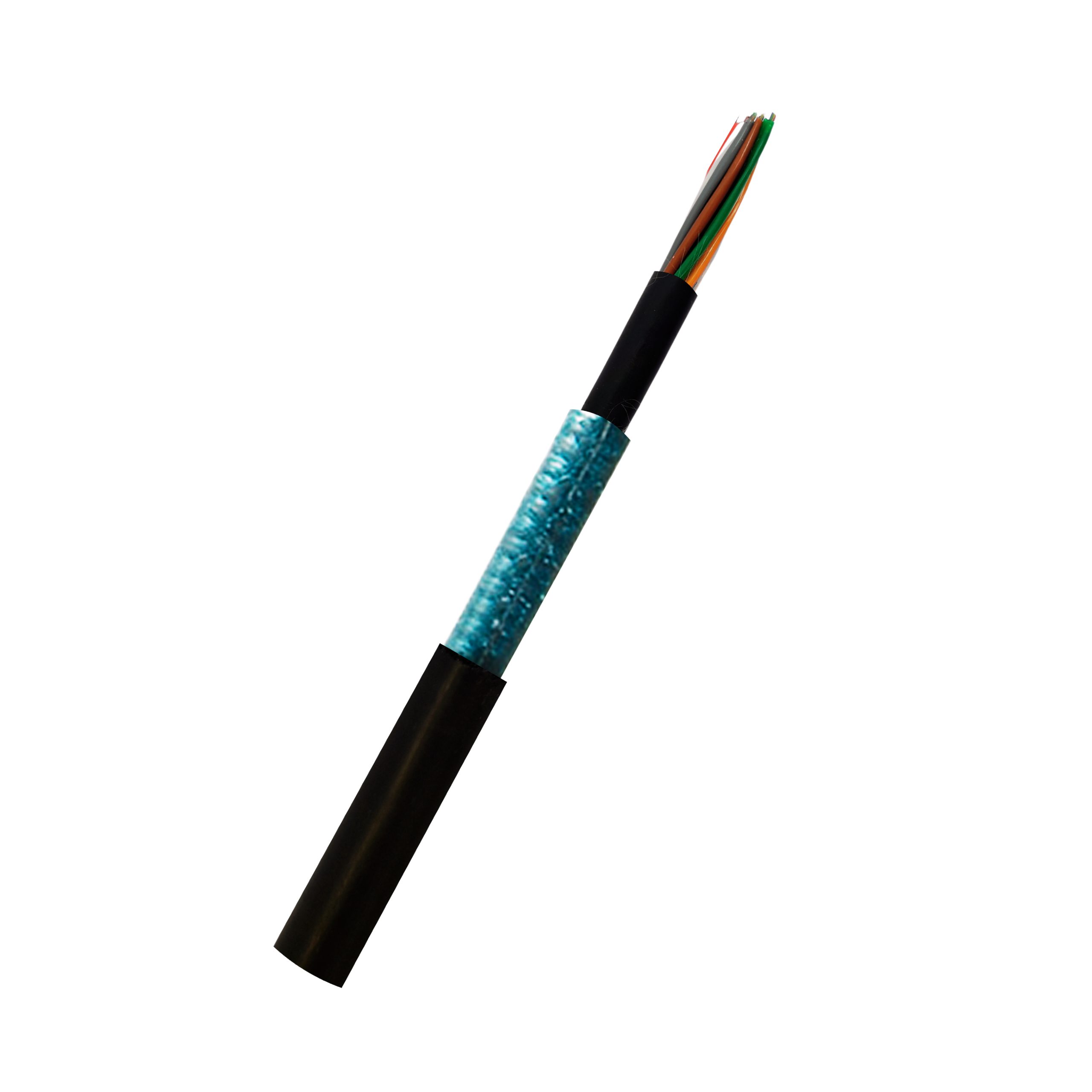

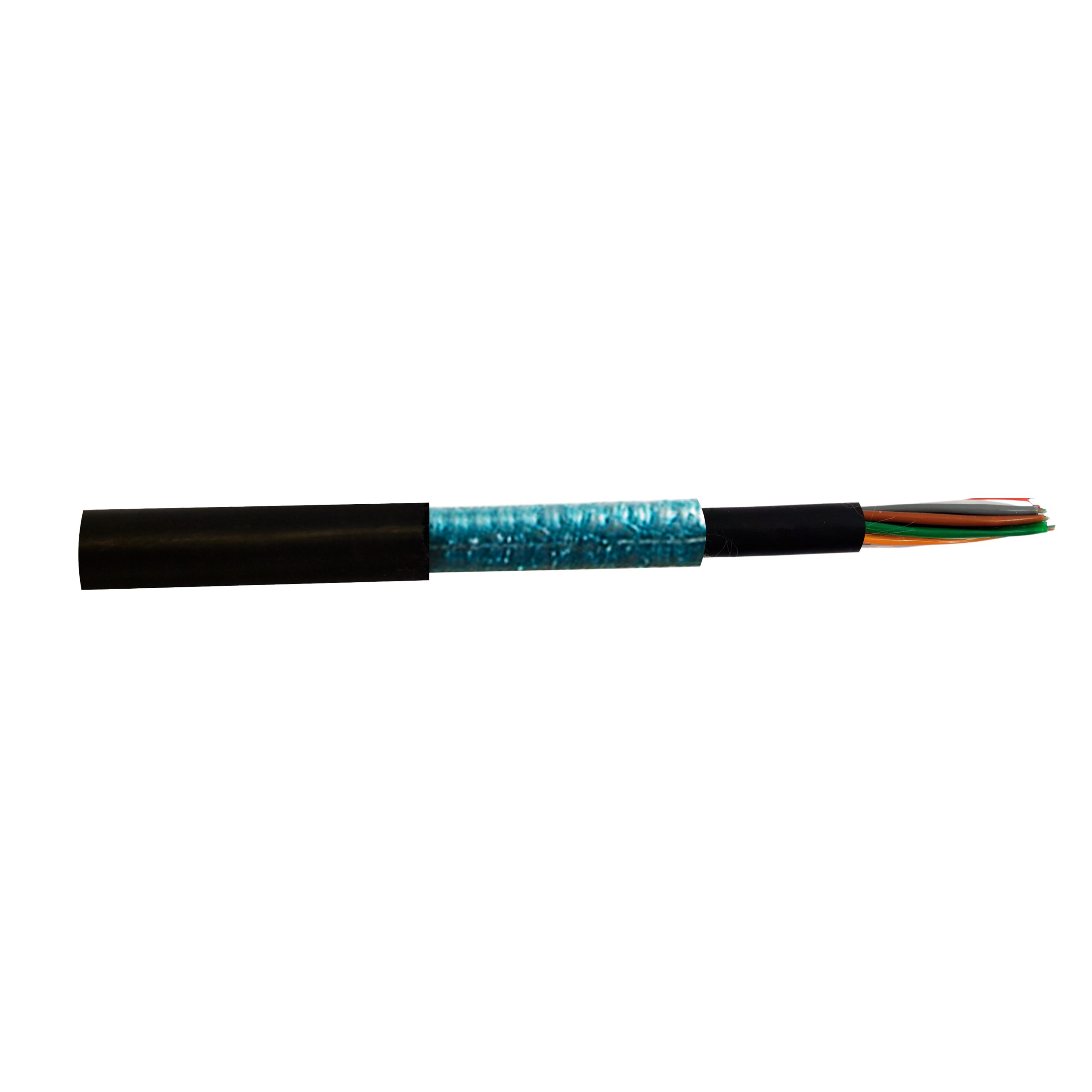

Description

Features and Benefits

• Waterblocking technology
  OSP (outdoor) applications
• Corrugated steel armouring
  Rodent, mechanical protection and direct buried
  applications
• UV- and microbe-resistant
  Can be installed in ducts or conduits
• Dry cable core by means of water swellable elements
  Allows efficient and craft-friendly cable preparation in
  outdoor applications
• Fibres/buffer tubes colour coded to Telcordia-Bellcore
  Easy identification of the individual tubes and fibres
• SZ-stranded, loose tube design
  Isolates fibres from installation and environmental rigors
  and facilitates mid-span access

General Specifications

• Installation Methods Direct Buried, Duct
• Cable type Loose tube
• Environment Outdoor
• Product type Corrugated steel armour
• Fibre category Single-mode (OS2)
• Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) A-DQ(ZN)(SR)2Y
• Cable geometry Round

Standards

• Fibre Standards TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ITU-T
  G.652.D, ISO/IEC 11801 Ed.2.2
• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Waterblocking IEC 60794-1-2 F5

Environmental Conditions

• Temperature range, installation-5°C to 50°C
• Temperature range, operation-30°C to 70°C
• Temperature range, storage-40°C to 70°C

Cable Design

• Cable marking Metre – Handset – Sine – CORNING – Year -ALTOS (R) A
  DQ(ZN)(SR)2Y 4X12 E9 LT 2.3
• Central element Dielectric
• Fibre count 48
• Number of ripcords 2
• Outer jacket colour Black
• Outer jacket material Linear Low Density Polyethylene (LLDPE)
• Part Number
  048ERC-T3122A20
