Description

Features and Benefits

• Waterblocking technology
  Outside Plant (OSP) applications
• UV and microbe resistant
  Can be directly buried or installed in ducts
• Corrugated steel armoring
  Rodent, mechanical protection and direct buried
  applications
• Small diameter and bend radius
  Easy installation in space-constrained areas
• Fibers color coding to Telcordia-Bellcore
  Easy identification of the individual fibers

General Specifications

• Installation Methods Direct Buried, Duct
• Cable Type Single Tube
• Environment Outdoor
• Product Type Corrugated Steel Armor
• Fiber Category Single-mode (OS2)
• Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) A-DQ(ZN)(SR)2Y
• Cable geometry Round

Standards

• Fiber Standards TIA/EIA-492CAAB, IEC 60793-2-50 Type B1.3, ITU-T
  G.652.D, ISO/IEC 11801 Ed.2.2
• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Waterblocking IEC 60794-1-2 F5

Environmental Conditions

• Temperature Range, Installation-5°C to 50°C
• Temperature Range, Operation-20°C to 60°C
• Temperature Range, Storage-25°C to 70°C

Cable Design

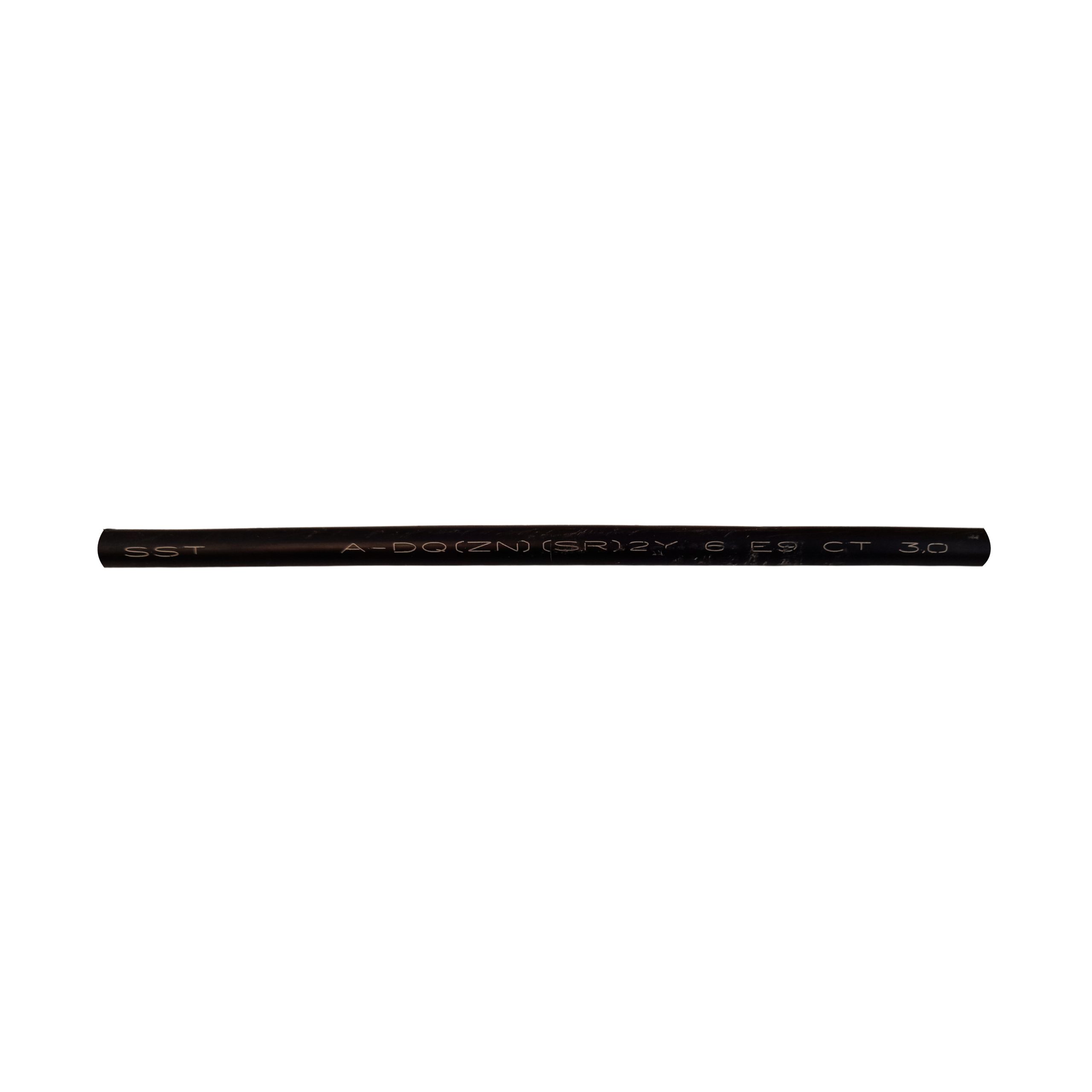

• Cable Marking Meter – Handset – Sine – CORNING – Year -SST (TM) A
  DQ(ZN)(SR)2Y 6 E9 CT 3.0
• Fiber Count 6
• Number of Ripcords 2
• Outer Jacket Color Black
• Outer Jacket Material Linear Low Density Polyethylene (LLDPE)
• Outer Jacket Nominal Thickness 1.5mm
• Part Number
  006EEC-13122A20
