Description

Features and Benefits

• Waterblocking technology
  OSP (outdoor) applications
• UV- and microbe-resistant
  Can be installed in ducts or conduits
• Corrugated steel armouring
  Rodent, mechanical protection and direct buried
  applications
• Small diameter and bend radius
  Easy installation in space-constrained areas
• Fibres colour coding to Telcordia-Bellcore
  Easy identification of the individual fibres
• Flame retardant
  LSZH™/FRNC

General Specifications

• Installation Methods Direct Buried, Duct, Horizontal, Riser
• Cable type Central Tube
• Environment Indoor/Outdoor
• Product type Corrugated steel armour
• Fibre category 50 µm MM (OM3)
• Flame rating LSZH/FRNC
• Coding according to EN 60794-1-1 (DIN VDE 0888-100-1) U-DQ(ZN)(SR)H
• Cable geometry Round

Standards

• Reaction to Fire Eca
• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Waterblocking IEC 60794-1-22 Method F5B
• Flame propagation test Flame retardant according to IEC 60332-1-2 (single cable)
• Reaction to Fire Requirements Reaction to fire according to EN 50575 and EN 13501-6

Environmental Conditions

• Temperature range, installation-5°C to 50°C
• Temperature range, operation-30°C to 75°C
• Temperature range, storage-40°C to 75°C
• Temperature range, storage (stored on drum with original
  packing)-40°C to 75°C

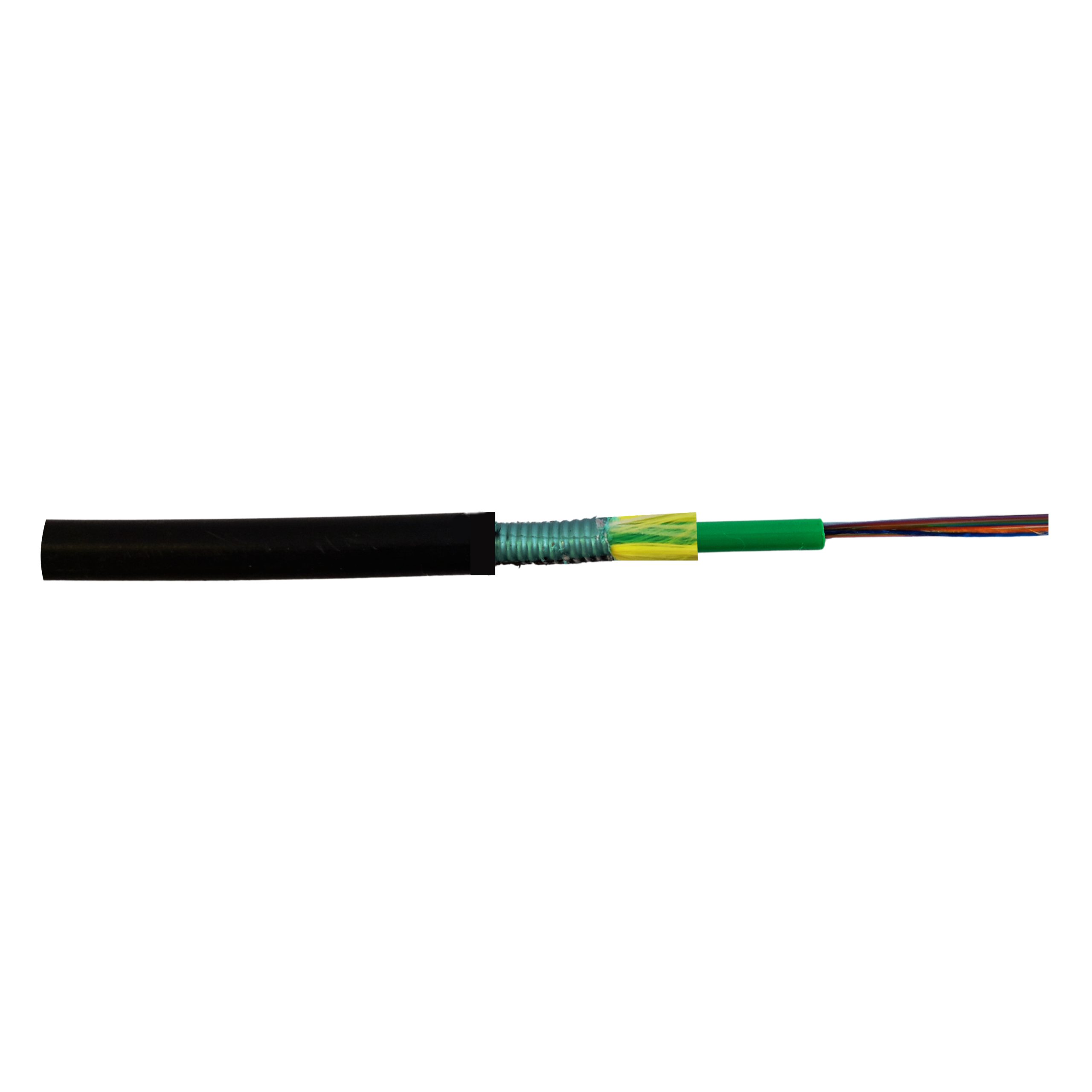

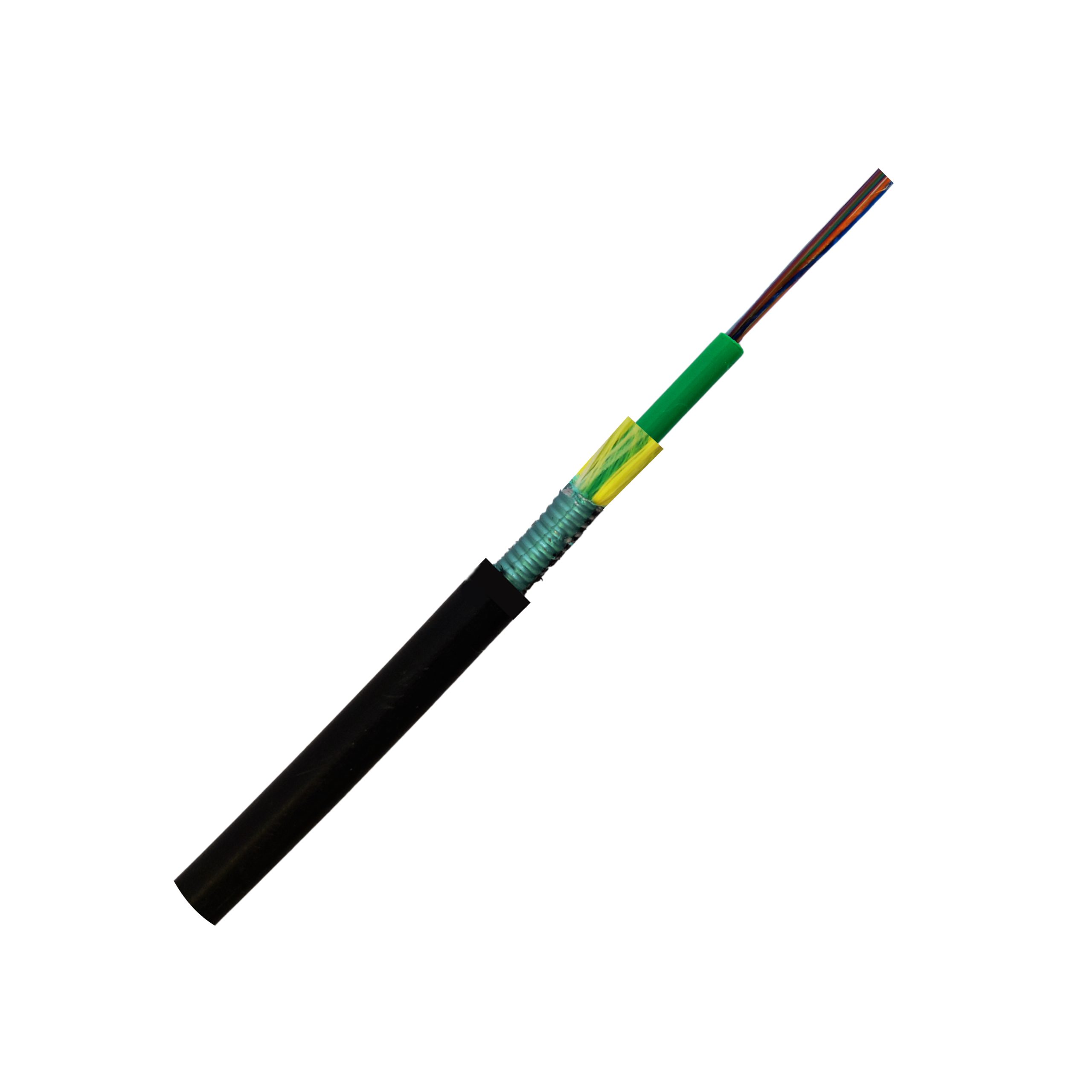

Cable Design

• Cable marking
  Metre – Handset – CE 17 EN 50575 Eca – Sine – CORNING
  Fiber Optic Cable – Year – U-DQ(ZN)(SR)H 8 OM3CC CT 3.0
  LSZH(TM)/FRNC
• Fibre count 8
• Number of ripcords 2
• Outer jacket colour Black
• Outer jacket material Flame-retardant, non-corrosive/low-smoke, zero-halogen
  (FRNC/LSZH) material
• Outer jacket nominal thickness 1.5mm
• Tensile strength elements and/or armouring – Layer 1 Aramid yarn with swellable elements
• Tensile strength elements and/or armouring – Layer 2 Corrugated steel tape armour with water-swellable tape
• Buffer tube diameter 3mm
• Buffer tube water blocking Thixotropic gel
• Fibre colouring Blue, orange, green, brown, grey, white, red, black
• Fibres per tube 8
• Part Number
  008TEY-13188H2G
