Features and Benefits

• U/UTP 450/24 cable designed up to 450 MHz
• Fulfils all requirements of category 6 EN50288-6-1 and
  IEC 61156-5
• Suitable for Classe D to E according to ISO/IEC 11801.
  EN50173 and 10 Gigabit Ethernet according to IEEE
  802.3an
• Tested and approved for Power over Ethernet applications
  (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE
  802.3at and IEEE 802.3bt up to 90W
• PVC Indoor jacket
• Unshielded cable (U/UTP)
• Length marking on jacket
• Eca

Specifications

• Category
  6
• Cable type
  U/UTP
• Halogen-free
  No
• Construction
  Simplex, 4P
• Reaction to Fire
  Eca
• Legacy Part Number
  VOL6UP4305
• Brand
  Everon®

Standards

• RoHS
  Free of hazardous substances according to RoHS 2011/65/EU
• Approvals and Listings
  IEC 61156-5, EN 50288-6-1, ISO/IEC 11801 Ed. 2.2, EN
  50173-1, ANSI/TIA-568-C.2, IEC 60304
• Design And Test Criteria
  Compliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at,
  IEEE 802.3 an 1000 Base-T
• Flame propagation test
  Flame retardant according to IEC 60332-1-2 (single cable)
• Smoke density
  IEC 61034-2
• Cable Design
• Conductor
  Copper Wire, AWG 24/1
• Conductor insulation
  Solid PE
• Twisting
  2 cores to a pair
• Outer jacket material
  PVC
• Outer jacket colour
  Blue
• Part Number
  UU008177758
• Product Name

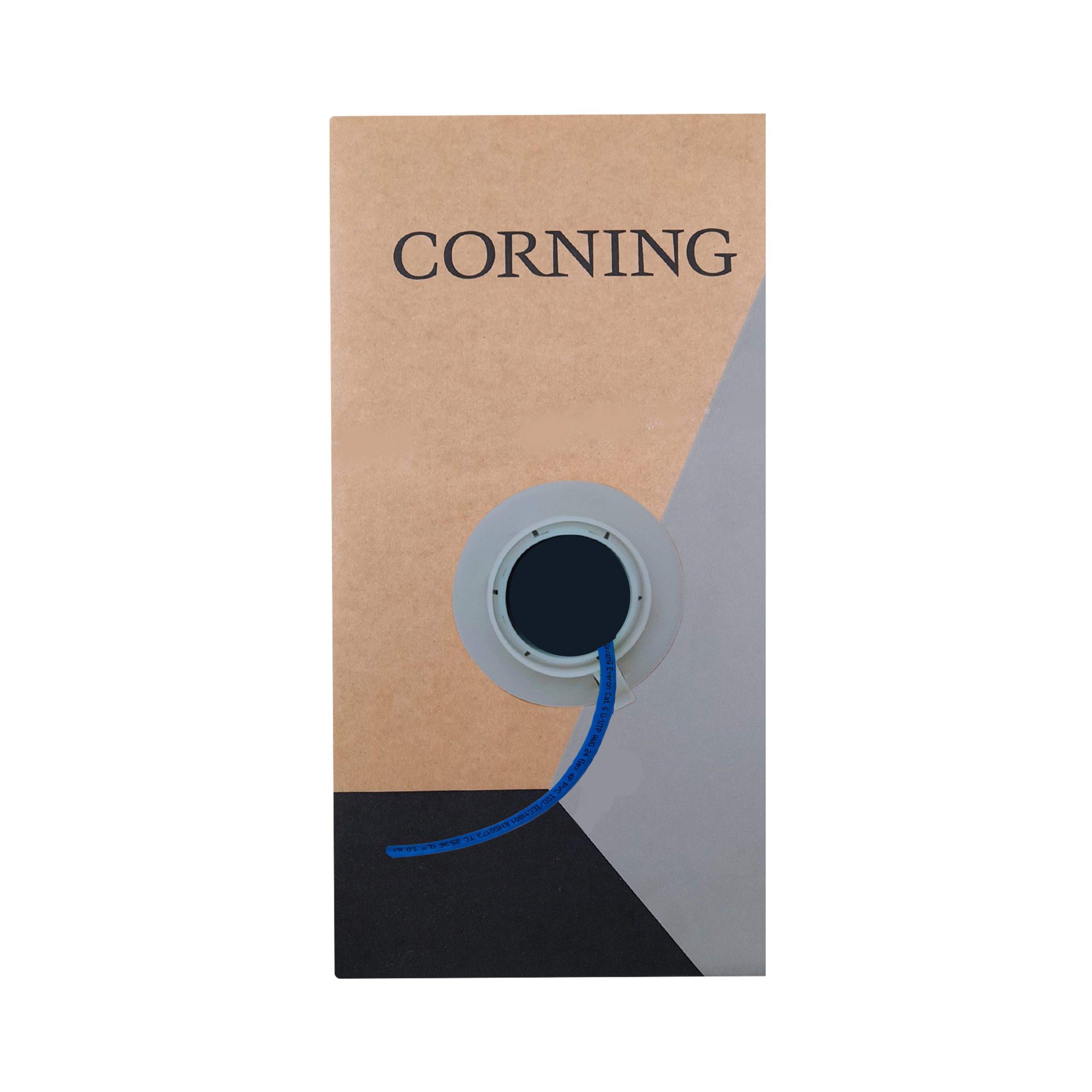

  CAT6 U/UTP 24AWG PVC Blue
