Description

Features and Benefits.

• F/FTP 550/23 cable specified up to 550 MHz.
• Fullfill the requirements of the standarts IEC 61156-5; EN 50288-10-1.
• Suitable for Classe D to E according to ISO/IEC 11801. EN50173 and 10 Gigabit Ethernet according to IEEE 802.3an.
• Tested and approved for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W.
• Low smoke and halogen-free (LSZH).

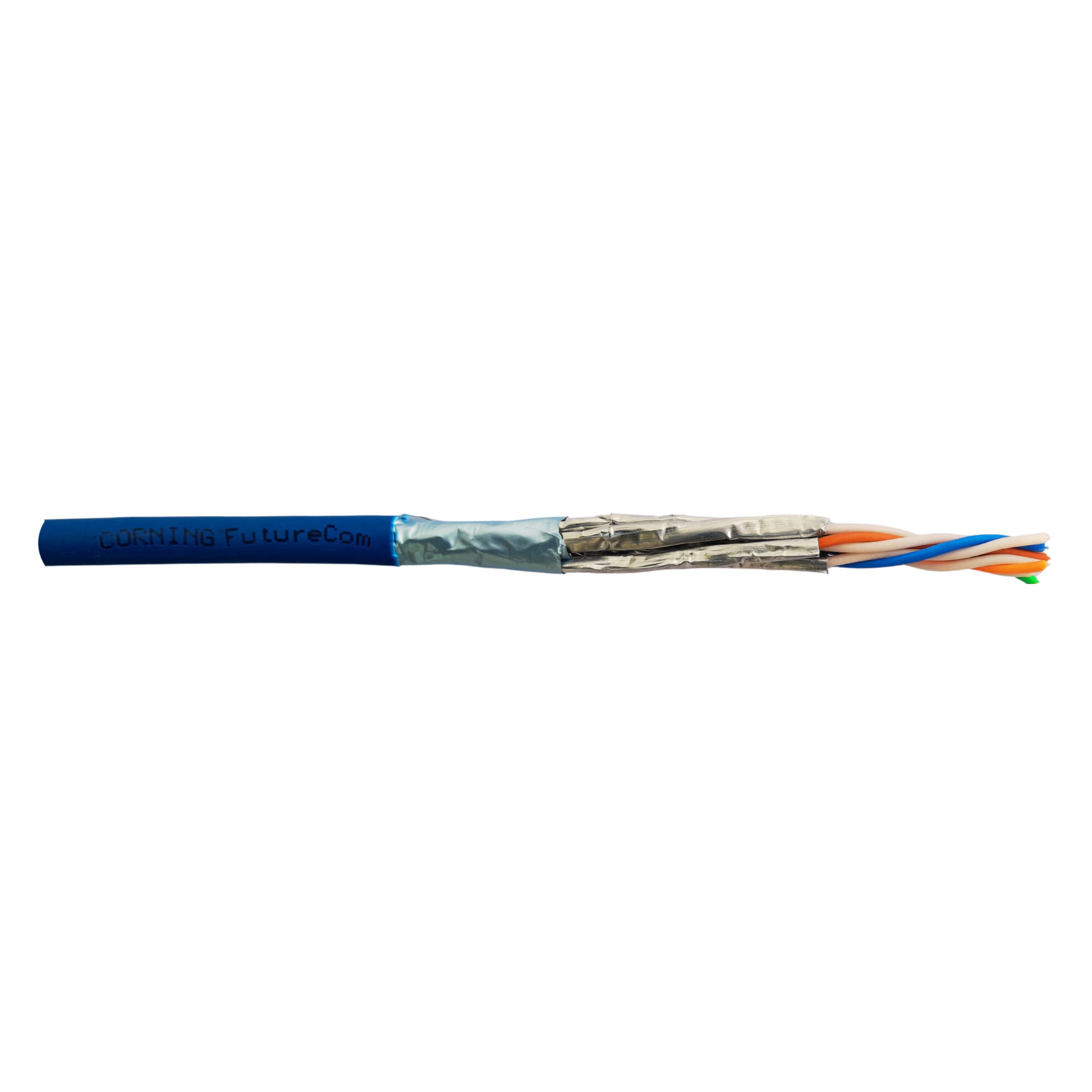

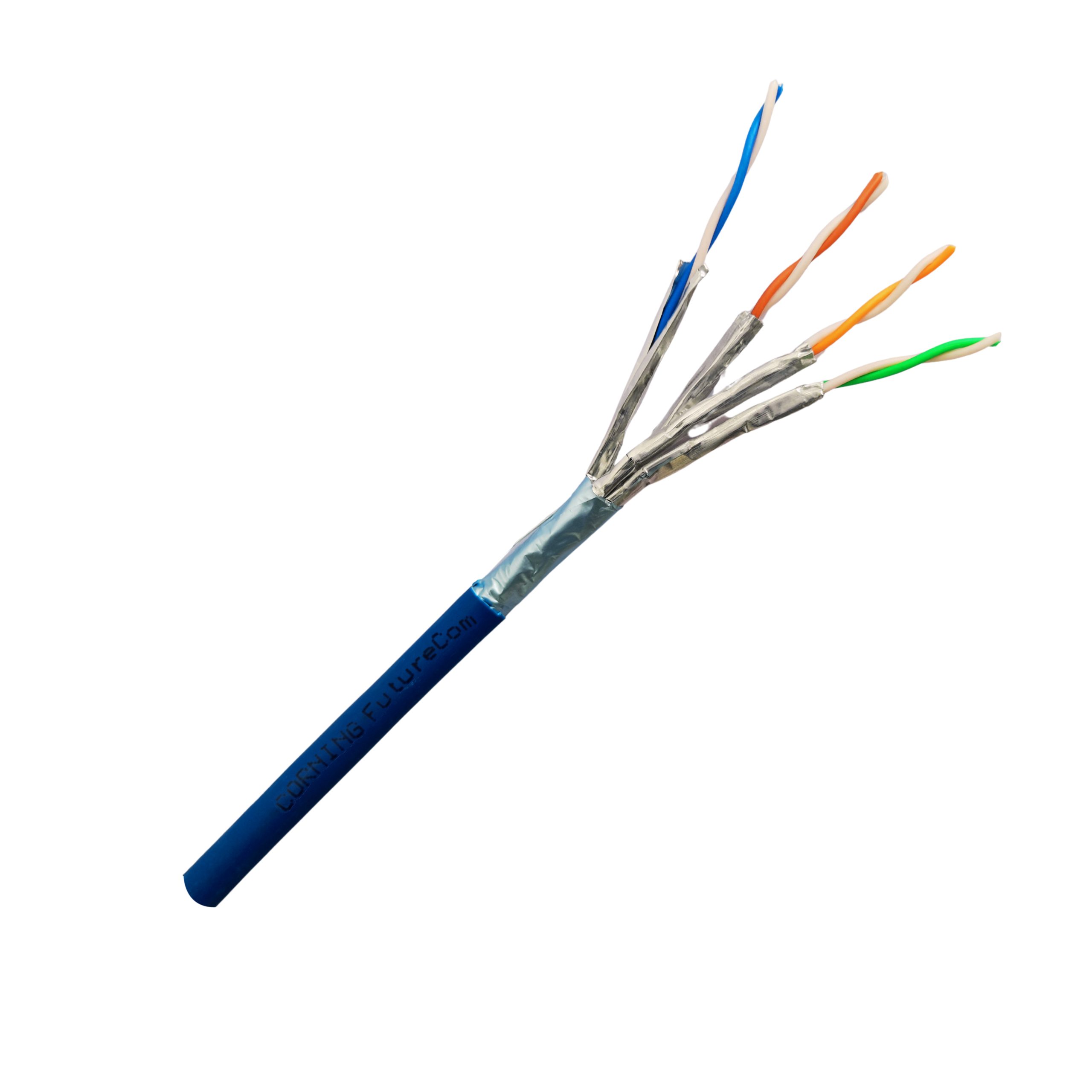

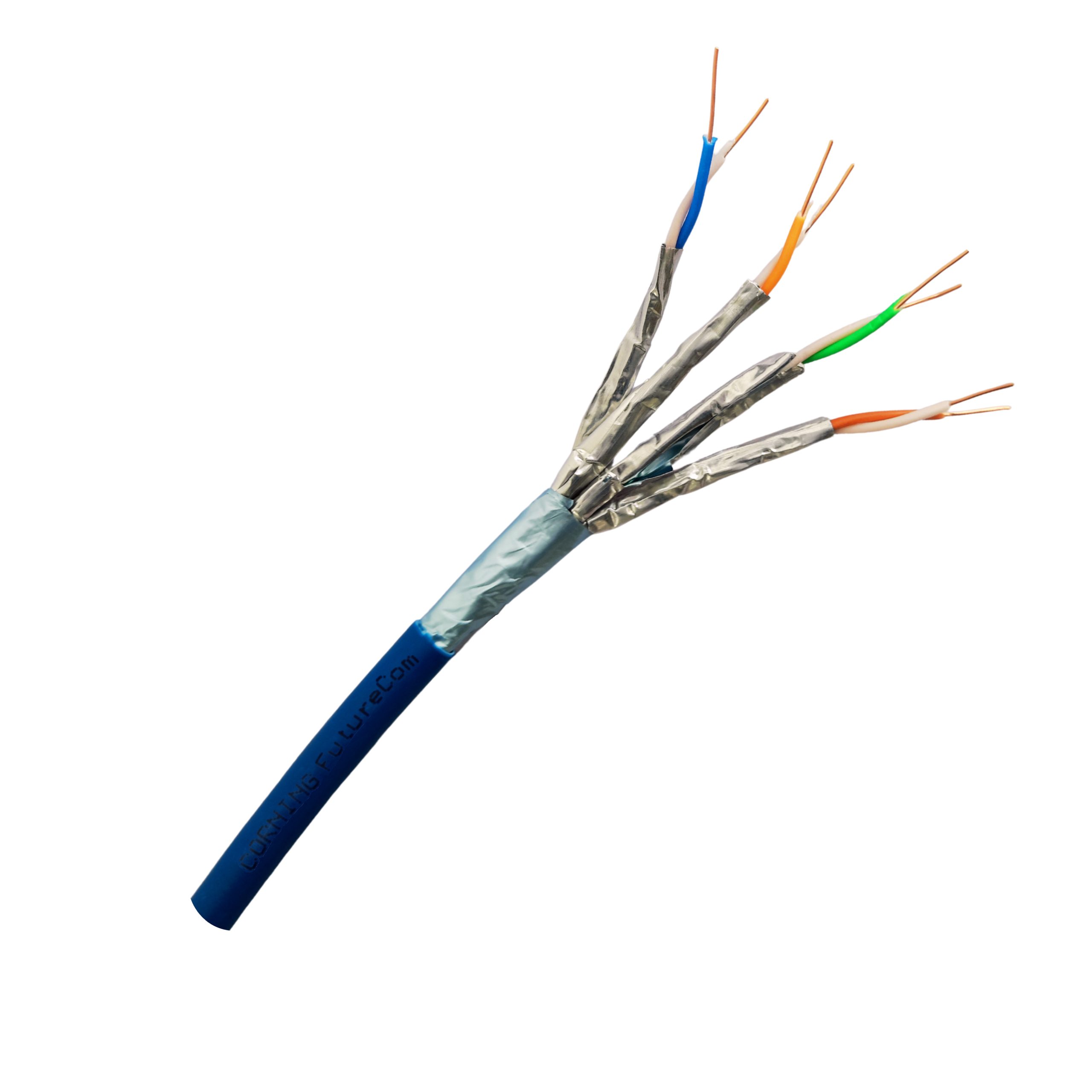

• Overall shielding with with a Allaminated foil and each twisted pair is individually shielded with a Allaminated foil (F/FTP).

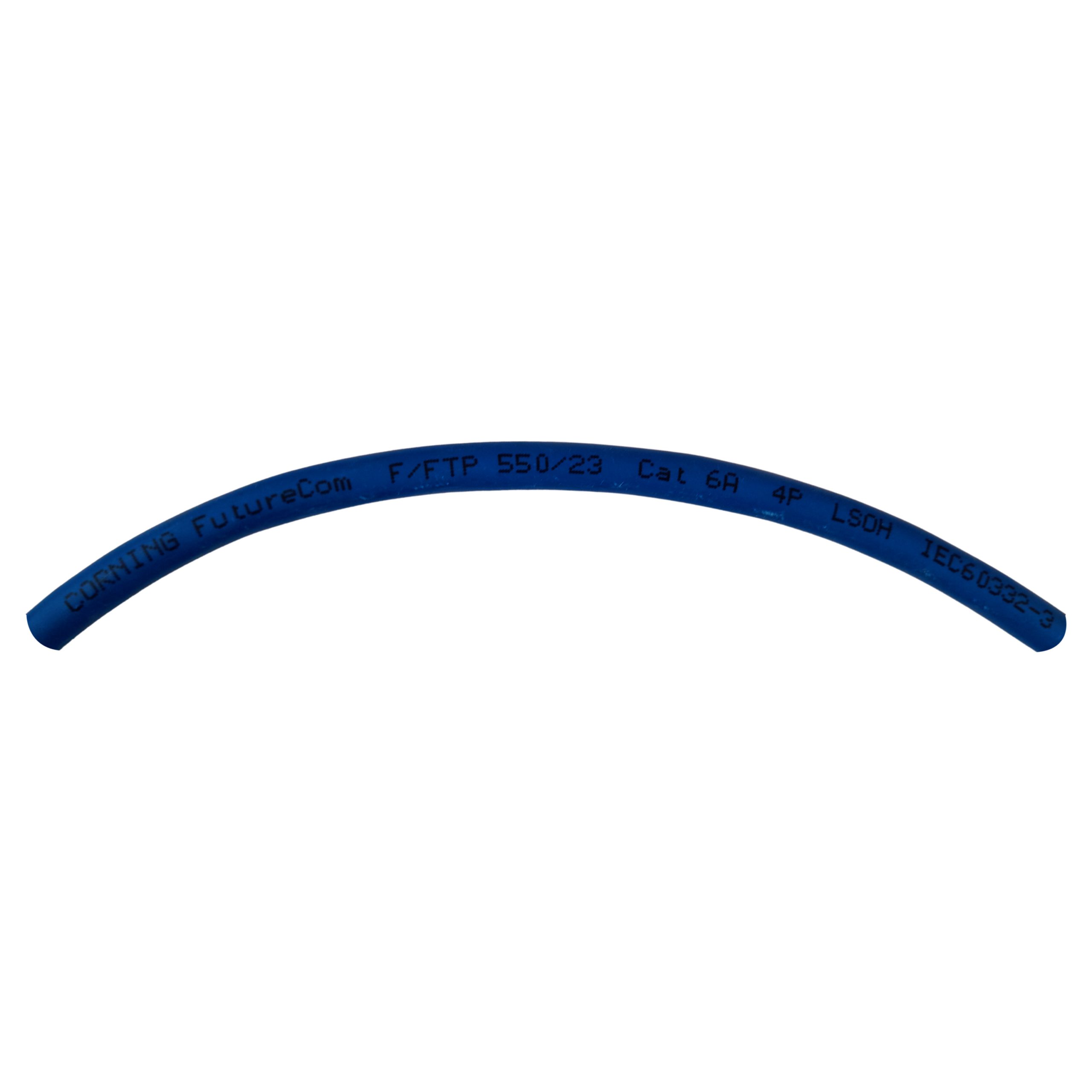

• Length marking on jacket.
• Dca.

General Specifications.

• Category 6A
• Cable type F/FTP
• Halogen-free Yes
• Construction Simplex, 4P
• Reaction to Fire Dca-s1, d1, a1
• Brand Everon®

Standards.

• RoHS Free of hazardous substances according to RoHS 2011/65/EU.
• Approvals and Listings IEC 61156-5, EN 50288-10-1, ISO/IEC 11801 Ed. 2.2, EN 50173-1, ANSI/TIA-568-C.2, IEC 60304.
• Design And Test Criteria Tested and approved for Power over Ethernet applications (PoE/PoE+/4PPoE) according to IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt up to 90W.
• Flame propagation test IEC 60332-1; IEC 60332-3-24.
• Smoke density IEC 61034-2.
• Halogen content test Zero Halogen to IEC 60754-1.
• Level of corrosion Non-corrosive according to IEC 60754-.

Environmental Conditions.

• Temperature range, installation 0°C to 50°C.
• Temperature range, operation-20°C to 60°C.

Cable Design.

• Conductor Copper Wire, AWG 23/1.
• Conductor insulation Halogen-free foam-skin material.
• Twisting 2 cores to a pair.
• Outer jacket material LSZH/FRNC.
• Outer jacket colour Blue.

Mechanical Characteristics.

• Fire load 667MJ/km.
• Nominal outer diameter 6.4mm.
• Min. bend radius installation 8x Cable-Ø.
• Maximum tensile strength 145N.

Electrical Characteristics.

• Conductor resistance unbalance 1%.
• Delay skew 9ns/100 m.
• Max. loop resistance 190Ω/km.
• Propagation delay 420ns/100 m.
• Voltage rating Less than 75 V DC max and less than 50 V ACC max.
• Propagation velocity at >10 MHz (NVP*c) 78%.
• Coupling attenuation 70dB.
• Segregation Class c.
• Insulation Resistance > 5000 MΩ*km.
• Part Number
  CCXEDA-DD047-C001-L6
