General Specifications

• Area/Range of Application 1000Base-T; 2,5GBase-T; 5GBase-T; 10GBase–T/FDDI; ATM
• Category 6A
• Cable Type U/UTP
• Halogen-free Yes
• Legacy Part Number VOL-6AUL
• Brand Everon®
• Third Party Certificate Yes (www.corning.com/emea/en/certificates)

Standards

• Flame Retardance Flame retardant according to IEC 60332-1-2 (single cable)
• RoHS Free of hazardous substances according to RoHS 2011/65/EU
• Design and Test Criteria Compliant with PoE / PoE++ IEEE 802.3af, IEEE 802.3at and
  IEEE 802.3bt
• Halogen content test Low smoke according to IEC 61034
• Level of corrosion Non-corrosive according to IEC 60754-2

Environmental Conditions

• Temperature Range, Installation 0°C to 50°C
• Temperature Range, Operation-20°C to 60°C
• Transport and Indoor Storage Dry environment, no direct sunlight, room temperature ≤ 40 °C

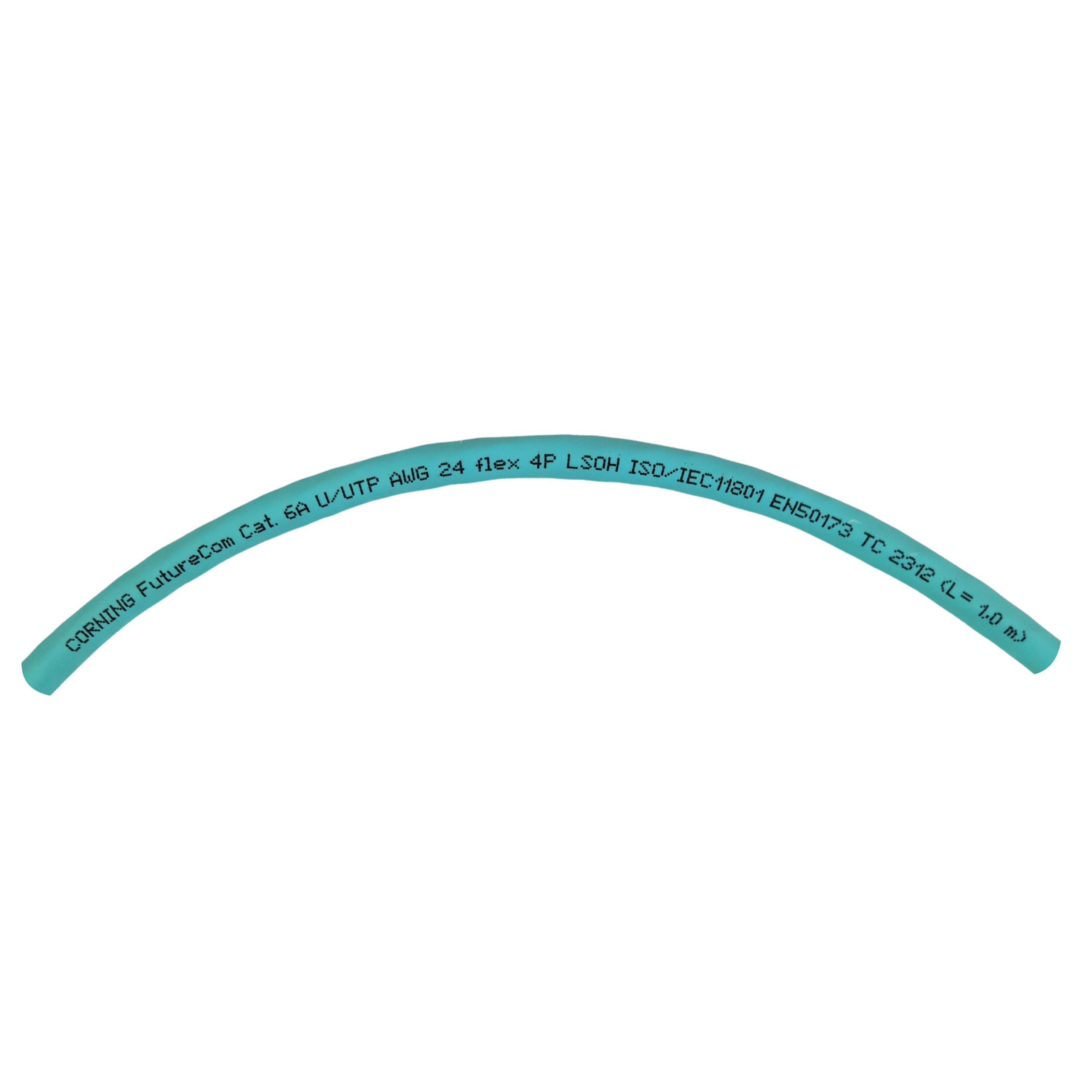

Cable Design

• Conductor Insulation Halogen-free foam-skin material
• Twisting 2 cores to a pair
• Outer Jacket Material LSZH/FRNC
• Outer Jacket Color Aqua

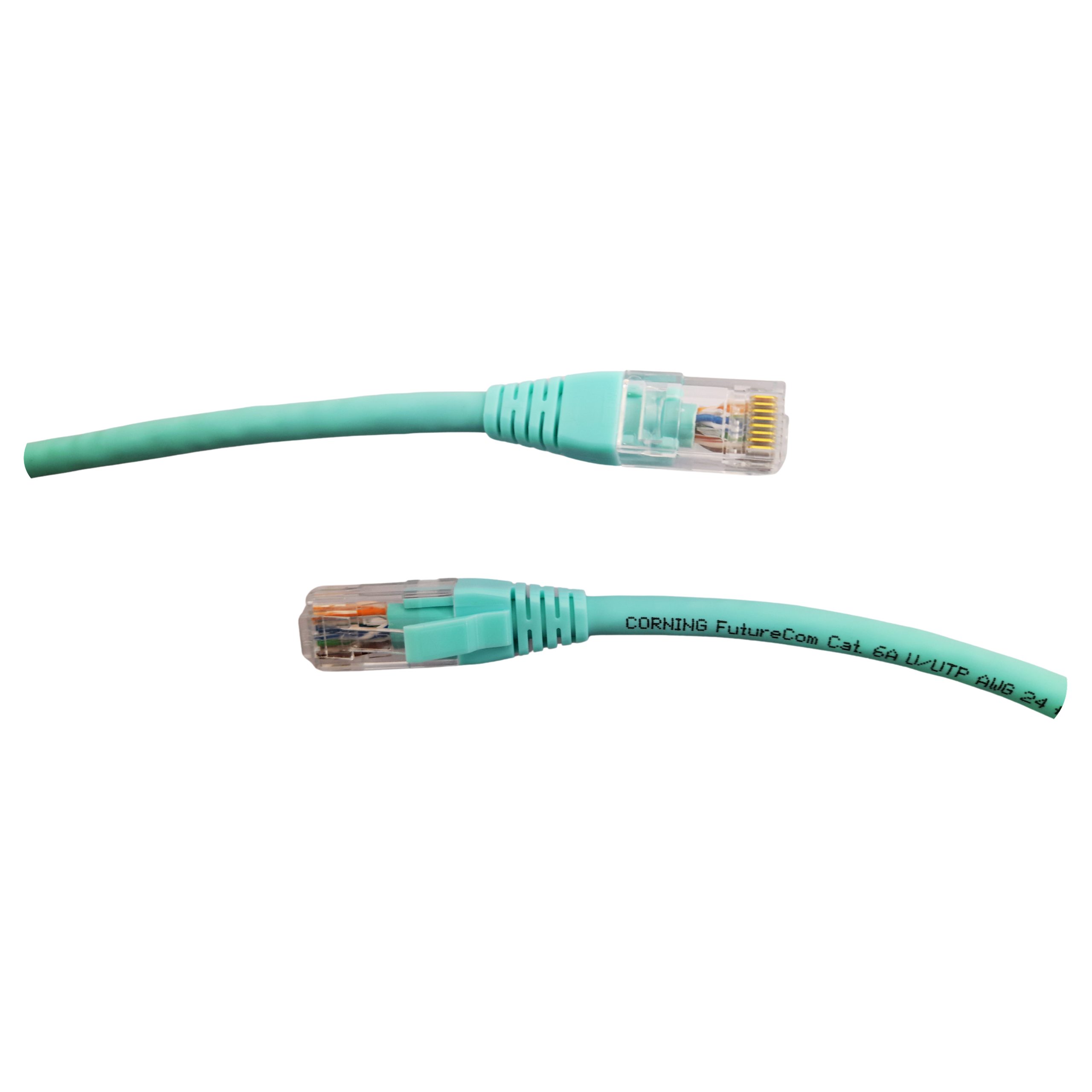

Specifications – Connector A

• Connector Type RJ45 – 8/8
• Durability Cycles 750N/A
• Connector Material Pin gold plated 50µ inch

Specifications – Connector B

• Connector Type RJ45 – 8/8
• Durability Cycles 750N/A
• Connector Material Pin gold plated 50µ inch
