Description

Product features

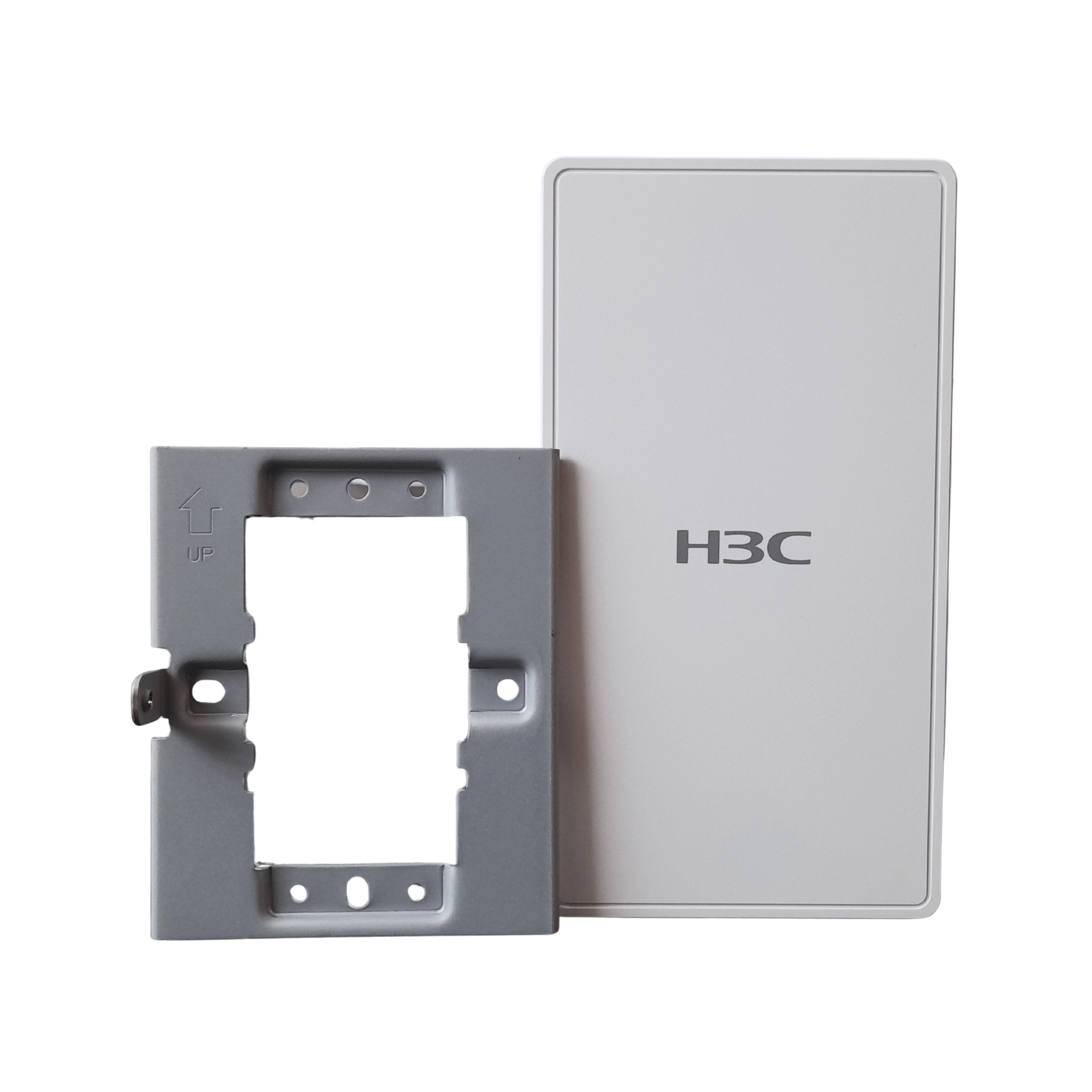

• Install AP in 3 to 5 minutes, 5 steps only
  Wall-Mount series AP uses the international standard wall plate design. Installing an AP is just as simple as
  installing other switching panels. All it takes is 5 steps in less than 5 minutes which effectively accelerates
  the wireless network deployment process.
• Operating mode
  The built-in all-in-one version of the WA6120H AP enables the switching of operating mode as required, to
  save the implementation costs and is usable upon unpacking.
• Fit AP mode
  The WA6120H supports the Fit AP mode and can be managed by the wireless controller equipped with the
  Comware system. In this networking mode, the user can locally manage the APs in batches.

Specifications

• Dimensions (excluding antenna connectors and mounting accessories)
  39×160×86 mm (H x W x D)
• Fixed port
  UpLink：10/100/1000M×1，RJ-45
  LAN：10/100/1000M×4，RJ-45
• PoE
  802.3af
• Local power supply
  54V DC
• Console port
  1
• USB port
  1
• Built-in antenna
  Internal Omni-directional antenna
  3dBi antenna gain @2.4GHz
  4dBi antenna gain @5GHz
• Product Name
  EWP-WA6120H
