Product features

• Multi-type port access
  H3C S1850V2-EI switch series comes with standard full Gigabit electrical ports and optical ports,
  making it a good fit for complex network environments and network expansion
• Simplified Web management
  H3C S1850V2-EI switch series provides convenient and intelligent Web management with visual port
  configuration and easy-to-operate pages.
• Abundant features
  H3C S1850V2-EI switch series supports abundant software features such as VLAN division, 802.3x, link
  aggregation, and IGMP Snooping.
• High reliability
  H3C S1850V2-EI switch series supports STP/RSTP/MSTP link protection, built-in loopback test, cable
  detection, and remote loopback detection.
• Comprehensive security control policies
  H3C S1850V2-EI switch series supports DoS attack detection, ARP anti-attack, TCP attack defense, and
  port security functions.
• Power over Ethernet (PoE+)
  The PWR model of H3C S1850V2-EI switch series supports enhanced power over Ethernet (PoE+) with a
  maximum power supply of 370W for the whole device and a maximum output power of 30W for a
  single port.

Hardware Specifications

• Switching capacity
  20 Gbps
• Forwarding capacity
  15Mpps
• CPU
  1 Core, 800MHz
• Flash/SDRAM
  256MB/512MB
• Dimensions (W × D× H)
  266×161×43.6mm
• Weight
  ≤ 1.5 kg

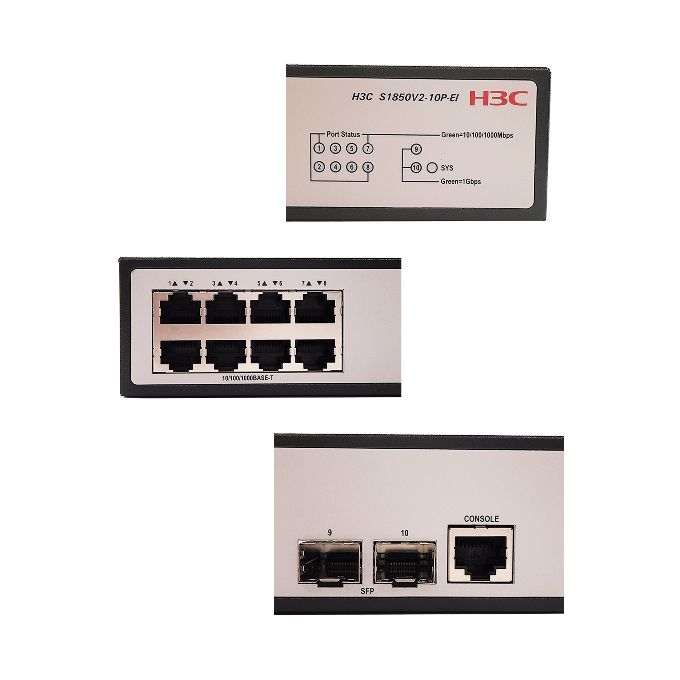

• Management port
  1 console port
• Networking interface
  8
  10/100/1000Bas
  e-T electrical
  ports
  2 1000Base-X
  SFP optical port
• Port Surge
  6KV
