Description

Product Features

• Qualcomm Chip Running Steadily
  It is equipped with the Qualcomm dual-core 1.0 GHz CPU and the professional chip of the standalone network acceleration engine NPU.
  Concurrent processing of 12 network channels enables the network to remain stable when it concurrently processes multiple applications
  (multiple gaming, family gathering, video games, and other complex environments with multiple devices).
• 3000Mbps Wireless Rate
  The concurrent rate of the integrated machine is up to 3,000 Mbps. The wireless rate in 5 GHz is twice that of the router AX1800, delivering
  better user experience.
• 160 MHz, Higher Bandwidth
  It supports 160 MHz bandwidth in 5 GHz, with the channel speed nearly doubled. It is compatible with 20M40M80MHz bandwidth access.
• Efficient Transmission of OFDMA
  The core Wi-Fi 6 technology supports sending upstream and downstream data to a maximum of 8 terminals by one transmission, reducing
  network latency by 36%.
• Smart App Control
  Parents can easily perform Internet access settings
• Free from Inter-Neighbor Wi-Fi Interference
  The BSS Coloring technology enables each terminal to find its own organization, reducing inter-neighbor Wi-Fi interference.
• Anti-Wi-Fi Squatting/Anti-Attack
  IDS prevents external attacks and strangers from cracking into the software network.

Product Specifications

Hardware

• Fixed port

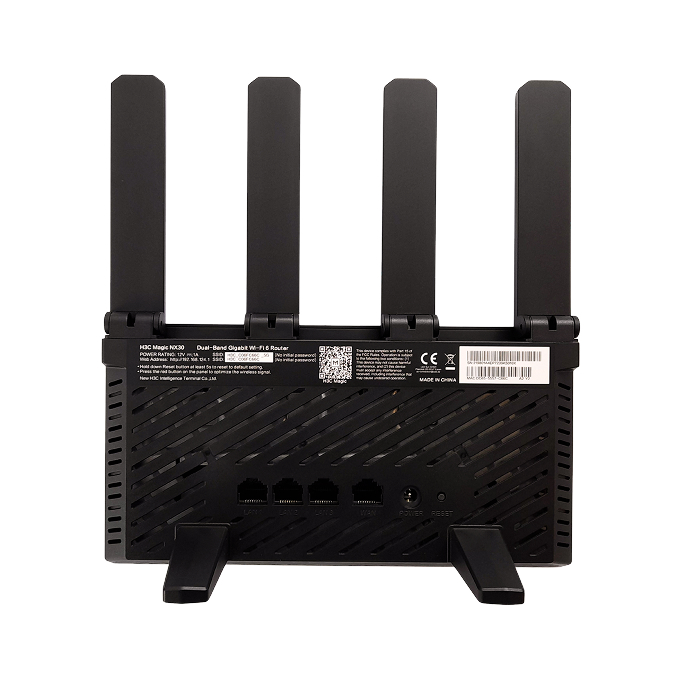

  Four 10/100/1000Base-T Ethernet ports
  Independent reset key, function keys (Mesh, wireless optimization)
• Wireless
  4 external 5dBi high gain omnidirectional antennas
• CPU
  Dual-core 1.0 GHz
• Wireless
  256 MB
• Indicator
  Front LED: system status indicator
• Dimensions (W×D×H)
  210mm x222mm x 64mm
• Power supply
  12V⎓1A
• Cooling method
  Natural cooling
• Certification
  CE
  WEEE
  RoHS

Wireless

• Wireless protocol
  2.4 GHz: 802.11ax/n/g/b
  5 GHz: 802.11ax/ac/n/a
• Spatial flow
  2.4 GHz 2×2 MIMO
  5 GHz 2×2 MIMO
• Wireless bandwidth
  2.4G HT20/HT40
  5G HT20/HT40/HT80/HT160
• Wireless rate
  Dual-frequency concurrency 2,976 Mbps
  2.4 GHz: 574 Mbps & 5 GHz: 2,402 Mbps
• Wireless roaming
  Support of IEEE 802.11k/v
• MU-MIMO
  Upstream and downstream MU-MIMO
• Part Number

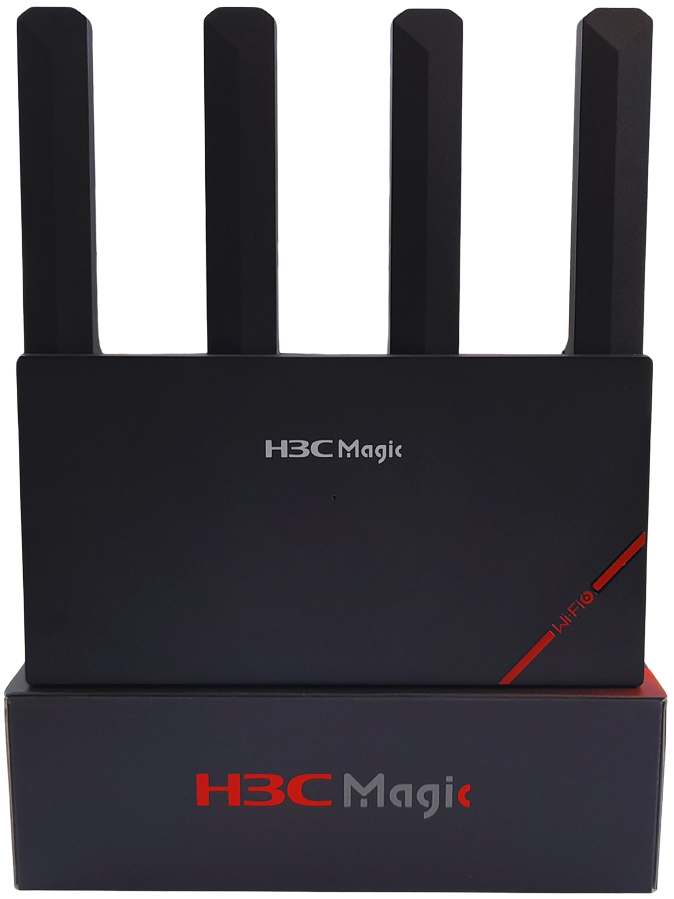

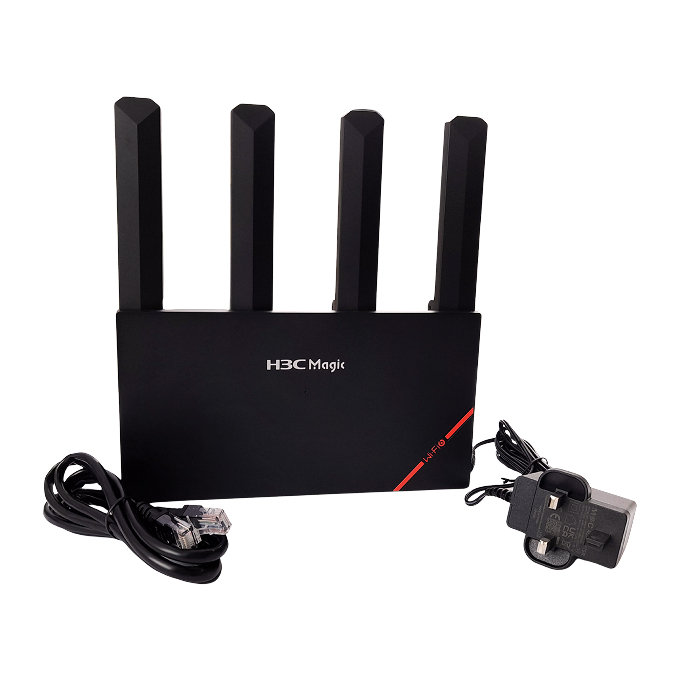

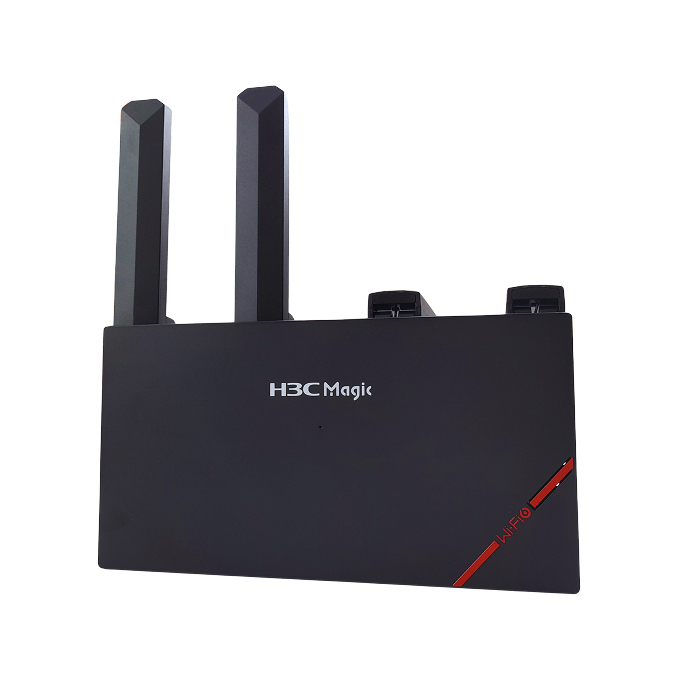

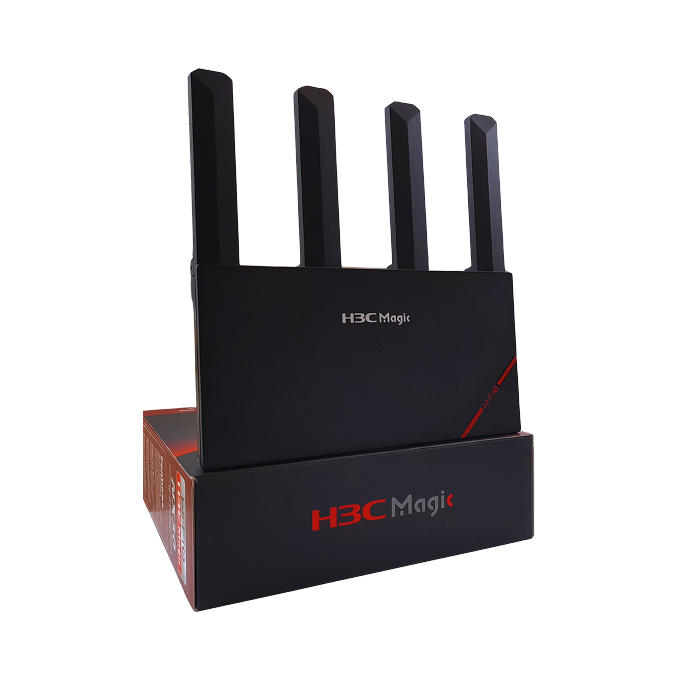

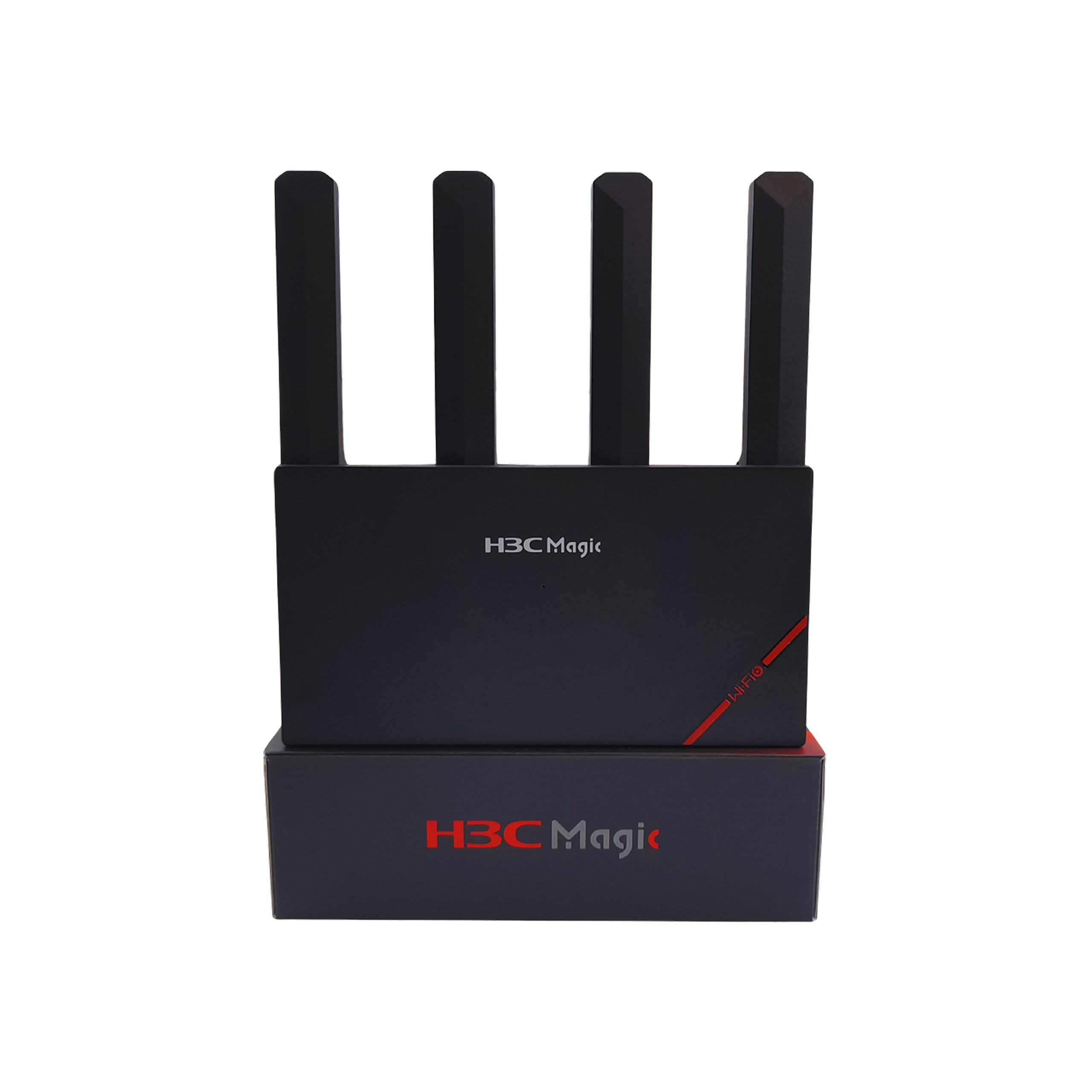

  H3C Magic NX30-EU
