Description

Features and benefits

• Multiple working modes
  The switch can operate in standard, isolation, aggregation, or clone mode and supports one-key switching of the working mode.
• Green
  This switch is energy efficient. Without using fan trays, it is noiseless.
• High performance
  With a buffer sharing architecture, the switch multiplies the available buffering space for each port, greatly enhancing the
  forwarding performance especially in the event of unexpected and sudden traffic bursts.
• High reliability
  Integrated with enterprise-level lightning protection circuit.
  Built with a highly reliable power supply.

Technical specifications

• Dimensions (H × W × D)
  44 × 294 × 179 mm (1.73 × 11.57 × 7.05 in)
• Ports
  16 × 10/100/1000BASE-T copper ports (2 uplink ports)
• Operating mode
  Standard
  Isolation
  Aggregation
  Clone
• MAC address entries
  8K
• Switching capacity
  32 Gbps
• Forwarding capacity
  23.8 Mpps
• Packet caching
  4 Mbit
• Switching mode
  Store-and-forward switching

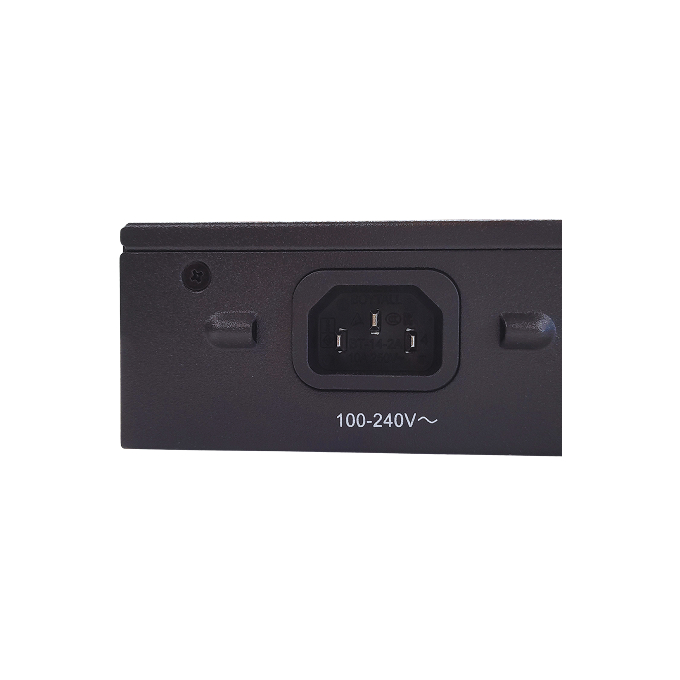

• Power
  100 to 240 V AC
• Auto-MDI/MDIX
  Yes
• Cooling method
  Natural cooling
• Operating temperature/storage temperature
  0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)
• Operating humidity/storage humidity
  5% to 95% RH, noncondensing
• Certifications
  CE,RoHS
• Part Number
  H3C Magic BS216-UK
