Description

Features and benefits

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, and IEEE802.3ab standards.

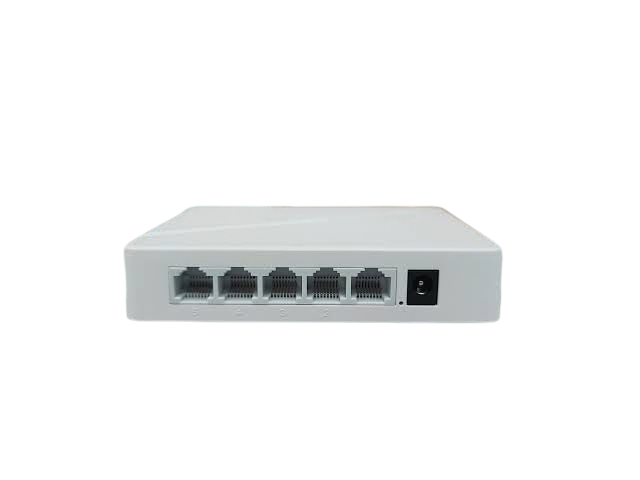

• Provides five 10/100/1000M autosensing Ethernet ports.
• Auto-MDI/MDIX per port.

Technical specifications

• Dimensions (H × W × D)
  27 × 120 × 90 mm (1.06 × 4.72 × 3.54 in)
• Ports
  5 × 10/100/1000BASE-T copper ports
• MAC address entries
  2K
• Switching capacity
  10 Gbps
• Forwarding capacity
  7.4 Mpps
• Packet buffering
  1 Mbit
• Power
  5 V DC, 0.6 A
• Auto-MDI/MDIX
  Yes
• Cooling method
  Natural cooling
• Weight
  ≤ 0.2 kg (0.44 lb)
• Operating temperature/storage
  0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)
• Storage/operating humidity
  5% to 95% RH, noncondensing
• Certifications
  CE,RoHS
• MTBF
  > 50000 H
• Installation method
  Desktop-mount
