Description

Features and benefits

H3C Magic BS208 delivers the following features and benefits:

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3x, and IEEE802.3ab standards.

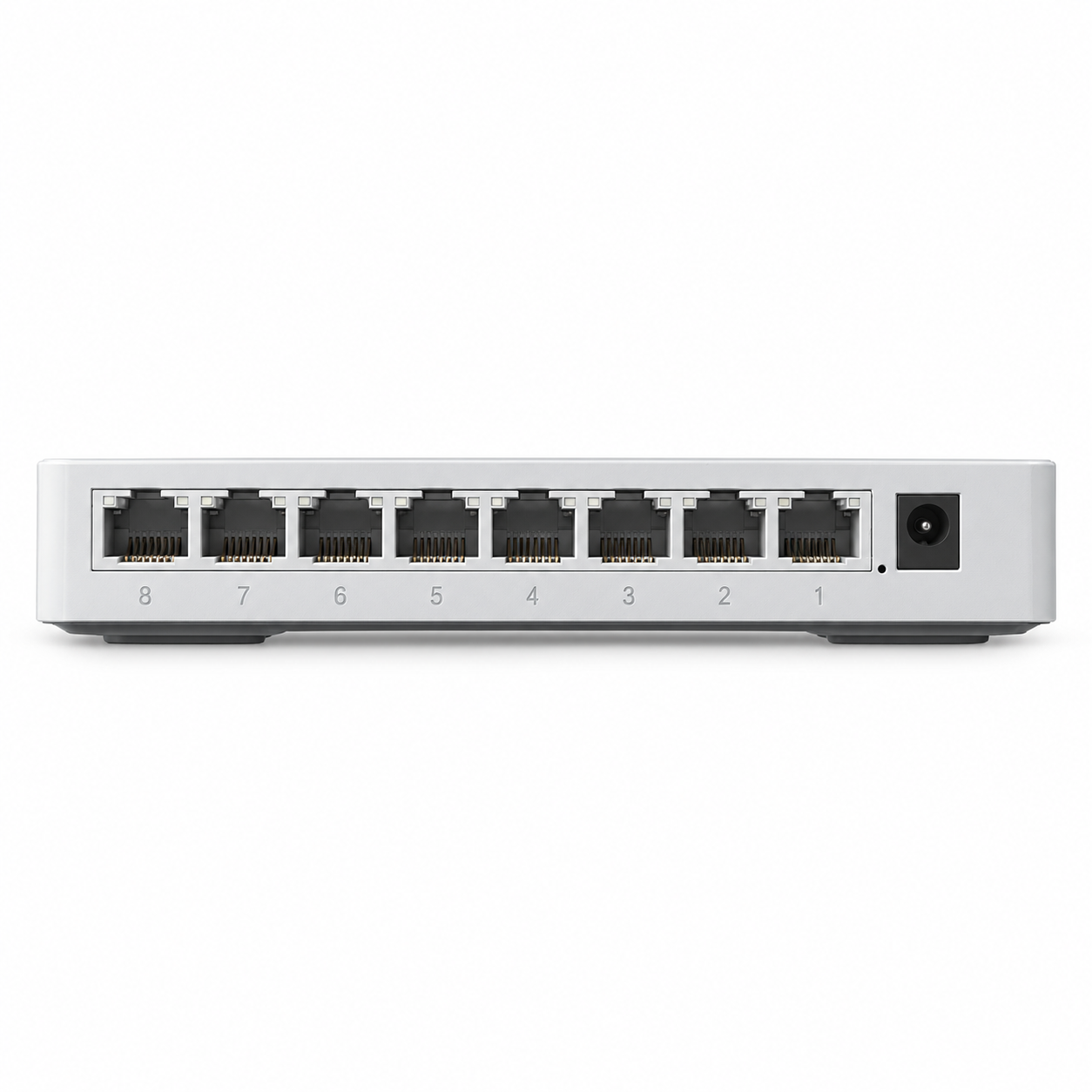

• Provides eight 10/100/1000M autosensing Ethernet ports.
• Auto-MDI/MDIX per port.

Technical specifications

• Dimensions (H × W × D)
  27 × 156 × 105 mm (1.06 × 6.14 × 4.13 in)
• Ports
  8 × 10/100/1000BASE-T copper ports
• MAC address entries
  4K
• Switching capacity
  16 Gbps
• Forwarding capacity
  11.9 Mpps
• Packet buffering
  1.5 Mbit
• Power
  12 V DC, 0.5 A
• Auto-MDI/MDIX
  Yes
• Cooling method
  Natural cooling
• Weight
  ≤ 0.2 kg (0.44 lb)
• Operating temperature/storage
  temperature
  0°C to 40°C (32°F to 104°F)/–40°C to +70°C (–40°F to +158°F)
• Storage/operating humidity
  5% to 95% RH, noncondensing
• Product Name
  H3C Magic BS208-UK
