Description

GENERAL DATA

• Output rated power 6000VA /6000W
• Output power factor 1
• Topology Online double conversion
• Internal Batteries 2U: N.A.; 4U: YES
• Parallel Configuration Up to 4 units

INPUT

• Voltage range 110~280 Vac (Single + G)
• Frequency range 45-70Hz (auto sensing)
• Input power factor ≥ 0.99 @ 100% linear load
• Input Current Distorsion ≤ 3% (full load)

OUTPUT

• Output voltage 200/208/220/230/240 Vac (Single + G)
• Output voltage distortion <1%@100% Linear Load; <3% @100% Non-Linear Load
• Output voltage regulation ±1%
• Frequency range ±1Hz or ±3Hz (selectable)
• Crest factor ‘3:1
• Output waveform Pure sine wave
• Overload Capacity Inverter
  <105%continuous
  105-125% for 600 to 30 seconds transfer to bypass.
  125-150% for 30 seconds to immediately transfer
  to bypass.

EFFICIENCY

• Line Mode 94%
• High Efficiency Mode ≥98%

BATTERY

• Type VRLA Maintenance Battery
• Charging Current 2 A
• Recharge time (to 90%) 4 hours
• Part Number
  00-00436
• Product Name

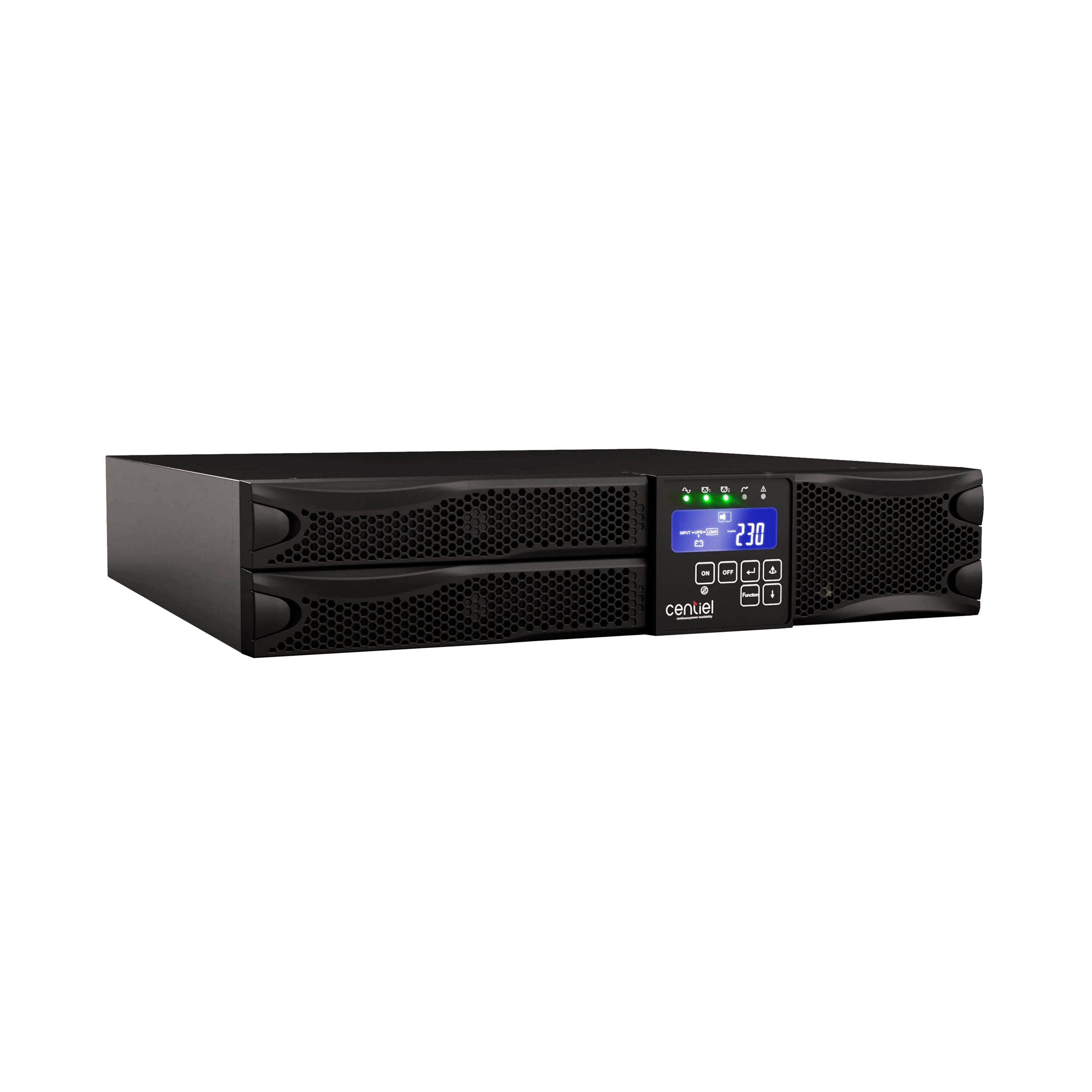

  UPS-EP006-11-E-2U
